AE92-ACMZF (1987)

Toyota Corolla Levin

Production May 1987 - Jun 1991
Engine 4AGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )

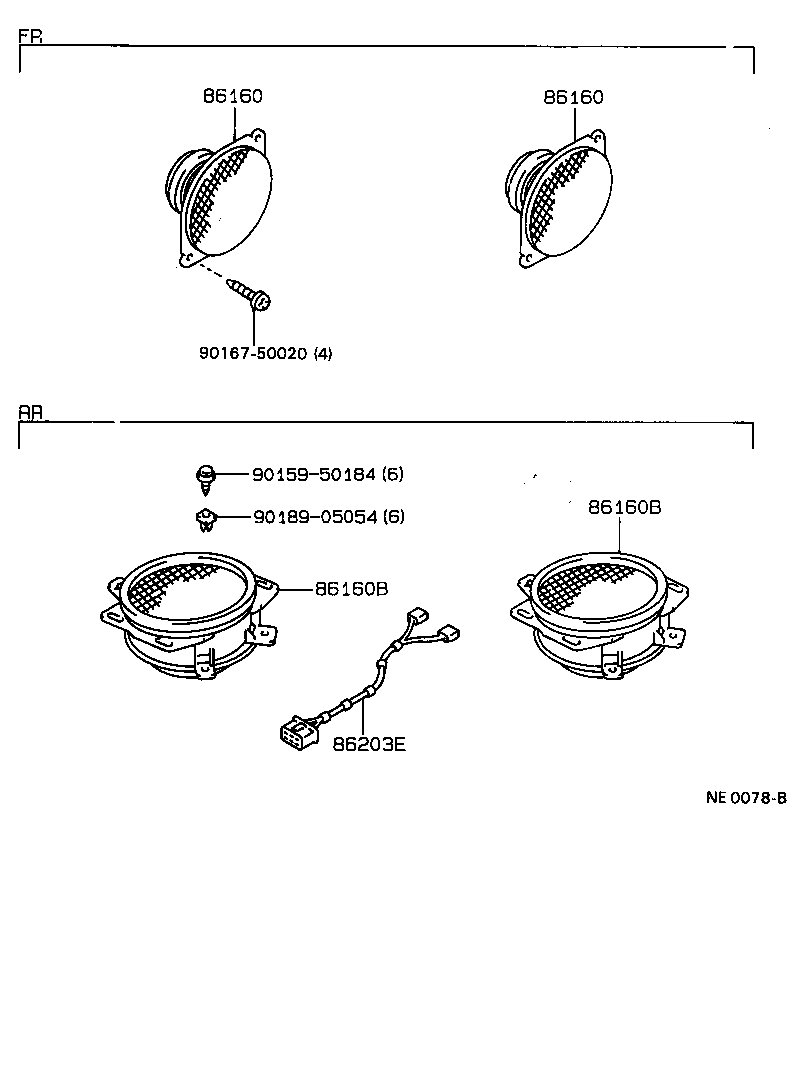

Click highlighted areas on diagram

diagram 86160 86160 86160B 86160B 86203E 9015950184 9016750020 9018905054
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-12290

AE9#

PIONEER

 1
86160-12280

AE9#..GTAPX,GTV,GTZ,ZI

TEN

 2
86160-12280

AE9#..G,GT,L

TEN

 1
86160-12290

AE9#..G,GT,L

PIONEER

 1
86160-12290

AE9#..GT,GTAPX,GTZ,ZS

PIONEER

 2
86160-12280

AE9#..GT,GTAPX,GTZ,ZS

TEN

 2
86160-12280

AE92..GT

TEN

 2
86160-12280

AE9#..G,GT,GTV,GTZ,L

TEN

 1
86160 - SPEAKER ASSY, FRONT NO.1
86160-12290

AE9#

PIONEER

 1
86160-12280

AE9#..GTAPX,GTV,GTZ,ZI

TEN

 2
86160-12280

AE9#..G,GT,L

TEN

 1
86160-12290

AE9#..G,GT,L

PIONEER

 1
86160-12290

AE9#..GT,GTAPX,GTZ,ZS

PIONEER

 2
86160-12280

AE9#..GT,GTAPX,GTZ,ZS

TEN

 2
86160-12280

AE92..GT

TEN

 2
86160-12280

AE9#..G,GT,GTV,GTZ,L

TEN

 1
86160B - SPEAKER ASSY, REAR
86160-12221

AE91..CBR,EFIS;AE9#..(4FC,5F)..(EFI,SPC)

 2
86160B - SPEAKER ASSY, REAR
86160-12221

AE91..CBR,EFIS;AE9#..(4FC,5F)..(EFI,SPC)

 2
86203E - WIRE, STEREO COMPONENT SPEAKER, NO.1
86203-12090

AE9#

 1
Common parts
90159-50184
90167-50020
90189-05054
