AE92-ACMZF (1987)

Toyota Corolla Levin

Production May 1987 - Jun 1991
Engine 4AGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )

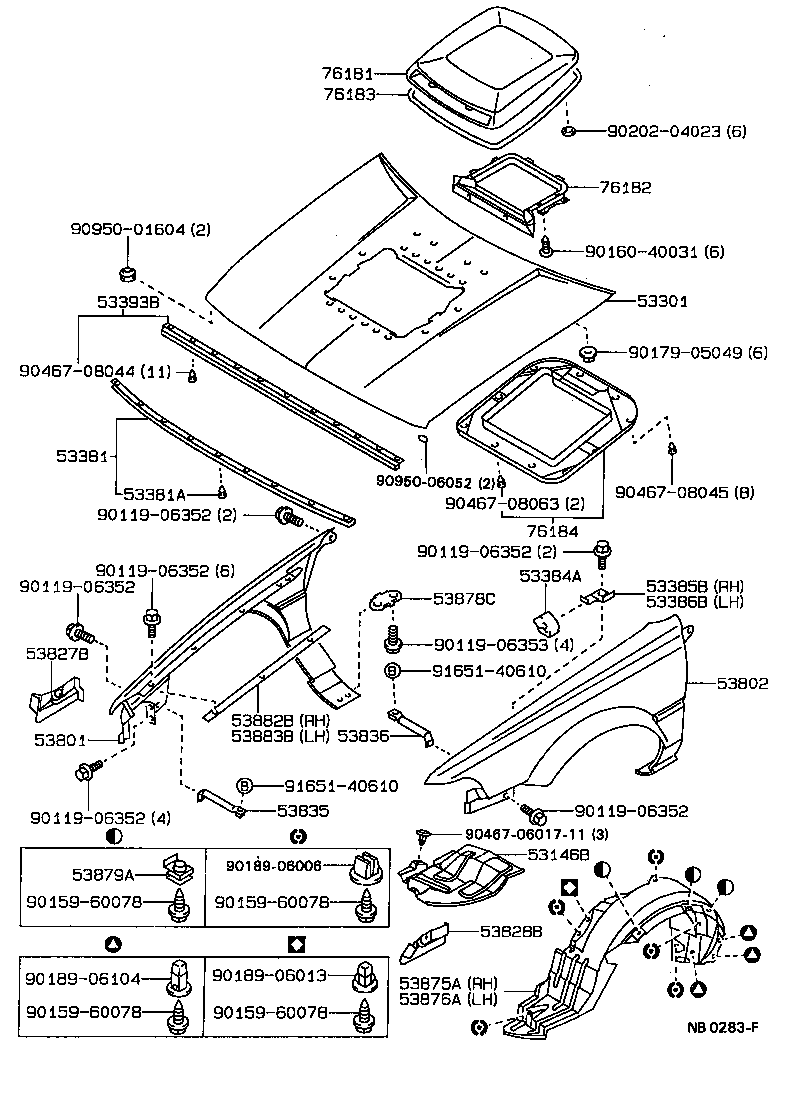

Click highlighted areas on diagram

diagram 53146B 53301 53381 53381A 53384A 53385B 53386B 53393B 53801 53802 53827B 53828B 53835 53836 53875A 53876A 53878C 53879A 53882B 53883B 76181 76182 76183 76184 9011906352 9011906352 9011906352 9011906352 9011906352 9011906352 9011906353 9015960078 9015960078 9015960078 9015960078 9016040031 9017905049 9018906006 9018906013 9018906104 9020204023 904670601711 9046708044 9046708045 9046708063 9095001604 9095006052 9165140610 9165140610
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-12600

AE9#..CBR,EFI,EFIS

 1
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-12140

AE9#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08011

AE9#

ｶﾝﾚｲﾁ ｼﾖｳ

 9
53384A - BUMPER, FENDER TO HOOD
53384-14010

AE9#

 2
53385B - BRACKET, FENDER TO HOOD BUMPER, RH
53385-12040

AE9#

 1
53386B - BRACKET, FENDER TO HOOD BUMPER, LH
53386-12040

AE9#

 1
53393B - PROTECTOR, HOOD, FRONT
53393-12010

AE9#

 1
53801 - FENDER SUB-ASSY, FRONT RH
53801-1E530

AE9#

ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-)

 1
53801-1E530

AE9#..G,GTAPX,GTV,GTZ,ZI

ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-)

 1
53801-1E530

AE92..GT

ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-)

 1
53801-1E520

AE9#

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-1E400

AE9#

 1
53802-1E410

AE9#..G,GTAPX,GTV,GTZ,ZI

ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-)

 1
53802-1E410

AE9#

ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-)

 1
53802-1E410

AE92..GT

ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-)

 1
53827B - PROTECTOR, FRONT FENDER SIDE PANEL
53827-12020

AE9#

 1
53828B - PROTECTOR, FRONT FENDER SIDE PANEL, LH
53828-12020

AE9#

 1
53835 - BRACE, FRONT FENDER TO EXTENSION, RH
53835-12060

AE9#

 1
53836 - BRACE, FRONT FENDER TO EXTENSION, LH
53835-12060

AE9#

 1
53875A - LINER, FRONT FENDER, RH
53875-12160

AE9#

 1
53875-12190

AE9#

 1
53876A - LINER, FRONT FENDER, LH
53876-12150

AE9#

 1
53876-12180

AE9#

 1
53878C - SPACER, FRONT FENDER
53878-20030

AE9#

 2
53879A - RETAINER, FRONT FENDER LINER
53879-14010

AE9#

 4
53882B - SEAL, FRONT FENDER, RH
53882-12080

AE9#

 1
53883B - SEAL, FRONT FENDER, LH
53882-12080

AE9#

 1
Common parts
90119-06352
90119-06353
90159-60078
90160-40031
90179-05049
90189-06006
90189-06013
90189-06104
90202-04023
90467-0601711
90467-08044
90467-08045
90467-08063
90950-01604
90950-06052
91651-40610
