AE92-ACMXR (1987)
Toyota Corolla Levin

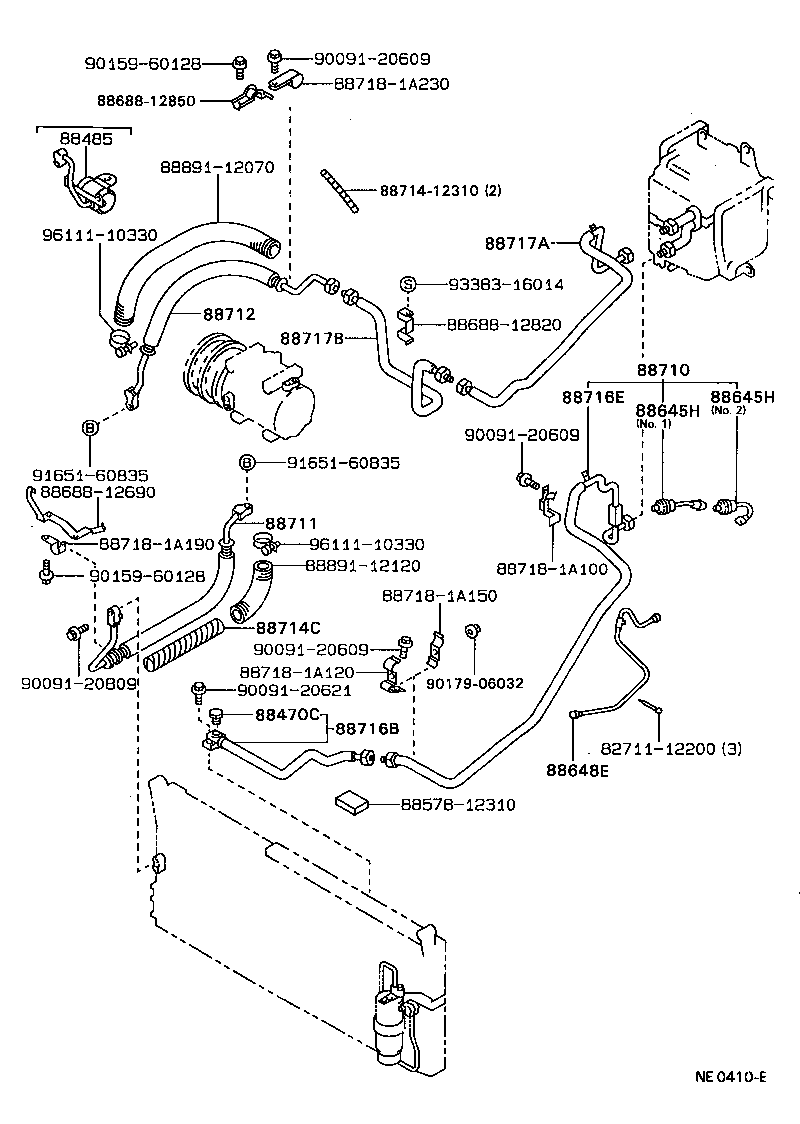

ILLUST NO. 1 OF 3(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-12380 |
AE9# |
1 | ||
| 88460-12380 |
AE9#..G,GT,GTAPX,GTV,GTZ,ZI |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-12040 |
AE92;AE91..3FC,5F;AE91..4FC..EFI |
1 | ||
| 88463-12041 |
AE92;AE91..5F;AE91..ATM..(EFI,EFIS) |
1 | ||
| 88463-12040 |
AE92;AE91..5F;AE91..4FC..EFI |
1 | ||
| 88463-12041 |
AE92;AE91..4FC..EFI;AE91..5F..(G,ZI) |
1 | ||
| 88463-12040 |
AE9# |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12080 |
AE9#..G,GT,GTAPX,GTV,GTZ,ZI |
2 | ||
| 88467-12081 |
AE92;AE91..4FC..EFI;AE91..5F..(G,ZI) |
2 | ||
| 88467-12081 |
AE92;AE91..5F;AE91..ATM..(EFI,EFIS) |
2 | ||
| 88467-12080 |
AE92;AE91..4FC..EFI;AE91..5F..(G,ZI) |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12080 |
AE9#..G,GT,GTAPX,GTV,GTZ,ZI |
2 | ||
| 88467-12081 |
AE92;AE91..4FC..EFI;AE91..5F..(G,ZI) |
2 | ||
| 88467-12081 |
AE92;AE91..5F;AE91..ATM..(EFI,EFIS) |
2 | ||
| 88467-12080 |
AE92;AE91..4FC..EFI;AE91..5F..(G,ZI) |
2 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-14070 |
AE9#..G,GTZ,ZI NO.1 |
4 | ||
| 88467-20040 |
AE92..SPC NO.2 |
4 | ||
| 88467-20040 |
AE9#..G,GT,GTAPX,GTV,ZI NO.2 |
4 | ||
| 88467-14070 |
AE92..GT,GTV NO.1 |
4 | ||
| 88467-20040 |
AE92..SPC NO.2 |
4 | ||
| 88467-14070 |
AE91..ZI;AE9#..CBR,EFIS,SPC NO.1 |
4 | ||
| 88467-20040 |
AE92..GT,GTV NO.2 |
4 | ||
| 88467-14070 |
AE92..GT NO.1 |
6 | ||
| 88467-20040 |
AE9#..GTAPX,GTZ,ZS NO.2 |
4 | ||
| 88467-20040 |
AE92..GT NO.2 |
4 | ||
| 88467-14070 |
AE92..GT NO.1 |
6 | ||
| 88467-20040 |
AE9#..G,GT,L NO.2 |
4 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-14070 |
AE9#..G,GTZ,ZI NO.1 |
4 | ||
| 88467-20040 |
AE92..SPC NO.2 |
4 | ||
| 88467-20040 |
AE9#..G,GT,GTAPX,GTV,ZI NO.2 |
4 | ||
| 88467-14070 |
AE92..GT,GTV NO.1 |
4 | ||
| 88467-20040 |
AE92..SPC NO.2 |
4 | ||
| 88467-14070 |
AE91..ZI;AE9#..CBR,EFIS,SPC NO.1 |
4 | ||
| 88467-20040 |
AE92..GT,GTV NO.2 |
4 | ||
| 88467-14070 |
AE92..GT NO.1 |
6 | ||
| 88467-20040 |
AE9#..GTAPX,GTZ,ZS NO.2 |
4 | ||
| 88467-20040 |
AE92..GT NO.2 |
4 | ||
| 88467-14070 |
AE92..GT NO.1 |
6 | ||
| 88467-20040 |
AE9#..G,GT,L NO.2 |
4 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-14070 |
AE9#..G,GTZ,ZI NO.1 |
4 | ||
| 88467-20040 |
AE92..SPC NO.2 |
4 | ||
| 88467-20040 |
AE9#..G,GT,GTAPX,GTV,ZI NO.2 |
4 | ||
| 88467-14070 |
AE92..GT,GTV NO.1 |
4 | ||
| 88467-20040 |
AE92..SPC NO.2 |
4 | ||
| 88467-14070 |
AE91..ZI;AE9#..CBR,EFIS,SPC NO.1 |
4 | ||
| 88467-20040 |
AE92..GT,GTV NO.2 |
4 | ||
| 88467-14070 |
AE92..GT NO.1 |
6 | ||
| 88467-20040 |
AE9#..GTAPX,GTZ,ZS NO.2 |
4 | ||
| 88467-20040 |
AE92..GT NO.2 |
4 | ||
| 88467-14070 |
AE92..GT NO.1 |
6 | ||
| 88467-20040 |
AE9#..G,GT,L NO.2 |
4 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-14070 |
AE9#..G,GTZ,ZI NO.1 |
4 | ||
| 88467-20040 |
AE92..SPC NO.2 |
4 | ||
| 88467-20040 |
AE9#..G,GT,GTAPX,GTV,ZI NO.2 |
4 | ||
| 88467-14070 |
AE92..GT,GTV NO.1 |
4 | ||
| 88467-20040 |
AE92..SPC NO.2 |
4 | ||
| 88467-14070 |
AE91..ZI;AE9#..CBR,EFIS,SPC NO.1 |
4 | ||
| 88467-20040 |
AE92..GT,GTV NO.2 |
4 | ||
| 88467-14070 |
AE92..GT NO.1 |
6 | ||
| 88467-20040 |
AE9#..GTAPX,GTZ,ZS NO.2 |
4 | ||
| 88467-20040 |
AE92..GT NO.2 |
4 | ||
| 88467-14070 |
AE92..GT NO.1 |
6 | ||
| 88467-20040 |
AE9#..G,GT,L NO.2 |
4 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88471-16040 |
AE9# L=187 |
1 | ||
| 88471-12020 |
AE9#..G,GT,GTAPX,GTV,GTZ,ZI L=167 |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88473-12040 |
AE9#..G,GT,GTAPX,GTV,GTZ,ZI |
1 | ||
| 88473-12070 |
AE9# |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02002 |
AE9# 300G |
1 | ||
| 90986-02004 |
AE9#..G,GT,GTAPX,GTV,GTZ,ZI 250G |
1 | ||
| 90986-02001 |
AE9#..G,GT,GTAPX,GTV,GTZ,ZI 400G |
2 | ||
| 90986-02001 |
AE9#..CBR,EFI,SPC 400G |
1 | ||
| 90986-02004 |
AE9# 250G |
1 | ||
| 90986-02001 |
AE92 400G |
1 | ||
| 90986-02001 |
AE9#..G,GT,GTAPX,GTV,GTZ,ZI 400G |
1 | ||
| 90986-02004 |
AE9# 250G |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88726-12240 |
AE9#..G,GT,GTAPX,GTV,GTZ,ZI |
1 | ||
| 88726-12340 |
AE9# |
1 | ||
| Common parts | ||||
| 88578-12120 | ||||
| 88688-12590 | ||||
| 88688-12600 | ||||
| 88688-12770 | ||||
| 90091-20609 | ||||
| 90091-20613 | ||||
| 90091-20621 | ||||
| 90091-20809 | ||||
| 90119-06336 | ||||
| 90159-60128 | ||||
| 90179-06032 | ||||
ILLUST NO. 3 OF 3(8705- )AE92
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88470C - BOLT, FUSE | ||||
| 88475-12020 |
AE92..GTAPX,GTZ |
1 | ||
| 88475-12020 |
AE9# |
1 | ||
| 88475-12020 |
AE92..GT,GTV |
1 | ||
| 88485 - MUFFLER | ||||
| 88485-12020 |
AE9#..G,GT,GTAPX,GTV,ZI |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-12050 |
AE9# NO.1 |
1 | ||
| 88645-32020 |
AE9# NO.2 |
1 | ||
| 88645-32020 |
AE9#..G,GT,GTAPX,GTV,GTZ,ZI NO.2 |
1 | ||
| 88645-12050 |
AE9#..G,GT,GTAPX,GTV,GTZ,ZI NO.1 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-12050 |
AE9# NO.1 |
1 | ||
| 88645-32020 |
AE9# NO.2 |
1 | ||
| 88645-32020 |
AE9#..G,GT,GTAPX,GTV,GTZ,ZI NO.2 |
1 | ||
| 88645-12050 |
AE9#..G,GT,GTAPX,GTV,GTZ,ZI NO.1 |
1 | ||
| 88648E - WIRING, COOLER | ||||
| 88648-12410 |
AE9# |
1 | ||
| 88648-12410 |
AE9#..G,GT,GTAPX,GTV,GTZ,ZI |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88706-12040 |
AE9# |
1 | ||
| 88706-12040 |
AE9#..G,GT,GTAPX,GTV,GTZ,ZI |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-12520 |
AE92..SPC |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-12700 |
AE92..SPC |
1 | ||
| 88714C - INSULATOR, COOLER REFRIGERANT HOSE, NO.1 | ||||
| 88714-95402 |
AE92..GT |
1 | ||
| 88714-95402 |
AE92 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88726-12280 |
AE9# |
1 | ||
| 88726-12280 |
AE9#..G,GT,GTAPX,GTV,GTZ,ZI |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88726-12260 |
AE9# |
1 | ||
| 88726-12260 |
AE9#..G,GT,GTAPX,GTV,GTZ,ZI |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-12400 |
AE9#..G,GT,GTAPX,GTV,GTZ,ZI |
1 | ||
| 88717-12400 |
AE9# |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-12490 |
AE9#..G,GT,GTAPX,GTV,GTZ,ZI |
1 | ||
| 88717-12490 |
AE9# |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 88578-12310 | ||||
| 88688-12690 | ||||
| 88688-12820 | ||||
| 88688-12850 | ||||
| 88714-12310 | ||||
| 88718-1A100 | ||||
| 88718-1A120 | ||||
| 88718-1A150 | ||||
| 88718-1A190 | ||||
| 88718-1A230 | ||||
| 88891-12070 | ||||
| 88891-12120 | ||||
| 90091-20609 | ||||
| 90091-20621 | ||||
| 90091-20809 | ||||
| 90159-60128 | ||||
| 90179-06032 | ||||
| 91651-60835 | ||||
| 93383-16014 | ||||
| 96111-10330 | ||||
ILLUST NO. 2 OF 3(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88453A - FAN, COOLING | ||||
| 88453-12050 |
AE9# |
1 | ||
| 88453-12050 |
AE9#..G,GT,GTAPX,GTV,GTZ,ZI |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-12100 |
AE9#..G,GT,GTAPX,GTV,GTZ,ZI |
1 | ||
| 88454-12100 |
AE9# |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-12120 |
AE9#..G,GT,GTAPX,GTV,GTZ,ZI |
1 | ||
| 88550-12120 |
AE9# |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-12170 |
AE92;AE91..5F;AE91..ATM..(EFI,EFIS) |
1 | ||
| 88590-12170 |
AE9#..G,GT,GTAPX,GTV,GTZ,ZI |
1 | ||
| 88590-12170 |
AE92;AE91..4FC..EFI;AE91..5F..(G,ZI) |
1 | ||
| 88596C - PLATE, CAUTION, NO.2 | ||||
| 88723-12020 |
AE92;AE91..5F;AE91..4FC..EFI |
1 | ||
| 88723-12020 |
AE9# |
1 | ||
| Common parts | ||||
| 88467-14070 | ||||
| 88467-20040 | ||||
| 88467-30270 | ||||
| 88688-12780 | ||||
| 88892-12180 | ||||
| 90099-04376 | ||||
| 90119-06336 | ||||
| 90159-60128 | ||||
| 90179-06032 | ||||
