AE92-ACMXR (1987)

Toyota Corolla Levin

Production May 1987 - Jun 1991
Engine 4AGZE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )

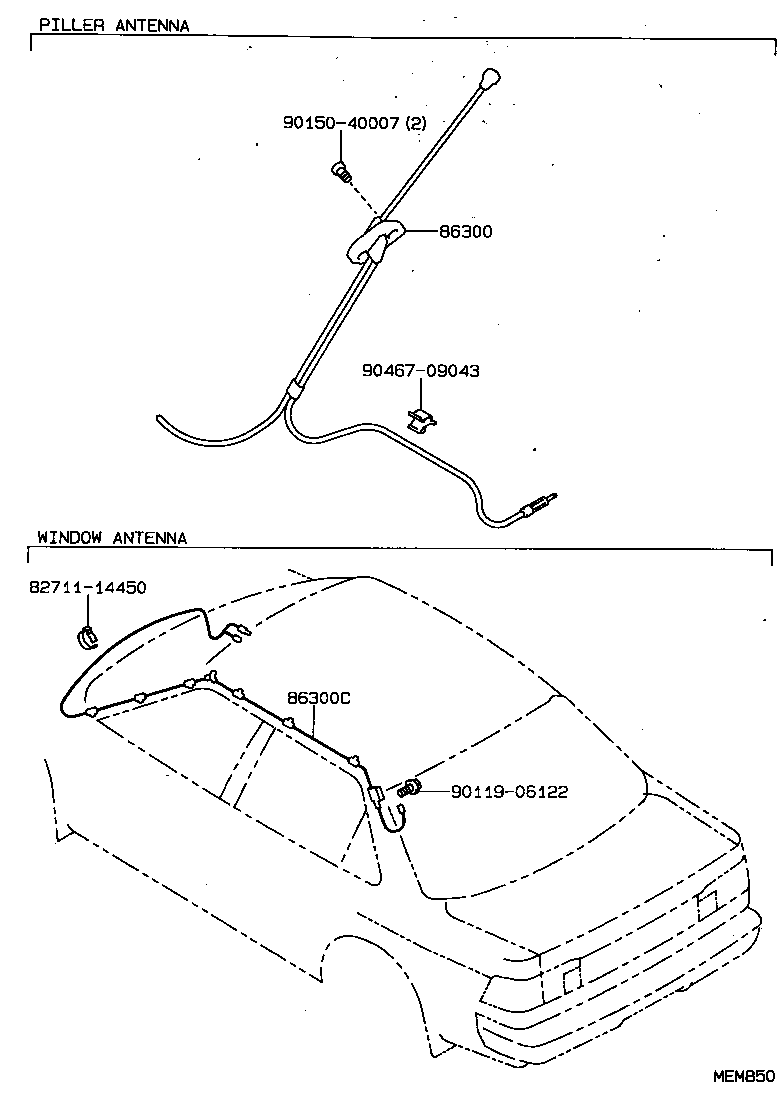

Click highlighted areas on diagram

diagram 8271114450 86300 86300C 9011906122 9015040007 9046709043
Part # Description Qty Price
86300 - ANTENNA ASSY, W/HOLDER
86300-12300

AE9#..G,GT,L

 1
86300-12300

AE9#

 1
86300C - ANTENNA ASSY, AMPLIFIER, NO.2
86300-12350

AE9#..GTAPX,GTZ,ZS

ｱﾘ(ｻﾝﾙ-ﾌ)

 1
86300-12340

AE9#..GTAPX,GTZ,ZS

 1
Common parts
82711-14450
90119-06122
90150-40007
90467-09043
