AE92-ACMXR (1987)

Toyota Corolla Levin

Production May 1987 - Jun 1991
Engine 4AGZE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

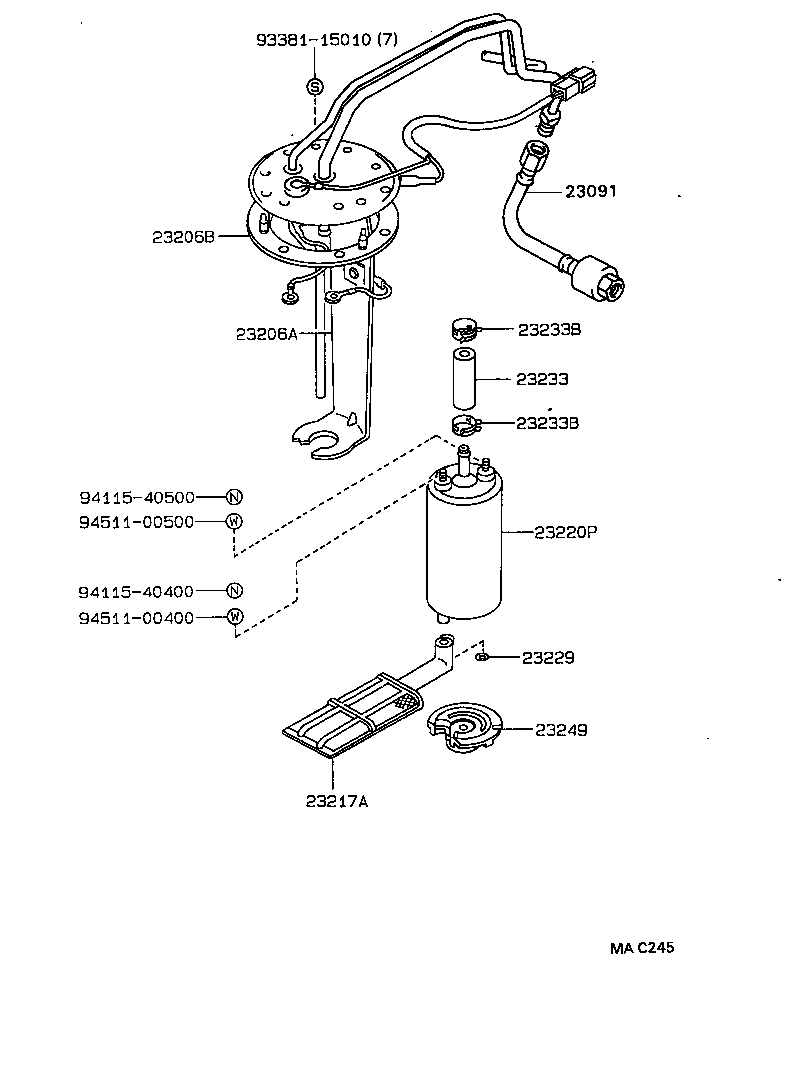

ILLUST NO. 2 OF 2(8705- )4AG#

Click highlighted areas on diagram

diagram 23091 23206A 23206B 23217A 23220P 23229 23233 23233B 23233B 23249 9338115010 9411540400 9411540500 9451100400 9451100500
Part # Description Qty Price
23091 - TUBE SUB-ASSY, FUEL PUMP
23091-16030

4AG#,5AF#..AE9#

ｶﾝﾚｲｼﾖｳORｼﾞｭﾝｶﾝﾚｲﾁｼﾖｳ

 1
23091-16020

4AG#,5AFE,5AFHE..AE9#

 1
23206A - BRACKET, FUEL PUMP
23206-16500

4AG#,5AFE,5AFHE..AE9#

 1
23206B - GASKET, FUEL PUMP BRACKET
77169-16020

4AG#,5AFE..AE9#

 1
77169-16020

4AGZE,5AF#..AE9#

 1
23217A - FILTER, FUEL PUMP
23217-16010

4AGZE..AE92

 1
23217-16390

4AG#,5AF#..AE9#

 1
23220P - PUMP ASSY, FUEL
23221-50010

4AGZE..AE92

 1
23220-16370

4AGZE..AE92

 1
23229 - CLIP(FOR FUEL PUMP FILTER)
23229-16010

4AG#,5AFE..AE9#..GT,GTAPX,GTV,GTZ,ZI

 1
23229-16010

4AG#,5AF#..AE9#

 1
23233 - HOSE, FUEL PUMP
23239-16010

4AG#,5AFE..AE9#

 1
23239-63010

4AG#..AE92

 1
23239-63010

4AG#,5AF#..AE9#

 1
23233B - CLIP(FOR FUEL PUMP HOSE)
90467-13001

4AG#,5AFE..AE9#

 2
90467-13054

4AG#,5AF#..AE9#

 2
23233B - CLIP(FOR FUEL PUMP HOSE)
90467-13001

4AG#,5AFE..AE9#

 2
90467-13054

4AG#,5AF#..AE9#

 2
23249 - RUBBER, CUSHION(FOR FUEL PUMP)
23249-74150

4AG#,5AF#..AE9#

 1
23249-74150

4AG#,5AFE..AE9#..GT,GTAPX,GTV,GTZ,ZI

 1
Common parts
93381-15010
94115-40400
94115-40500
94511-00400
94511-00500

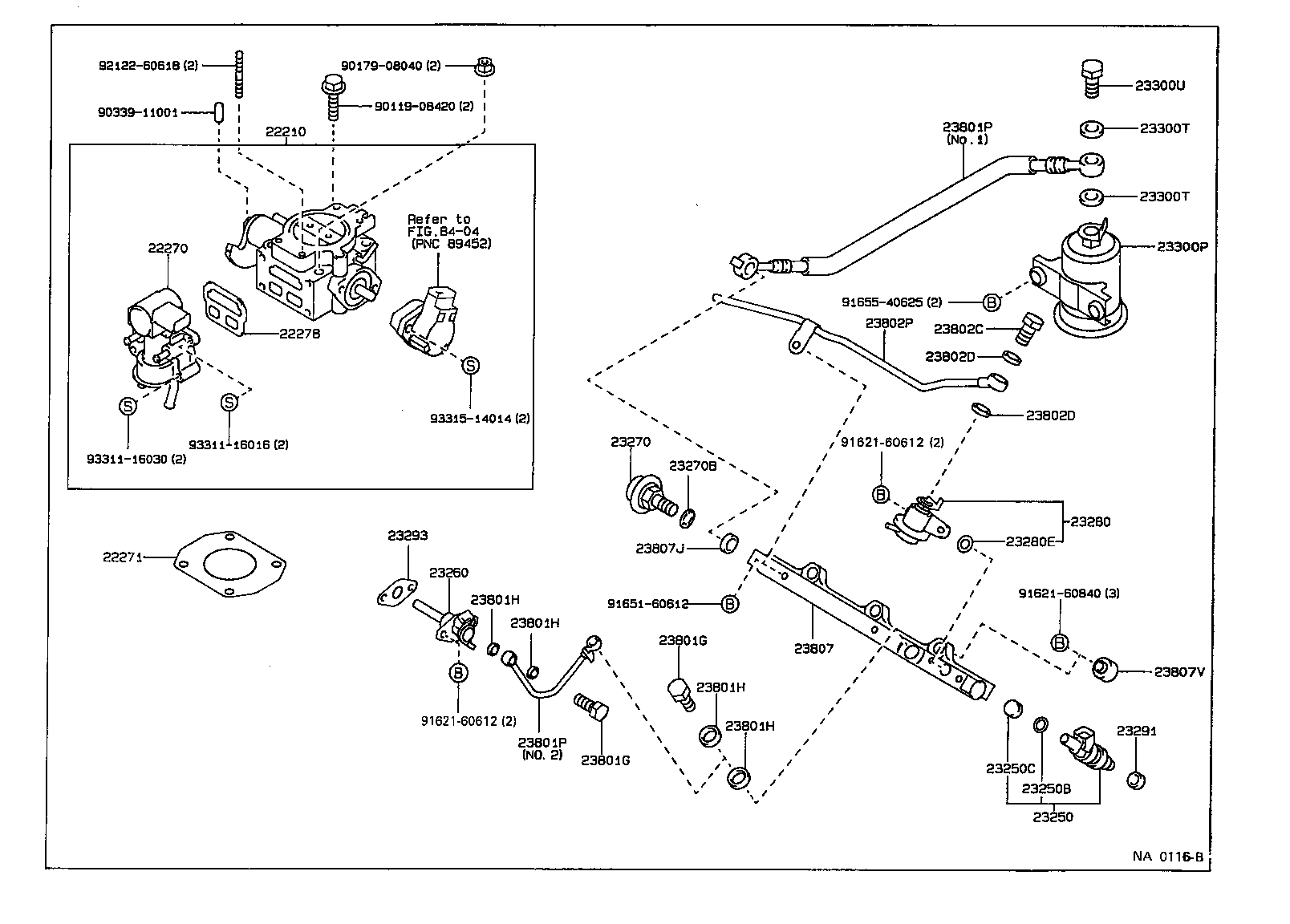

ILLUST NO. 1 OF 2(8705- )4AGZE

Click highlighted areas on diagram

diagram 22210 22270 22271 22278 23250 23250B 23250C 23260 23270 23270B 23280 23280E 23291 23293 23300P 23300T 23300T 23300U 23801G 23801G 23801H 23801H 23801H 23801H 23801P 23801P 23802C 23802D 23802D 23802P 23807 23807J 23807V 8404 9011908420 9017908040 9033911001 9162160612 9162160612 9162160840 9165160612 9165540625 9212260618 9331116016 9331116030 9331514014
Part # Description Qty Price
22210 - BODY ASSY, THROTTLE
22210-16140

4AGZE..AE92

 1
22210-16470

4AGZE..AE92

 1
22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22270-16020

4AGZE..AE92

 1
22271 - GASKET, THROTTLE BODY
22271-16030

4AGZE..AE92

 1
22278 - GASKET, IDLE SPEED CONTROL VALVE
22278-16010

4AGZE..AE92

 1
23250 - INJECTOR ASSY, FUEL
23209-1606004

4AGZE..AE92

MARK WHITE,MARK WHITE

 4
23209-1606003

4AGZE..AE92

MARK YELLOW,MARK YELLOW

 4
23209-1606001

4AGZE..AE92

MARK BLUE,MARK BLUE

 4
23209-1606101

4AGZE..AE92

MARK BLUE

 4
23209-1606104

4AGZE..AE92

MARK WHITE

 4
23209-1606002

4AGZE..AE92

MARK BLACK,MARK BLACK

 4
23209-1606102

4AGZE..AE92

MARK BLACK

 4
23209-1606103

4AGZE..AE92

MARK YELLOW

 4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07001

4AG#,5AFE..AE9#

 4
90301-07001

4AG#,5AF#..AE9#

 4
23250C - GROMMET(FOR FUEL INJECTOR)
90480-13005

4AG#,5AF#..AE9#

 4
90480-13005

4AG#,5AFE..AE9#

 4
23260 - INJECTOR ASSY, COLD START FUEL
23260-19135

4AGZE..AE92

 1
23260-19075

4AGZE..AE92

 1
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23270-70020

4AGZE..AE92

 1
23270B - GASKET(FOR PULSATION DAMPER HOSE)
23232-41081

4AGZE..AE92

 1
23232-28010

4AGZE..AE92

 1
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-16051

4AGZE..AE92

 1
23280E - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-07001

4AG#,5AFE,5AFHE..AE9#

 1
23291 - INSULATOR, INJECTOR VIBRATION
23291-16020

4AG#..AE92

 4
23291-41010

4AG#,5AFE..AE9#

 4
23293 - GASKET, COLD START INJECTOR
23293-16010

4AG#..AE92

 1
23293-16010

4AG#..AE92

 1
23300P - FILTER, FUEL(FOR EFI)
23300-19145

4AG#,5AFE,5AFHE..AE9#

 1
23300T - GASKET(FOR FUEL FILTER)
90430-12005

4AG#,5AFE,5AFHE..AE9#

 2
23300T - GASKET(FOR FUEL FILTER)
90430-12005

4AG#,5AFE,5AFHE..AE9#

 2
23300U - BOLT, UNION(FOR FUEL FILTER)
90401-12097

4AG#,5AFE,5AFHE..AE9#

 1
23801G - BOLT, UNION(FOR FUEL PIPE)
90401-08003

4AG#,5AFE..AE9#..GT,GTAPX,GTV,GTZ,ZI

 2
23801G - BOLT, UNION(FOR FUEL PIPE)
90401-08003

4AG#,5AFE..AE9#..GT,GTAPX,GTV,GTZ,ZI

 2
23801H - GASKET(FOR FUEL PIPE)
90430-08005

4AG#..AE92

 4
90430-08005

4AG#,5AFE..AE9#

 4
90430-08012

4AG#..AE92

 4
23801H - GASKET(FOR FUEL PIPE)
90430-08005

4AG#..AE92

 4
90430-08005

4AG#,5AFE..AE9#

 4
90430-08012

4AG#..AE92

 4
23801H - GASKET(FOR FUEL PIPE)
90430-08005

4AG#..AE92

 4
90430-08005

4AG#,5AFE..AE9#

 4
90430-08012

4AG#..AE92

 4
23801H - GASKET(FOR FUEL PIPE)
90430-08005

4AG#..AE92

 4
90430-08005

4AG#,5AFE..AE9#

 4
90430-08012

4AG#..AE92

 4
23801P - PIPE SUB-ASSY, FUEL, NO.1
90923-01357

4AGZE..AE92

NO.1

 1
23901-16080

4AGZE..AE92

NO.2

 1
23901-16080

4AGZE..AE92

NO.2

 1
90923-01343

4AGZE..AE92

NO.1

 1
90923-01377

4AGZE..AE92

NO.1

 1
23801P - PIPE SUB-ASSY, FUEL, NO.1
90923-01357

4AGZE..AE92

NO.1

 1
23901-16080

4AGZE..AE92

NO.2

 1
23901-16080

4AGZE..AE92

NO.2

 1
90923-01343

4AGZE..AE92

NO.1

 1
90923-01377

4AGZE..AE92

NO.1

 1
23802C - BOLT, UNION(FOR FUEL PIPE NO.2)
90401-08003

4AGZE..AE92

 1
23802D - GASKET(FOR FUEL PIPE NO.2)
90430-08012

4AGZE..AE92

 2
90430-08005

4AGZE..AE92

 2
23802D - GASKET(FOR FUEL PIPE NO.2)
90430-08012

4AGZE..AE92

 2
90430-08005

4AGZE..AE92

 2
23802P - TUBE SUB-ASSY, FUEL, NO.3
23903-16040

4AGZE..AE92

 1
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-16041

4AGZE..AE92

 1
23807-16100

4AGZE..AE92

 1
23807-16040

4AGZE..AE92

 1
23807J - GASKET, PIPE FUEL DELIVARY INLET
90430-12026

4AGZE..AE92

 1
90201-12109

4AGZE..AE92

 1
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
90561-08009

4AG#..AE92

 3
Common parts
90119-08420
90179-08040
90339-11001
91621-60612
91621-60840
91651-60612
91655-40625
92122-60618
93311-16016
93311-16030
93315-14014
Linked diagrams
8404
