AE92-ACMXF (1987)
Toyota Corolla Levin

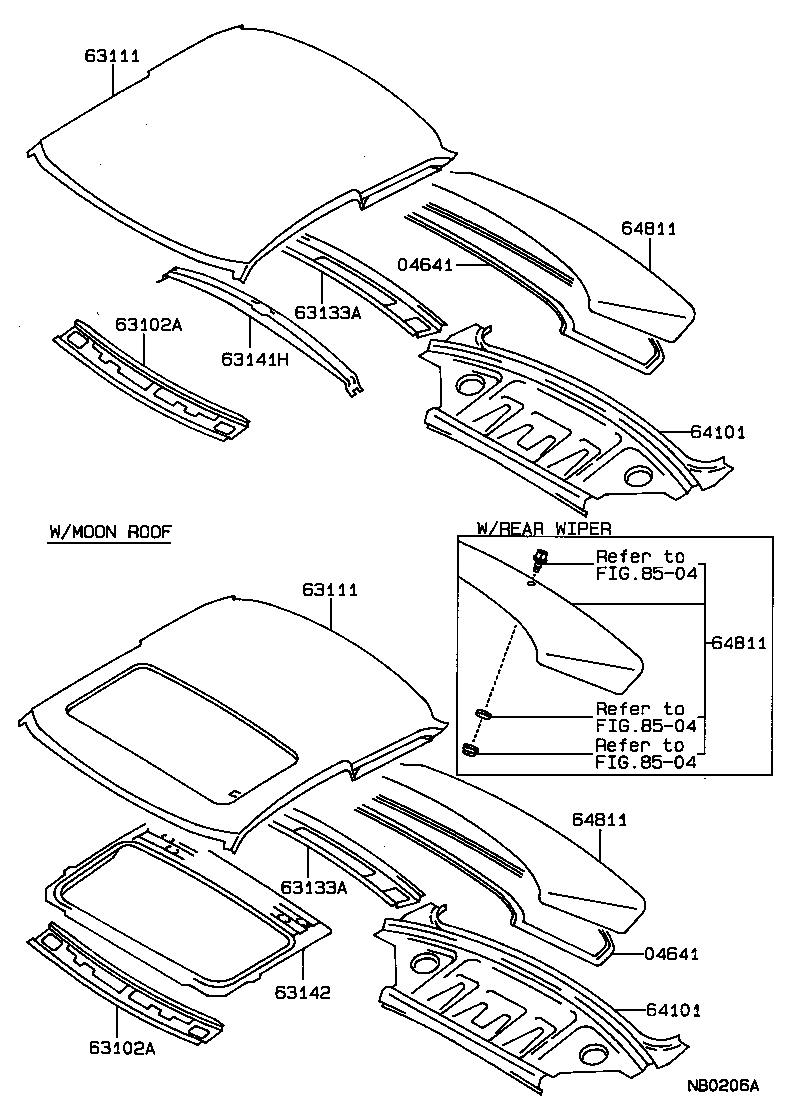

ILLUST NO. 1 OF 2(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04641 - DAM KIT, BACK WINDOW GLASS | ||||
| 04562-12010 |
AE9# |
1 | ||
| 04641 - DAM KIT, BACK WINDOW GLASS | ||||
| 04562-12010 |
AE9# |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-12060 |
AE9# |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-12060 |
AE9# |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-12902 |
AE9#..G,GT,GTAPX,GTV,GTZ,ZI ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 63111-12900 |
AE9# |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-12902 |
AE9#..G,GT,GTAPX,GTV,GTZ,ZI ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 63111-12900 |
AE9# |
1 | ||
| 63133A - FRAME, BACK WINDOW, UPPER | ||||
| 63133-12180 |
AE9# |
1 | ||
| 63133A - FRAME, BACK WINDOW, UPPER | ||||
| 63133-12180 |
AE9# |
1 | ||
| 63141H - REINFORCEMENT, ROOF PANEL, CENTER | ||||
| 63141-12140 |
AE9# |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-12040 |
AE9#..G,GT,GTAPX,GTV,GTZ,ZI,ZS |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-12390 |
AE9# |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-12390 |
AE9# |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-1A270 |
AE9#..G,GT,GTV,GTZ,L,ZI *EHTT,厚さ=3.5 |
1 | ||
| 64811-1A290 |
AE92..GTV,GTZ *EHTT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 64811-1A300 |
AE9#..G,GT,L,ZI *EHTT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 64811-1A310 |
AE92..GTV,GTZ *EHTT,厚さ=3.5,*EHTT,T=3.5,ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 64811-1A300 |
AE92..GTV,GTZ *EHTT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-1A270 |
AE9#..G,GT,GTV,GTZ,L,ZI *EHTT,厚さ=3.5 |
1 | ||
| 64811-1A290 |
AE92..GTV,GTZ *EHTT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 64811-1A300 |
AE9#..G,GT,L,ZI *EHTT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 64811-1A310 |
AE92..GTV,GTZ *EHTT,厚さ=3.5,*EHTT,T=3.5,ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 64811-1A300 |
AE92..GTV,GTZ *EHTT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-1A270 |
AE9#..G,GT,GTV,GTZ,L,ZI *EHTT,厚さ=3.5 |
1 | ||
| 64811-1A290 |
AE92..GTV,GTZ *EHTT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 64811-1A300 |
AE9#..G,GT,L,ZI *EHTT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 64811-1A310 |
AE92..GTV,GTZ *EHTT,厚さ=3.5,*EHTT,T=3.5,ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 64811-1A300 |
AE92..GTV,GTZ *EHTT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| Linked diagrams | ||||
| 8504 | ||||

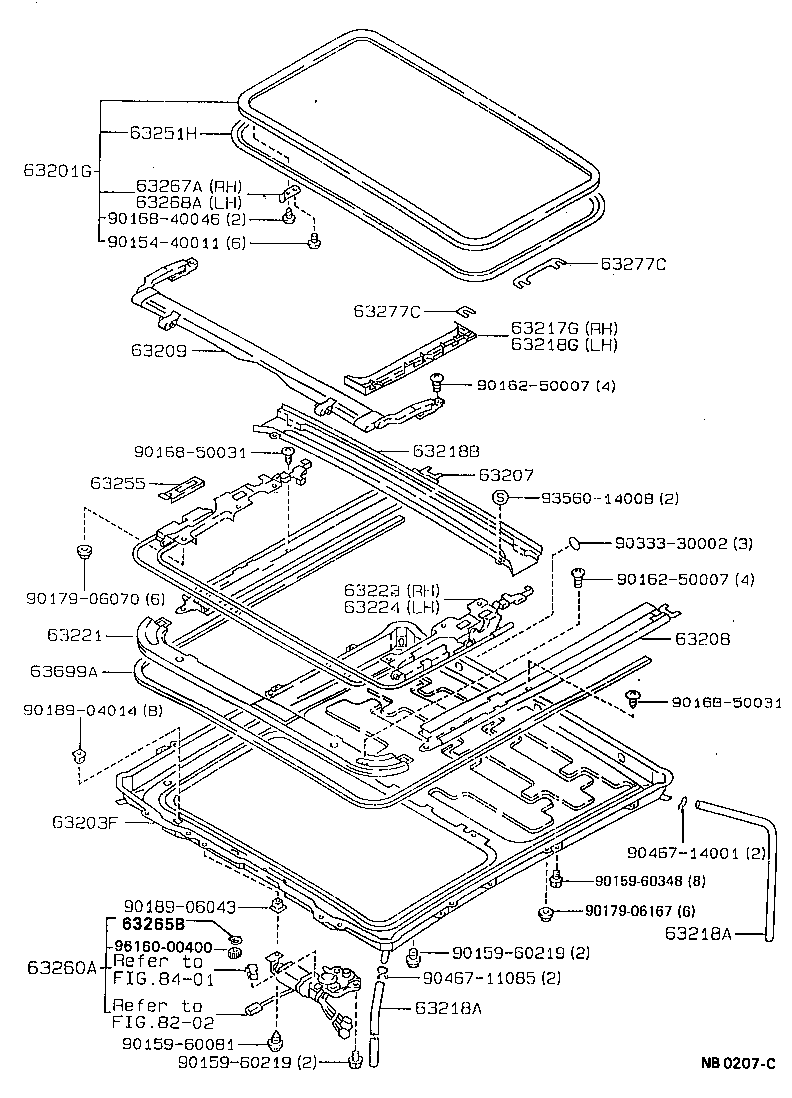

ILLUST NO. 2 OF 2(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-12110 |
AE9#..G,GT,GTAPX,GTV,GTZ,ZI BRONZE |
1 | ||
| 63203F - HOUSING SUB-ASSY, SLIDING ROOF | ||||
| 63203-12130 |
AE9#..G,GT,GTAPX,GTV,GTZ,ZI,ZS |
1 | ||
| 63207 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, RH | ||||
| 63207-12060 |
AE9#..G,GT,GTAPX,GTV,GTZ,ZI |
1 | ||
| 63208 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, LH | ||||
| 63208-12060 |
AE9#..G,GT,GTAPX,GTV,GTZ,ZI |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-12040 |
AE9#..G,GT,GTAPX,GTV,GTZ,ZI,ZS |
1 | ||
| 63217G - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-12040 |
AE9#..G,GT,GTAPX,GTV,GTZ,ZI,ZS |
1 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-12120 |
AE9#..G,GT,GTAPX,GTV,GTZ,ZI,ZS 長さ=400,ﾘﾔ |
2 | ||
| 63249-12110 |
AE9#..G,GT,GTAPX,GTV,GTZ,ZI,ZS ﾌﾛﾝﾄ |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-12120 |
AE9#..G,GT,GTAPX,GTV,GTZ,ZI,ZS 長さ=400,ﾘﾔ |
2 | ||
| 63249-12110 |
AE9#..G,GT,GTAPX,GTV,GTZ,ZI,ZS ﾌﾛﾝﾄ |
2 | ||
| 63218B - CHANNEL, ROOF DRIP, REAR | ||||
| 63218-12050 |
AE9#..G,GT,GTAPX,GTV,GTZ,ZI,ZS |
1 | ||
| 63218G - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-12040 |
AE9#..G,GT,GTAPX,GTV,GTZ,ZI,ZS |
1 | ||
| 63221 - CASING, SLIDING ROOF CABLE GUIDE | ||||
| 63221-12050 |
AE9#..G,GT,GTAPX,GTV,GTZ,ZI,ZS |
1 | ||
| 63223 - CABLE, SLIDING ROOF DRIVE, RH | ||||
| 63223-12051 |
AE9#..G,GT,GTAPX,GTV,GTZ,ZI |
1 | ||
| 63223-12050 |
AE9#..G,GT,GTAPX,GTV,GTZ,ZI |
1 | ||
| 63224 - CABLE, SLIDING ROOF DRIVE, LH | ||||
| 63224-12040 |
AE9#..G,GT,GTAPX,GTV,GTZ,ZI |
1 | ||
| 63224-12041 |
AE9#..G,GT,GTAPX,GTV,GTZ,ZI |
1 | ||
| 63251H - WEATHERSTRIP, SLIDING ROOF | ||||
| 63251-12050 |
AE9#..G,GT,GTAPX,GTV,GTZ,ZI |
1 | ||
| 63255 - COVER, SLIDING ROOF GUIDE RAIL, RH | ||||
| 63255-12050 |
AE9#..G,GT,GTAPX,GTV,GTZ,ZI,ZS |
2 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-20030 |
AE9#..G,GT,GTAPX,GTV,GTZ,ZI,ZS |
1 | ||
| 63267A - PROTECTOR, SLIDING ROOF WEATHERSTRIP, RH | ||||
| 63267-20030 |
AE9#..G,GT,GTAPX,GTV,GTZ,ZI,ZS |
1 | ||
| 63268A - PROTECTOR, SLIDING ROOF WEATHERSTRIP, LH | ||||
| 63268-20020 |
AE9#..G,GT,GTAPX,GTV,GTZ,ZI,ZS |
1 | ||
| 63277C - SHIM, SLIDING ROOF PANEL | ||||
| 63277-20030 |
AE9#..G,GT,GTAPX,GTV,GTZ,ZI,ZS 厚さ=1.0,ﾌﾛﾝﾄ |
1 | ||
| 63277-20020 |
AE9#..G,GT,GTAPX,GTV,GTZ,ZI,ZS 厚さ=1.0,ﾘﾔ |
1 | ||
| 63277C - SHIM, SLIDING ROOF PANEL | ||||
| 63277-20030 |
AE9#..G,GT,GTAPX,GTV,GTZ,ZI,ZS 厚さ=1.0,ﾌﾛﾝﾄ |
1 | ||
| 63277-20020 |
AE9#..G,GT,GTAPX,GTV,GTZ,ZI,ZS 厚さ=1.0,ﾘﾔ |
1 | ||
| 63699A - SEAL, SLIDING ROOF GUIDE RAIL | ||||
| 63699-12030 |
AE9#..G,GT,GTAPX,GTV,GTZ,ZI |
1 | ||
| Common parts | ||||
| 90154-40011 | ||||
| 90159-60081 | ||||
| 90159-60219 | ||||
| 90159-60348 | ||||
| 90162-50007 | ||||
| 90168-40046 | ||||
| 90168-50031 | ||||
| 90179-06070 | ||||
| 90179-06167 | ||||
| 90189-04014 | ||||
| 90189-06043 | ||||
| 90333-30002 | ||||
| 90467-11085 | ||||
| 90467-14001 | ||||
| 93560-14008 | ||||
| 96160-00400 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||
