AE92-ACMVF (1987)
Toyota Corolla Levin

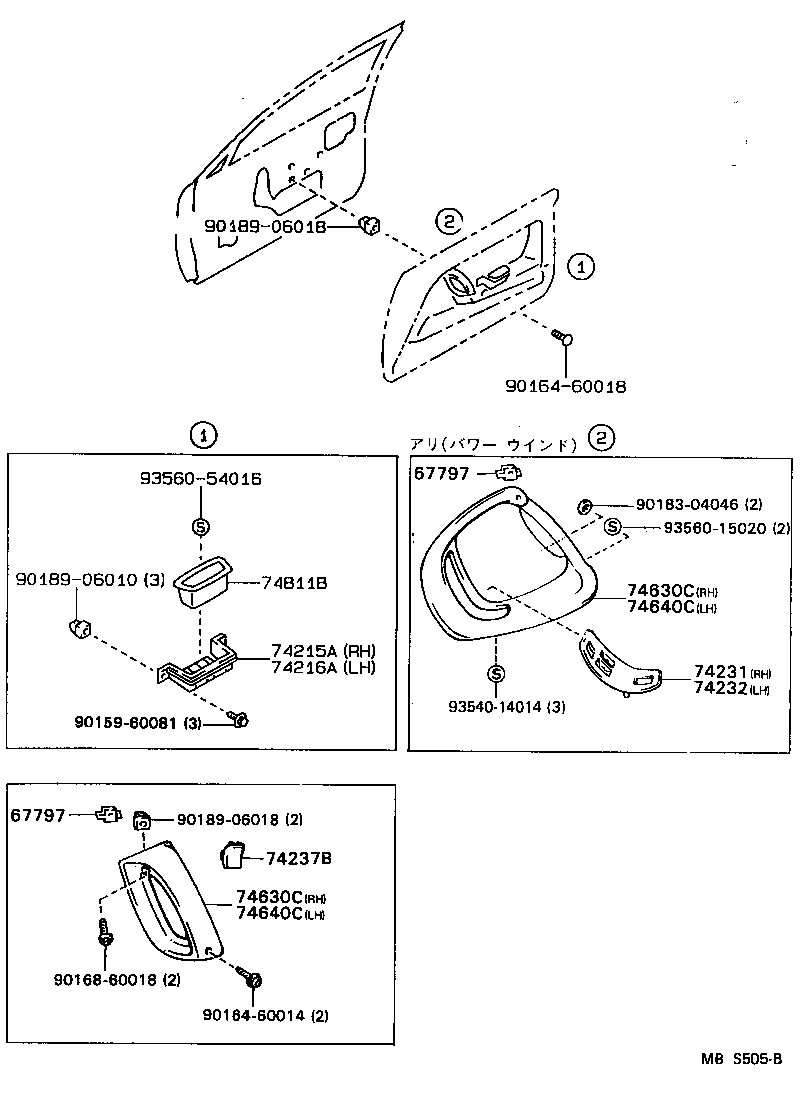

ILLUST NO. 2 OF 2(8905- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67797 - RETAINER, DOOR TRIM ORNAMENT | ||||
| 67797-12010 |
AE9# |
2 | ||
| 67797 - RETAINER, DOOR TRIM ORNAMENT | ||||
| 67797-12010 |
AE9# |
2 | ||
| 74215A - BASE, DOOR ARMREST RH | ||||
| 74215-12030 |
AE9#..G,GT,L,ZI |
1 | ||
| 74216A - BASE, DOOR ARMREST, LH | ||||
| 74215-12030 |
AE9#..G,GT,L,ZI |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-1211003 |
AE9# SHADOW GRAY,TRIM1# |
1 | ||
| 74231-1211004 |
AE9#..G,GT,GTAPX,GTZ,ZS DARK BLUE,TRIM8# |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-1209003 |
AE9# SHADOW GRAY,TRIM1# |
1 | ||
| 74232-1209004 |
AE9#..G,GT,GTAPX,GTZ,ZS DARK BLUE,TRIM8# |
1 | ||
| 74237B - CAP, DOOR ARMREST BASE | ||||
| 74237-1202004 |
AE9#..G,GT,GTAPX,GTZ,ZS DARK BLUE,TRIM8# |
2 | ||
| 74237-1202003 |
AE9# SHADOW GRAY,TRIM1# |
2 | ||
| 74630C - GRIP ASSY, DOOR ASSIST, RH | ||||
| 74630-1202003 |
AE92..GT,GTZ SHADOW GRAY,TRIM1# |
1 | ||
| 74630-1202004 |
AE92..GT,GTZ DARK BLUE,TRIM8# |
1 | ||
| 74630-1204003 |
AE92..GT,GTZ ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ & ﾃﾞﾝｼﾞ ﾛﾂｸ),SHADOW GRAY,TRIM1# |
1 | ||
| 74630-1204004 |
AE9#..G,GTAPX,ZS DARK BLUE,TRIM8# |
1 | ||
| 74630-1204003 |
AE9#..G,GTAPX,L,ZS SHADOW GRAY,TRIM1# |
1 | ||
| 74630-1204004 |
AE92..GT,GTZ ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ & ﾃﾞﾝｼﾞ ﾛﾂｸ),DARK BLUE,TRIM8# |
1 | ||
| 74630C - GRIP ASSY, DOOR ASSIST, RH | ||||
| 74630-1202003 |
AE92..GT,GTZ SHADOW GRAY,TRIM1# |
1 | ||
| 74630-1202004 |
AE92..GT,GTZ DARK BLUE,TRIM8# |
1 | ||
| 74630-1204003 |
AE92..GT,GTZ ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ & ﾃﾞﾝｼﾞ ﾛﾂｸ),SHADOW GRAY,TRIM1# |
1 | ||
| 74630-1204004 |
AE9#..G,GTAPX,ZS DARK BLUE,TRIM8# |
1 | ||
| 74630-1204003 |
AE9#..G,GTAPX,L,ZS SHADOW GRAY,TRIM1# |
1 | ||
| 74630-1204004 |
AE92..GT,GTZ ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ & ﾃﾞﾝｼﾞ ﾛﾂｸ),DARK BLUE,TRIM8# |
1 | ||
| 74640C - GRIP ASSY, DOOR ASSIST, LH | ||||
| 74640-1202004 |
AE92..GT,GTZ DARK BLUE,TRIM8# |
1 | ||
| 74640-1202003 |
AE92..GT,GTZ SHADOW GRAY,TRIM1# |
1 | ||
| 74640-1204004 |
AE9#..G,GTAPX,ZS DARK BLUE,TRIM8# |
1 | ||
| 74640-1204003 |
AE9#..G,GTAPX,L,ZS SHADOW GRAY,TRIM1# |
1 | ||
| 74640-1204004 |
AE92..GT,GTZ ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ & ﾃﾞﾝｼﾞ ﾛﾂｸ),DARK BLUE,TRIM8# |
1 | ||
| 74640-1204003 |
AE92..GT,GTZ ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ & ﾃﾞﾝｼﾞ ﾛﾂｸ),SHADOW GRAY,TRIM1# |
1 | ||
| 74640C - GRIP ASSY, DOOR ASSIST, LH | ||||
| 74640-1202004 |
AE92..GT,GTZ DARK BLUE,TRIM8# |
1 | ||
| 74640-1202003 |
AE92..GT,GTZ SHADOW GRAY,TRIM1# |
1 | ||
| 74640-1204004 |
AE9#..G,GTAPX,ZS DARK BLUE,TRIM8# |
1 | ||
| 74640-1204003 |
AE9#..G,GTAPX,L,ZS SHADOW GRAY,TRIM1# |
1 | ||
| 74640-1204004 |
AE92..GT,GTZ ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ & ﾃﾞﾝｼﾞ ﾛﾂｸ),DARK BLUE,TRIM8# |
1 | ||
| 74640-1204003 |
AE92..GT,GTZ ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ & ﾃﾞﾝｼﾞ ﾛﾂｸ),SHADOW GRAY,TRIM1# |
1 | ||
| 74811B - HANDLE, DOOR PULL | ||||
| 74811-1205004 |
AE9#..G,GT,L,ZI DARK BLUE,TRIM8# |
2 | ||
| 74811-1205003 |
AE9#..G,GT,L,ZI SHADOW GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90159-60081 | ||||
| 90164-60014 | ||||
| 90164-60018 | ||||
| 90168-60018 | ||||
| 90183-04046 | ||||
| 90189-06010 | ||||
| 90189-06018 | ||||
| 93540-14014 | ||||
| 93560-15020 | ||||
| 93560-54016 | ||||

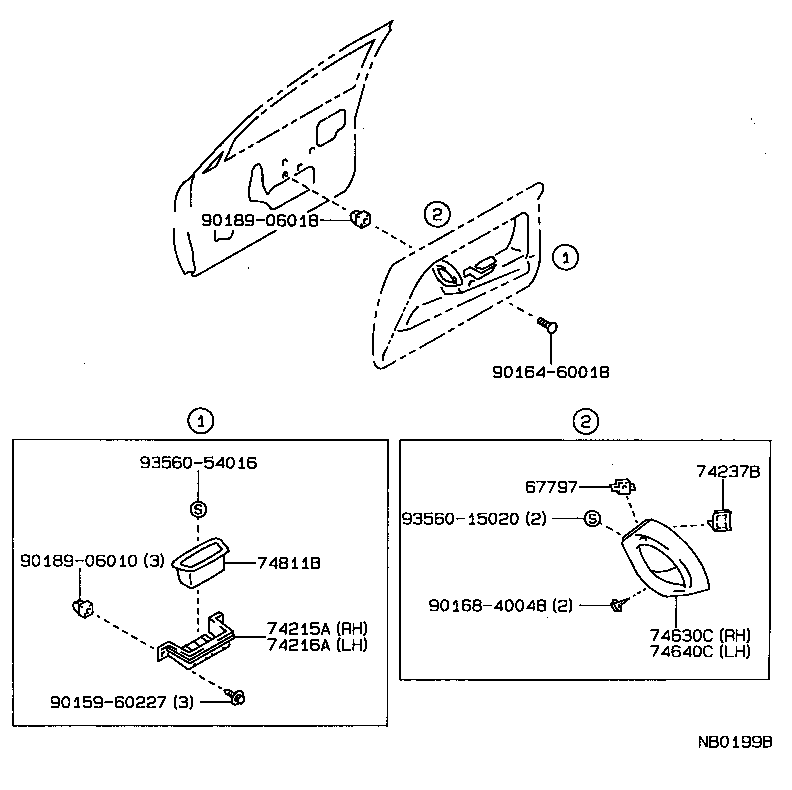

ILLUST NO. 1 OF 2(8705-8905)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67797 - RETAINER, DOOR TRIM ORNAMENT | ||||
| 67797-12010 |
AE9# |
2 | ||
| 74215A - BASE, DOOR ARMREST RH | ||||
| 74215-12030 |
AE9#..G,GT,L,ZI |
1 | ||
| 74216A - BASE, DOOR ARMREST, LH | ||||
| 74215-12030 |
AE9#..G,GT,L,ZI |
1 | ||
| 74237B - CAP, DOOR ARMREST BASE | ||||
| 74237-1202004 |
AE9#..G,GT,GTAPX,GTZ,ZS DARK BLUE,TRIM8# |
2 | ||
| 74237-1202003 |
AE9# SHADOW GRAY,TRIM1# |
2 | ||
| 74630C - GRIP ASSY, DOOR ASSIST, RH | ||||
| 74630-1202003 |
AE92..GT,GTZ SHADOW GRAY,TRIM1# |
1 | ||
| 74630-1202004 |
AE92..GT,GTZ DARK BLUE,TRIM8# |
1 | ||
| 74630-1204003 |
AE92..GT,GTZ ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ & ﾃﾞﾝｼﾞ ﾛﾂｸ),SHADOW GRAY,TRIM1# |
1 | ||
| 74630-1204004 |
AE9#..G,GTAPX,ZS DARK BLUE,TRIM8# |
1 | ||
| 74630-1204003 |
AE9#..G,GTAPX,L,ZS SHADOW GRAY,TRIM1# |
1 | ||
| 74630-1204004 |
AE92..GT,GTZ ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ & ﾃﾞﾝｼﾞ ﾛﾂｸ),DARK BLUE,TRIM8# |
1 | ||
| 74640C - GRIP ASSY, DOOR ASSIST, LH | ||||
| 74640-1202004 |
AE92..GT,GTZ DARK BLUE,TRIM8# |
1 | ||
| 74640-1202003 |
AE92..GT,GTZ SHADOW GRAY,TRIM1# |
1 | ||
| 74640-1204004 |
AE9#..G,GTAPX,ZS DARK BLUE,TRIM8# |
1 | ||
| 74640-1204003 |
AE9#..G,GTAPX,L,ZS SHADOW GRAY,TRIM1# |
1 | ||
| 74640-1204004 |
AE92..GT,GTZ ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ & ﾃﾞﾝｼﾞ ﾛﾂｸ),DARK BLUE,TRIM8# |
1 | ||
| 74640-1204003 |
AE92..GT,GTZ ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ & ﾃﾞﾝｼﾞ ﾛﾂｸ),SHADOW GRAY,TRIM1# |
1 | ||
| 74811B - HANDLE, DOOR PULL | ||||
| 74811-1205004 |
AE9#..G,GT,L,ZI DARK BLUE,TRIM8# |
2 | ||
| 74811-1205003 |
AE9#..G,GT,L,ZI SHADOW GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90159-60227 | ||||
| 90164-60018 | ||||
| 90168-40048 | ||||
| 90189-06010 | ||||
| 90189-06018 | ||||
| 93560-15020 | ||||
| 93560-54016 | ||||

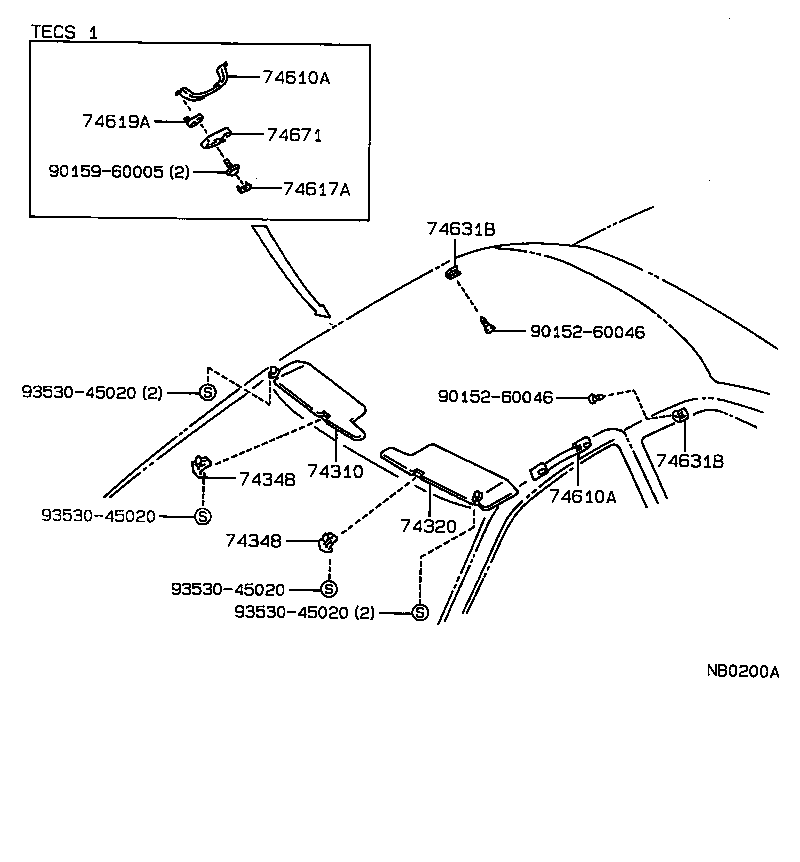

ILLUST NO. 2 OF 2(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-1282003 |
AE9#..G,GT,GTAPX,GTV,GTZ,ZI,ZS LIGHT GRAY,TRIM1# |
1 | ||
| 74310-1282004 |
AE9#..G,GT,GTAPX,GTV,GTZ,ZI,ZS LIGHT BLUE,TRIM8# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-1262004 |
AE91..CBR,EFIS;AE9#..(G,GT,GTV,GTZ,ZI)..(EFI,SPC) LIGHT BLUE,TRIM8# |
1 | ||
| 74320-1262003 |
AE9#..G,GT,GTV,GTZ,L,ZI,ZS LIGHT GRAY,TRIM1# |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-3201014 |
AE9#..G,GT,GTAPX,GTV,GTZ,ZI DEEP BLUE,TRIM8# |
2 | ||
| 74348-1202004 |
AE91..CBR,EFIS;AE9#..(G,GT,GTAPX,GTV,GTZ,ZI)..(EFI,SPC) LIGHT BLUE,TRIM8# |
2 | ||
| 74348-1202003 |
AE9# LIGHT GRAY,TRIM1# |
2 | ||
| 74348-3201033 |
AE9#..G,GT,GTAPX,GTV,GTZ,ZI SHADOW GRAY,TRIM1# |
2 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-3201014 |
AE9#..G,GT,GTAPX,GTV,GTZ,ZI DEEP BLUE,TRIM8# |
2 | ||
| 74348-1202004 |
AE91..CBR,EFIS;AE9#..(G,GT,GTAPX,GTV,GTZ,ZI)..(EFI,SPC) LIGHT BLUE,TRIM8# |
2 | ||
| 74348-1202003 |
AE9# LIGHT GRAY,TRIM1# |
2 | ||
| 74348-3201033 |
AE9#..G,GT,GTAPX,GTV,GTZ,ZI SHADOW GRAY,TRIM1# |
2 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-1205004 |
AE91..CBR,EFIS;AE9#..(G,GT,GTAPX,GTV,GTZ,ZI)..(EFI,SPC) DARK BLUE,TRIM8# |
1 | ||
| 74610-1205003 |
AE9# SHADOW GRAY,TRIM1# |
1 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-1205004 |
AE91..CBR,EFIS;AE9#..(G,GT,GTAPX,GTV,GTZ,ZI)..(EFI,SPC) DARK BLUE,TRIM8# |
1 | ||
| 74610-1205003 |
AE9# SHADOW GRAY,TRIM1# |
1 | ||
| 74631B - HOOK, COAT | ||||
| 74631-1207003 |
AE9# GRAY,TRIM1# |
2 | ||
| 74631-1207014 |
AE91..CBR,EFIS;AE9#..(G,GT,GTAPX,GTV,GTZ,ZI)..(EFI,SPC) DARK BLUE,TRIM8# |
2 | ||
| 74631B - HOOK, COAT | ||||
| 74631-1207003 |
AE9# GRAY,TRIM1# |
2 | ||
| 74631-1207014 |
AE91..CBR,EFIS;AE9#..(G,GT,GTAPX,GTV,GTZ,ZI)..(EFI,SPC) DARK BLUE,TRIM8# |
2 | ||
| Common parts | ||||
| 90152-60046 | ||||
| 90159-60005 | ||||
| 93530-45020 | ||||
