AE92-ACMVF (1987)
Toyota Corolla Levin

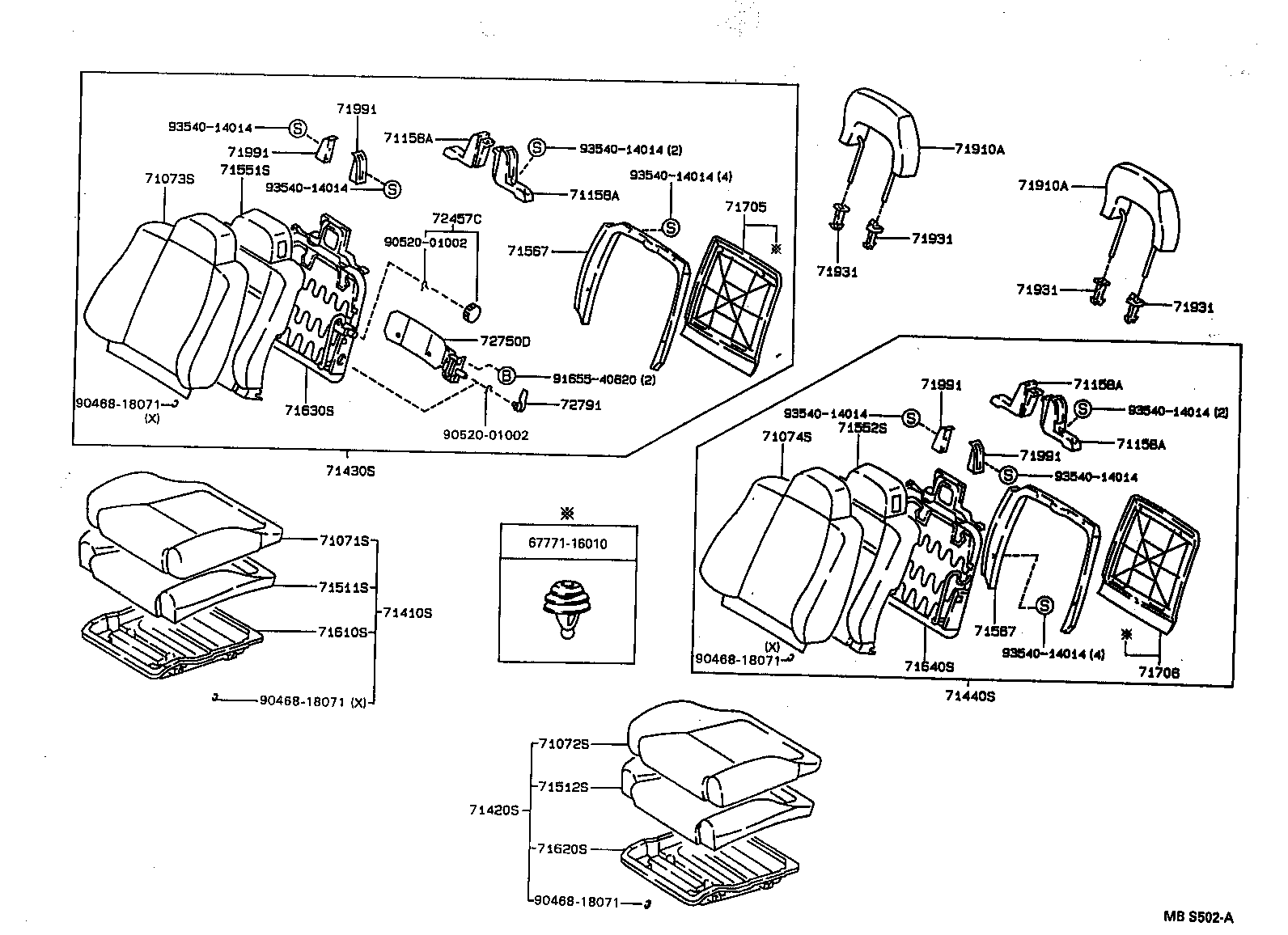

ILLUST NO. 1 OF 2(8705- )AE92
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-1H56003 |
AE92..GT SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1K15004 |
AE92..GT,GTZ DARK BLUE,TRIM8# |
1 | ||
| 71071-1K15003 |
AE92..GT,GTZ SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1H56004 |
AE92..GT DARK BLUE,TRIM8# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-1H56003 |
AE92..GT SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1K15003 |
AE92..GT,GTZ SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1K15004 |
AE92..GT,GTZ DARK BLUE,TRIM8# |
1 | ||
| 71071-1H56004 |
AE92..GT DARK BLUE,TRIM8# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1H38003 |
AE92..GT SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1H38004 |
AE92..GT DARK BLUE,TRIM8# |
1 | ||
| 71073-1H73003 |
AE92..GT,GTZ SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1H73004 |
AE92..GT,GTZ DARK BLUE,TRIM8# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-1E41004 |
AE92..GT DARK BLUE,TRIM8# |
1 | ||
| 71074-1E41003 |
AE92..GT SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1H73003 |
AE92..GT,GTZ SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1H73004 |
AE92..GT,GTZ DARK BLUE,TRIM8# |
1 | ||
| 71158A - FRAME, FRONT SEAT BACK, UPPER OUTER | ||||
| 71158-12090 |
AE92 |
4 | ||
| 71158A - FRAME, FRONT SEAT BACK, UPPER OUTER | ||||
| 71158-12090 |
AE92 |
4 | ||
| 71158A - FRAME, FRONT SEAT BACK, UPPER OUTER | ||||
| 71158-12090 |
AE92 |
4 | ||
| 71158A - FRAME, FRONT SEAT BACK, UPPER OUTER | ||||
| 71158-12090 |
AE92 |
4 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-1H85004 |
AE92..GT ***,DARK BLUE,TRIM8# |
1 | ||
| 71410-1H85003 |
AE92..GT ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1K01103 |
AE92..GT,GTZ ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1K01104 |
AE92..GT,GTZ ***,DARK BLUE,TRIM8# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71410-1H85004 |
AE92..GT ***,DARK BLUE,TRIM8# |
1 | ||
| 71410-1K01103 |
AE92..GT,GTZ ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1H85003 |
AE92..GT ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1K01104 |
AE92..GT,GTZ ***,DARK BLUE,TRIM8# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1H72003 |
AE92..GT ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1H72004 |
AE92..GT ***,DARK BLUE,TRIM8# |
1 | ||
| 71430-1H78103 |
AE92..GT,GTZ ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1H78104 |
AE92..GT,GTZ ***,DARK BLUE,TRIM8# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-1H72003 |
AE92..GT ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1H72004 |
AE92..GT ***,DARK BLUE,TRIM8# |
1 | ||
| 71430-1H78103 |
AE92..GT,GTZ ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1H78104 |
AE92..GT,GTZ ***,DARK BLUE,TRIM8# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-12640 |
AE9#..G,GT,L,ZI |
1 | ||
| 71511-12630 |
AE92 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-12640 |
AE9#..G,GT,L,ZI |
1 | ||
| 71511-12630 |
AE92 |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-12550 |
AE92 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-12550 |
AE92 |
1 | ||
| 71567 - PAD, FRONT SEAT BACK SAFETY | ||||
| 71567-12010 |
AE92 |
2 | ||
| 71567 - PAD, FRONT SEAT BACK SAFETY | ||||
| 71567-12010 |
AE92 |
2 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-12310 |
AE92 |
1 | ||
| 71610-12320 |
AE9#..G,GT,L |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71610-12320 |
AE9#..G,GT,L,ZI |
1 | ||
| 71610-12310 |
AE92 |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-12480 |
AE92..GT,GTZ |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71630-12480 |
AE92 |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-1205004 |
AE92 DARK BLUE,TRIM8# |
1 | ||
| 71705-1205003 |
AE92 SHADOW GRAY,TRIM1# |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71705-1205003 |
AE92 SHADOW GRAY,TRIM1# |
1 | ||
| 71705-1205004 |
AE92 DARK BLUE,TRIM8# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1289004 |
AE92..GT DARK BLUE,TRIM8# |
2 | ||
| 71910-1287101 |
AE92 BLACK,TRIM1# |
2 | ||
| 71910-1287104 |
AE92 DARK BLUE,TRIM8# |
2 | ||
| 71910-1289003 |
AE92..GT SHADOW GRAY,TRIM1# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1289004 |
AE92..GT DARK BLUE,TRIM8# |
2 | ||
| 71910-1287101 |
AE92 BLACK,TRIM1# |
2 | ||
| 71910-1287104 |
AE92 DARK BLUE,TRIM8# |
2 | ||
| 71910-1289003 |
AE92..GT SHADOW GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1201004 |
AE9#..G,GT,L,ZI ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71930-1205003 |
AE9#..G,GT,L,ZI ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201003 |
AE9#..G,GT,L,ZI ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1205004 |
AE9#..G,GT,L,ZI ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71931-1203004 |
AE92 ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71930-1206003 |
AE92 ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1203003 |
AE92 ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1206004 |
AE92 ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1201004 |
AE9#..G,GT,L,ZI ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71930-1205003 |
AE9#..G,GT,L,ZI ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201003 |
AE9#..G,GT,L,ZI ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1205004 |
AE9#..G,GT,L,ZI ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71931-1203004 |
AE92 ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71930-1206003 |
AE92 ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1203003 |
AE92 ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1206004 |
AE92 ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1201004 |
AE9#..G,GT,L,ZI ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71930-1205003 |
AE9#..G,GT,L,ZI ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201003 |
AE9#..G,GT,L,ZI ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1205004 |
AE9#..G,GT,L,ZI ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71931-1203004 |
AE92 ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71930-1206003 |
AE92 ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1203003 |
AE92 ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1206004 |
AE92 ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1201004 |
AE9#..G,GT,L,ZI ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71930-1205003 |
AE9#..G,GT,L,ZI ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201003 |
AE9#..G,GT,L,ZI ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1205004 |
AE9#..G,GT,L,ZI ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71931-1203004 |
AE92 ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71930-1206003 |
AE92 ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1203003 |
AE92 ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1206004 |
AE92 ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71991 - COVER, HEADREST SUPPORT BASE | ||||
| 71991-1201003 |
AE92 SHADOW GRAY,TRIM1# |
4 | ||
| 71991-1201004 |
AE92 DARK BLUE,TRIM8# |
4 | ||
| 71991 - COVER, HEADREST SUPPORT BASE | ||||
| 71991-1201003 |
AE92 SHADOW GRAY,TRIM1# |
4 | ||
| 71991-1201004 |
AE92 DARK BLUE,TRIM8# |
4 | ||
| 71991 - COVER, HEADREST SUPPORT BASE | ||||
| 71991-1201003 |
AE92 SHADOW GRAY,TRIM1# |
4 | ||
| 71991-1201004 |
AE92 DARK BLUE,TRIM8# |
4 | ||
| 71991 - COVER, HEADREST SUPPORT BASE | ||||
| 71991-1201003 |
AE92 SHADOW GRAY,TRIM1# |
4 | ||
| 71991-1201004 |
AE92 DARK BLUE,TRIM8# |
4 | ||
| Common parts | ||||
| 67771-16010 | ||||
| 90468-18071 | ||||
| 90520-01002 | ||||
| 91655-40620 | ||||
| 93540-14014 | ||||

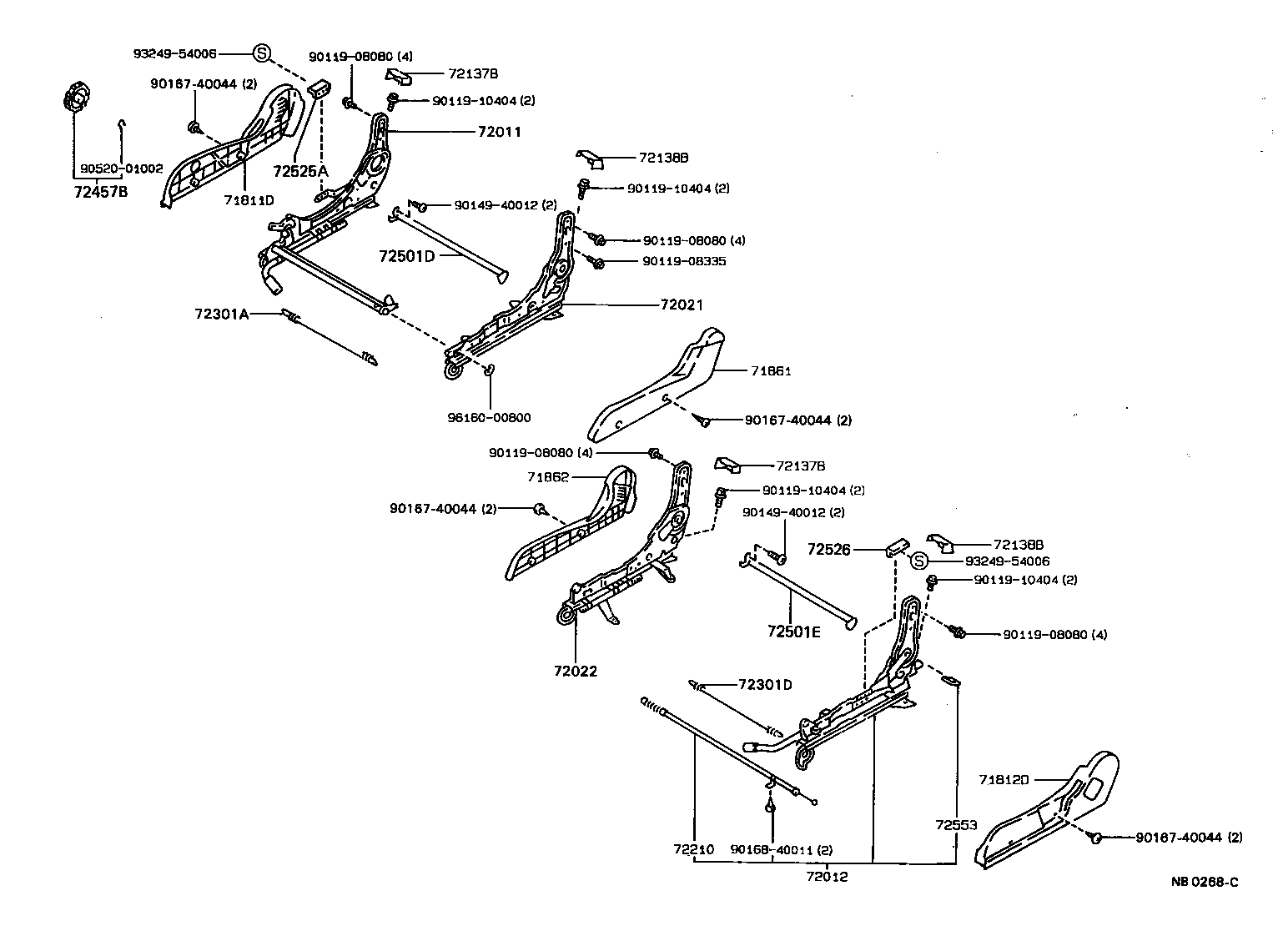

ILLUST NO. 2 OF 2(8705- )AE92
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-1220003 |
AE9#..G,GT,L SHADOW GRAY,TRIM1# |
1 | ||
| 71811-1220004 |
AE9#..G,GT,L DARK BLUE,TRIM8# |
1 | ||
| 71811-1219004 |
AE92 DARK BLUE,TRIM8# |
1 | ||
| 71811-1219003 |
AE92 SHADOW GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-1217003 |
AE9#..G,GT,L,ZI SHADOW GRAY,TRIM1# |
1 | ||
| 71812-1216003 |
AE92 SHADOW GRAY,TRIM1# |
1 | ||
| 71812-1217004 |
AE9#..G,GT,L,ZI DARK BLUE,TRIM8# |
1 | ||
| 71812-1216004 |
AE92 DARK BLUE,TRIM8# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-1215003 |
AE9#..G,GT,L,ZI SHADOW GRAY,TRIM1# |
1 | ||
| 71861-1215004 |
AE9#..G,GT,L,ZI DARK BLUE,TRIM8# |
1 | ||
| 71861-1214004 |
AE92 DARK BLUE,TRIM8# |
1 | ||
| 71861-1214003 |
AE92 SHADOW GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-1214003 |
AE9#..G,GT,L,ZI SHADOW GRAY,TRIM1# |
1 | ||
| 71862-1214004 |
AE9#..G,GT,L,ZI DARK BLUE,TRIM8# |
1 | ||
| 71862-1213004 |
AE92 DARK BLUE,TRIM8# |
1 | ||
| 71862-1213003 |
AE92 SHADOW GRAY,TRIM1# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-12540 |
AE9#..G,GT,L |
1 | ||
| 72011-12130 |
AE92 |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-12130 |
AE92 |
1 | ||
| 72020-12530 |
AE9#..G,GT,L,ZI |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-12150 |
AE92 |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-12150 |
AE92 |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-12020J0 |
AE91..CBR,EFIS;AE9#..(G,GT,GTAPX,GTV,GTZ,ZI)..(EFI,SPC) DARK BLUE,TRIM8# |
2 | ||
| 72137-1202003 |
AE9# SHADOW GRAY,TRIM1# |
2 | ||
| 72137-1202004 |
AE9# DARK BLUE,TRIM8# |
2 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-12020J0 |
AE91..CBR,EFIS;AE9#..(G,GT,GTAPX,GTV,GTZ,ZI)..(EFI,SPC) DARK BLUE,TRIM8# |
2 | ||
| 72137-1202003 |
AE9# SHADOW GRAY,TRIM1# |
2 | ||
| 72137-1202004 |
AE9# DARK BLUE,TRIM8# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-1203003 |
AE9# SHADOW GRAY,TRIM1# |
2 | ||
| 72138-1203004 |
AE9# DARK BLUE,TRIM8# |
2 | ||
| 72138-12030J0 |
AE9#..G,GT,GTV,GTZ,L,ZI DARK BLUE,TRIM8# |
2 | ||
| 72138-12030J0 |
AE9#..G,GT,GTAPX,GTZ,ZS DARK BLUE,TRIM8# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-1203003 |
AE9# SHADOW GRAY,TRIM1# |
2 | ||
| 72138-1203004 |
AE9# DARK BLUE,TRIM8# |
2 | ||
| 72138-12030J0 |
AE9#..G,GT,GTV,GTZ,L,ZI DARK BLUE,TRIM8# |
2 | ||
| 72138-12030J0 |
AE9#..G,GT,GTAPX,GTZ,ZS DARK BLUE,TRIM8# |
2 | ||
| 72210 - CABLE ASSY, SEAT TRACK CONTROL | ||||
| 72210-12210 |
AE9#..G,GT,L,ZI |
1 | ||
| 72210-12230 |
AE92 |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-12100 |
AE9# |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-12100 |
AE92 |
1 | ||
| 72457B - KNOB, VERTICAL SEAT ADJUSTER, RH | ||||
| 72457-1404003 |
AE92 GRAY,TRIM1# |
1 | ||
| 72457-1404034 |
AE92 DARK BLUE,TRIM8# |
1 | ||
| 72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH | ||||
| 72501-12070 |
AE92 |
1 | ||
| 72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72501-12070 |
AE92 |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-1209003 |
AE9# GRAY,TRIM1# |
1 | ||
| 72525-1209034 |
AE91..CBR,EFIS;AE9#..(G,GT,GTAPX,GTV,GTZ,ZI)..(EFI,SPC) DARK BLUE,TRIM8# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-1203003 |
AE9# GRAY,TRIM1# |
1 | ||
| 72526-1203034 |
AE91..CBR,EFIS;AE9#..(G,GT,GTAPX,GTV,GTZ,ZI)..(EFI,SPC) DARK BLUE,TRIM8# |
1 | ||
| 72553 - COVER, RECLINING PEDAL | ||||
| 72553-12040 |
AE9# |
1 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-08335 | ||||
| 90119-10404 | ||||
| 90149-40012 | ||||
| 90167-40044 | ||||
| 90168-40011 | ||||
| 90520-01002 | ||||
| 93249-54006 | ||||
| 96160-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
