AE91-ACPGU (1987)
Toyota Corolla Levin
Production
May 1987
-
May 1989
Engine
5AF
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

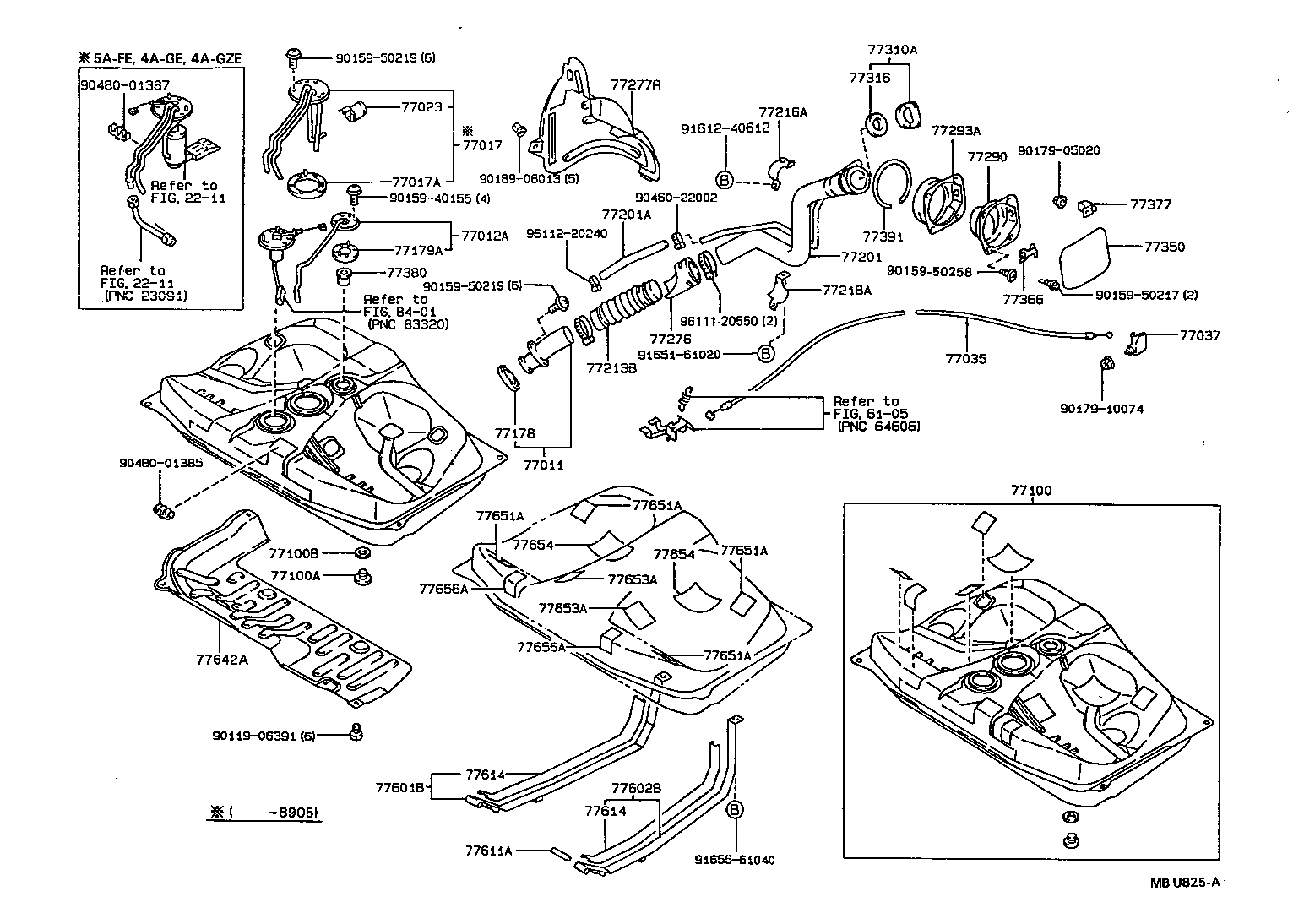

ILLUST NO. 1 OF 2(8705- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-12040 |
AE9#..CBR,SPC |
1 | ||
| 77011-12060 |
AE9#..CBR,SPC |
1 | ||
| 77012A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.1 | ||||
| 77012-12020 |
AE9# |
1 | ||
| 77017 - TUBE SUB-ASSY, FUEL AND EVAPORATION VENT | ||||
| 77017-12370 |
AE91..CBR |
1 | ||
| 77017-12300 |
AE91..CBR |
1 | ||
| 77017A - GASKET, FUEL TANK VENT | ||||
| 77169-16020 |
AE91..CBR |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-14030 |
AE91..CBR |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-12160 |
AE9# |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-12050 |
AE9# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-19515 |
AE91..CBR |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20004 |
AE9# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20007 |
AE9# |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20010 |
AE9#..CBR,SPC |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-16010 |
AE9# |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-12330 |
AE9# |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 90445-22011 |
AE9# 長さ=220 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-12140 |
AE9# |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-12040 |
AE9# |
1 | ||
| 77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77218-12010 |
AE9# |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77276-12040 |
AE9# |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-12100 |
AE9# |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-12060 |
AE9# |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-12030 |
AE9# |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-12100 |
AE9# |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-12050 |
AE9# |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-12210 |
AE9# |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-12030 |
AE9# |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-12040 |
AE9# |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-14020 |
AE9# |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-14020 |
AE9# |
1 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-12140 |
AE9# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 77601-12120 |
AE9# |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-12070 |
AE9# |
1 | ||
| 77602-12090 |
AE9# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90250-08019 |
AE9# |
2 | ||
| 77614 - SEAT, FUEL TANK BAND | ||||
| 77681-12010 |
AE9# |
2 | ||
| 77614 - SEAT, FUEL TANK BAND | ||||
| 77681-12010 |
AE9# |
2 | ||
| 77642A - PROTECTOR, FUEL TANK, NO.2 | ||||
| 77642-12020 |
AE9# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20040 |
AE9# |
4 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20040 |
AE9# |
4 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20040 |
AE9# |
4 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20040 |
AE9# |
4 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-12060 |
AE9# |
2 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-12060 |
AE9# |
2 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-12060 |
AE9# |
2 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-12060 |
AE9# |
2 | ||
| 77656A - CUSHION, FUEL TANK, NO.4 | ||||
| 77654-12040 |
AE9# |
2 | ||
| 77656A - CUSHION, FUEL TANK, NO.4 | ||||
| 77654-12040 |
AE9# |
2 | ||
| Common parts | ||||
| 90119-06391 | ||||
| 90159-40155 | ||||
| 90159-50217 | ||||
| 90159-50219 | ||||
| 90159-50258 | ||||
| 90179-05020 | ||||
| 90179-10074 | ||||
| 90189-06013 | ||||
| 90460-22002 | ||||
| 90480-01385 | ||||
| 90480-01387 | ||||
| 91612-40612 | ||||
| 91651-61020 | ||||
| 91655-61040 | ||||
| 96111-20550 | ||||
| 96112-20240 | ||||
| Linked diagrams | ||||
| 2211 | ||||
| 6105 | ||||
| 8401 | ||||

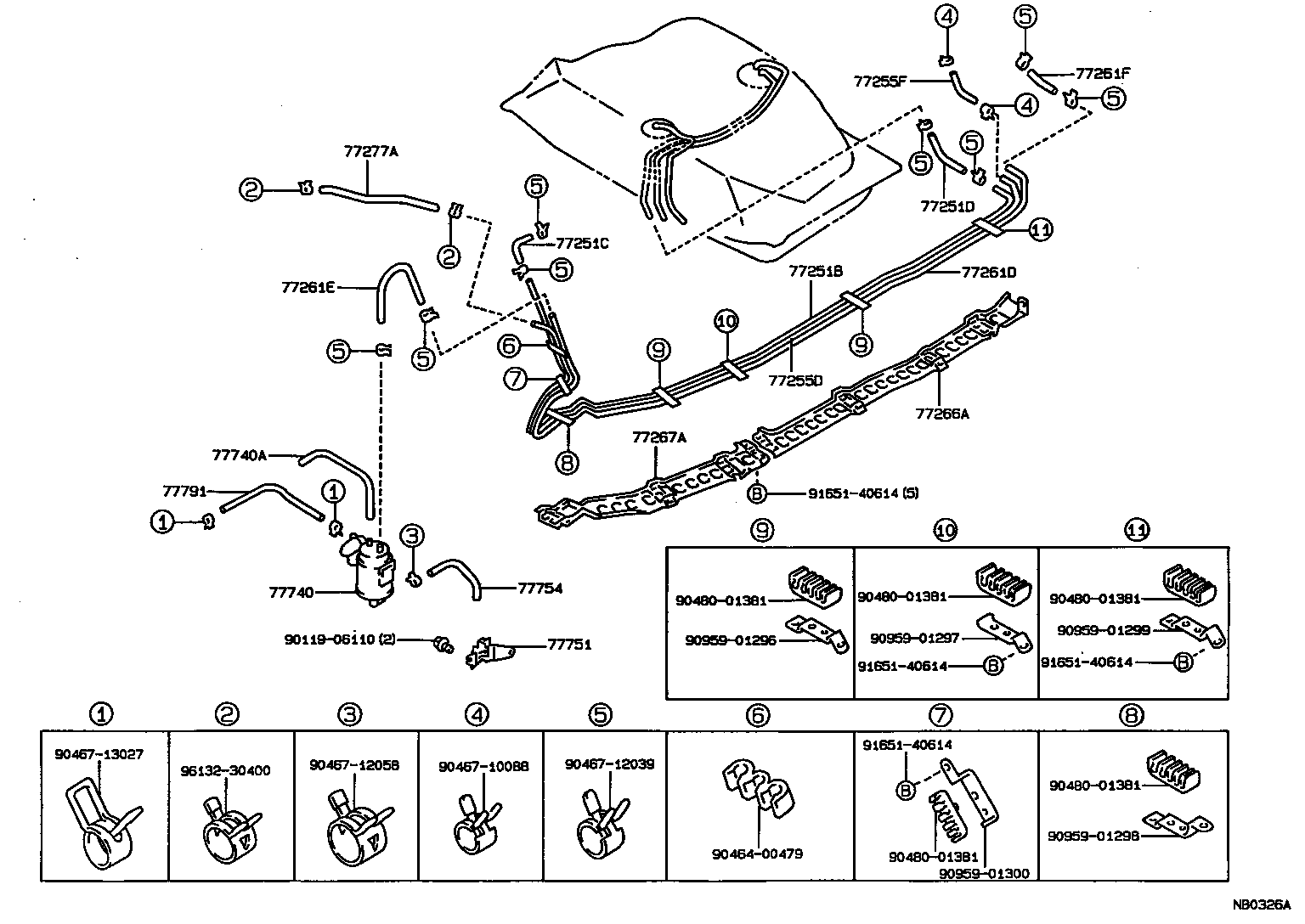

ILLUST NO. 2 OF 2(8705-8905)CBR
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-12350 |
AE91..CBR |
1 | ||
| 77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) | ||||
| 77259-12100 |
AE91..CBR |
1 | ||
| 77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE) | ||||
| 95333-06020 |
AE91..CBR *H,L=200 |
1 | ||
| 95333-06020 |
AE91..CBR *H,L=200 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-12330 |
AE91..CBR |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95333-04015 |
AE91..CBR *H,L=150 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-12250 |
AE9# |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 77259-12130 |
AE91..CBR |
1 | ||
| 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06020 |
AE9# *H,L=200 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-12030 |
AE9# |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-12060 |
AE9# |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23271-15210 |
AE91..CBR |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77704-12361 |
AE91..CBR |
1 | ||
| 77704-12360 |
AE91..CBR |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 90447-04047 |
AE91..CBR 長さ=270 |
1 | ||
| 90447-04112 |
AE91..CBR 長さ=530 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-12140 |
AE91..CBR |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-12080 |
AE91..CBR |
1 | ||
| 77791 - HOSE, OUTER VENT VALVE TO CARBURETOR | ||||
| 90445-14129 |
AE91..CBR |
1 | ||
| Common parts | ||||
| 90119-06110 | ||||
| 90464-00479 | ||||
| 90467-10088 | ||||
| 90467-12039 | ||||
| 90467-12058 | ||||
| 90467-13027 | ||||
| 90480-01381 | ||||
| 90959-01296 | ||||
| 90959-01297 | ||||
| 90959-01298 | ||||
| 90959-01299 | ||||
| 90959-01300 | ||||
| 91651-40614 | ||||
| 96132-30400 | ||||

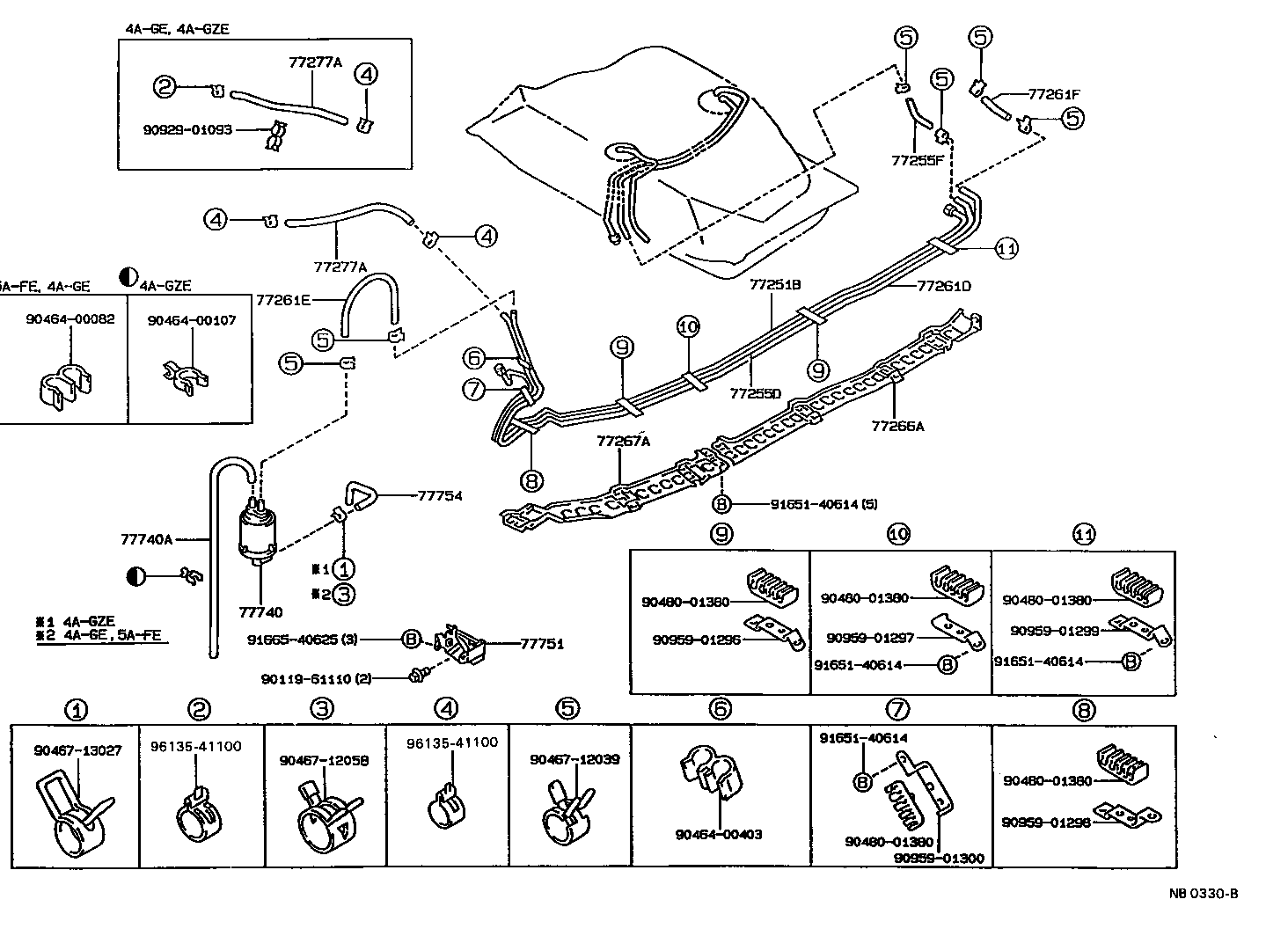

ILLUST NO. 2 OF 2(8705-8905)EFI,SPC ; (8905- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-12350 |
AE91..CBR |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-12330 |
AE91..CBR |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95333-04015 |
AE91..CBR *H,L=150 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-12250 |
AE9# |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 77259-12130 |
AE91..CBR |
1 | ||
| 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06020 |
AE9# *H,L=200 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-12030 |
AE9# |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-12060 |
AE9# |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23271-15210 |
AE91..CBR |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23271-15210 |
AE91..CBR |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77704-12361 |
AE91..CBR |
1 | ||
| 77704-12360 |
AE91..CBR |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 90447-04047 |
AE91..CBR 長さ=270 |
1 | ||
| 90447-04112 |
AE91..CBR 長さ=530 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-12140 |
AE91..CBR |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-12080 |
AE91..CBR |
1 | ||
| Common parts | ||||
| 90119-61110 | ||||
| 90464-00082 | ||||
| 90464-00107 | ||||
| 90464-00403 | ||||
| 90467-12039 | ||||
| 90467-12058 | ||||
| 90467-13027 | ||||
| 90480-01380 | ||||
| 90929-01093 | ||||
| 90959-01296 | ||||
| 90959-01297 | ||||
| 90959-01298 | ||||
| 90959-01299 | ||||
| 90959-01300 | ||||
| 91651-40614 | ||||
| 91665-40625 | ||||
| 96135-41100 | ||||
