AE91-ACPGK (1987)

Toyota Corolla Levin

Production May 1987 - May 1989
Engine 5AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )

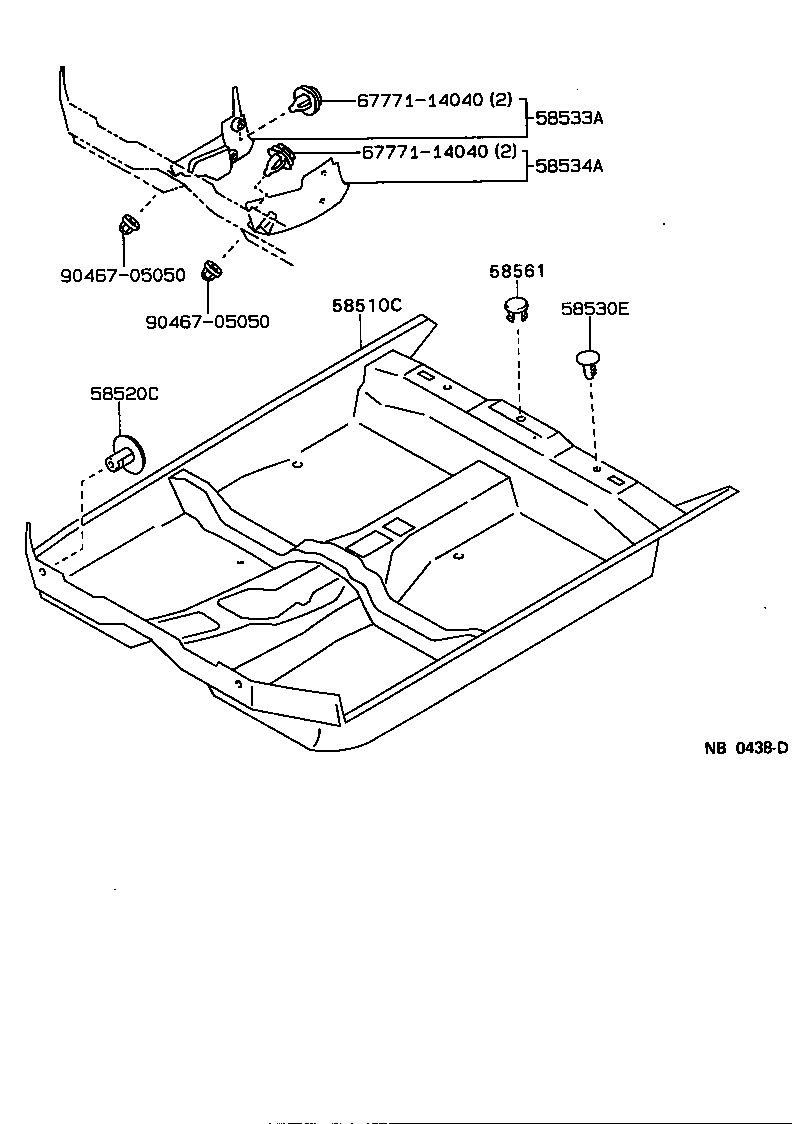

Click highlighted areas on diagram

diagram 58510C 58520C 58530E 58533A 58534A 58561 6777114040 6777114040 9046705050 9046705050
Part # Description Qty Price
58510C - CARPET ASSY, FRONT FLOOR, FRONT
58510-1A33004

AE9#..G,GTAPX,ZI

DARK BLUE,TRIM8#

 1
58510-1A34003

AE9#..G,GTAPX,ZI

ｶﾝﾚｲﾁ ｼﾖｳ,SHADOW GRAY,TRIM1#

 1
58510-1A33003

AE9#..G,GTAPX,ZI

SHADOW GRAY,TRIM1#

 1
58510-1A34004

AE9#..G,GTAPX,ZI

ｶﾝﾚｲﾁ ｼﾖｳ,DARK BLUE,TRIM8#

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-0906801

AE9#

BLACK,TRIM1#,8#

 2
58530E - CLIP(FOR FRONT FLOOR REAR CARPET)
90467-0604901

AE91..CBR,EFIS;AE9#..(G,GT,GTAPX,GTV,GTZ,ZI)..(EFI,SPC)

BLACK,TRIM1#,8#

 2
58533A - COVER, FLOOR CARPET, CENTER RH
58533-12020

AE9#

 1
58534A - MAT, TRANSMISSION COVER
58534-12010

AE9#

 1
58561 - RETAINER, FLOOR MAT, NO.1
58561-12010

AE9#

 1
Common parts
67771-14040
90467-05050
