Toyota Corolla levin AE91 MANIFOLD

AE91-ACPGK (1987)

Toyota Corolla Levin

Production May 1987 - May 1989

Engine 5AFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

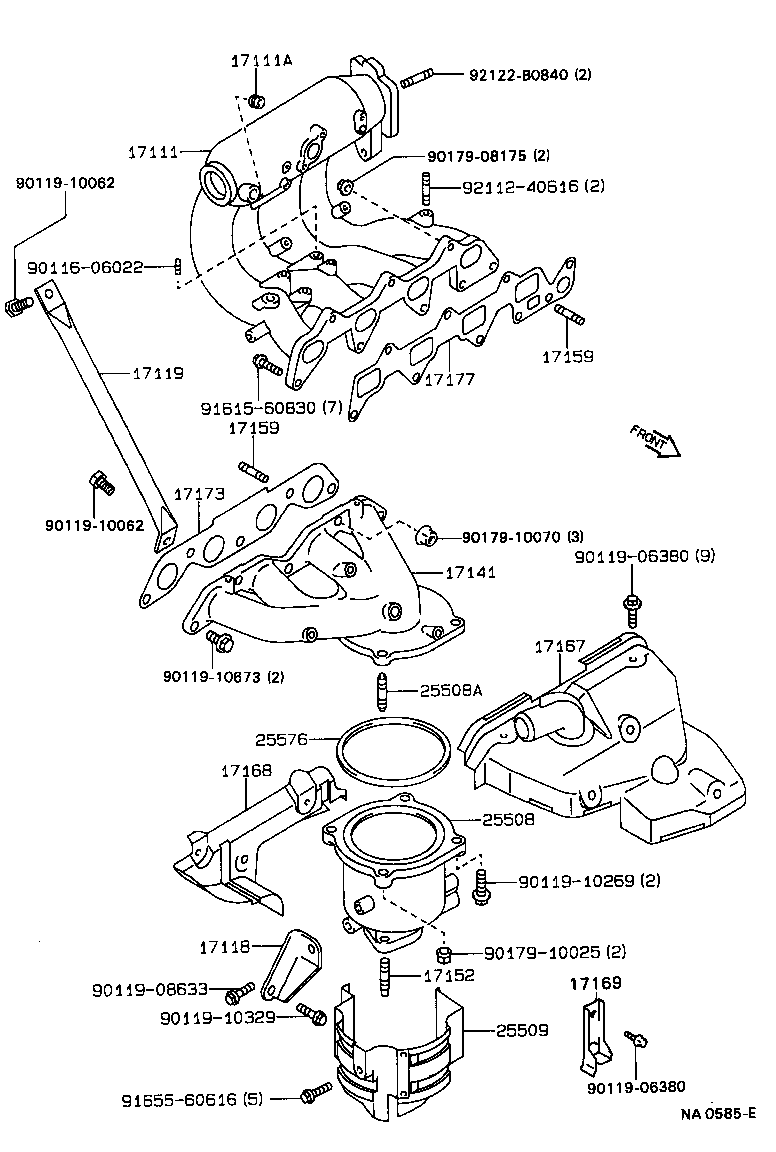

(8705-8905)5AFE

Click highlighted areas on diagram

Part #	Description	Period	Qty
17111 - MANIFOLD, INTAKE
17101-15020	5AF..AE91	05/1987 - 05/1989	1
17101-15040	5AFE..AE91	05/1987 - 05/1989	1
17111A - PLUG, NO.1
90345-51006	5AFE..AE91	05/1987 - 05/1989	4
90344-53011	5AF..AE91	05/1987 - 05/1989	1
17118 - STAY, MANIFOLD
17118-15070	5AF,5AFE..AE91	05/1987 - 06/1991	1
17119 - STAY, MANIFOLD, NO.2
17139-15030	5AFE..AE91	05/1987 - 05/1989	1
17139-15020	5AF..AE91	05/1987 - 08/1989	1
17141 - MANIFOLD, EXHAUST
17141-15120	5AF,5AFE..AE91	05/1987 - 06/1991	1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10058	5AF#..AE91	05/1987 - 05/1988	2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92112-60825	5AF#..AE91 INTAKE MANIFOLD	05/1987 - 06/1991	2
92112-61032	5AF#..AE91 EXHAUST MANIFOLD	05/1987 - 07/1989	2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92112-60825	5AF#..AE91 INTAKE MANIFOLD	05/1987 - 06/1991	2
92112-61032	5AF#..AE91 EXHAUST MANIFOLD	05/1987 - 07/1989	2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17107-15010	5AF..AE91	05/1987 - 05/1989	1
17167-15070	5AFE..AE91	05/1987 - 06/1991	1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-15010	5AF,5AFE..AE91	05/1987 - 06/1991	1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-15010	5AF#..AE91	05/1987 - 12/1989	1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17171-15020	5AF,5AFE..AE91..G,L	05/1987 - 12/1989	1
17171-16030	5AFE,5AFHE..AE91..ZI,ZS	05/1987 - 12/1989	1
25508 - CONVERTER SUB-ASSY, MANIFOLD
25508-15020	5AF,5AFE..AE91	05/1987 - 06/1991	1
25508A - BOLT, STUD(FOR MANIFOLD CONVERTER)
90116-10017	5AF#..AE91	05/1987 - 05/1988	2
25509 - INSULATOR SUB-ASSY, MANIFOLD CONVERTOR
25509-15020	5AF#..AE91	05/1987 - 01/1989	1
25576 - GASKET, MANIFOLD CONVERTER
25576-15010	5AF,5AFE..AE91	05/1987 - 06/1991	1
Common parts
90116-06022
90119-06380
90119-08633
90119-10062
90119-10269
90119-10329
90119-10673
90179-08175
90179-10025
90179-10070
91615-60830
91655-60616
92112-40616
92122-B0840

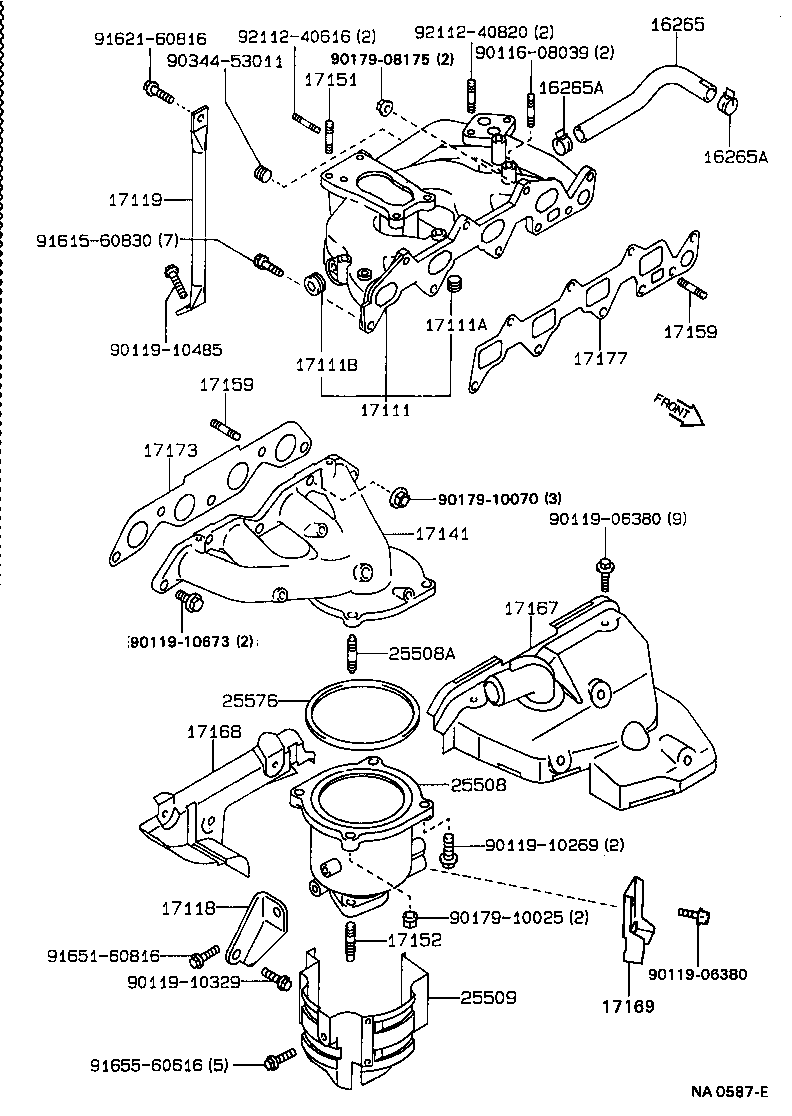

(8705-8905)5AF

Click highlighted areas on diagram

Part #	Description	Period	Qty
16265 - HOSE, INTAKE MANIFOLD WATER
16265-15020	5AF..AE91	05/1987 - 05/1989	1
16265A - CLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER)
90467-21006	5AF..AE91	11/1987 - 05/1989	2
90467-21001	5AF..AE91	05/1987 - 11/1987	2
16265A - CLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER)
90467-21006	5AF..AE91	11/1987 - 05/1989	2
90467-21001	5AF..AE91	05/1987 - 11/1987	2
17111 - MANIFOLD, INTAKE
17101-15020	5AF..AE91	05/1987 - 05/1989	1
17101-15040	5AFE..AE91	05/1987 - 05/1989	1
17111A - PLUG, NO.1
90345-51006	5AFE..AE91	05/1987 - 05/1989	4
90344-53011	5AF..AE91	05/1987 - 05/1989	1
17111B - PLUG, NO.2
90344-54003	5AF..AE91	05/1987 - 05/1989	1
17118 - STAY, MANIFOLD
17118-15070	5AF,5AFE..AE91	05/1987 - 06/1991	1
17119 - STAY, MANIFOLD, NO.2
17139-15030	5AFE..AE91	05/1987 - 05/1989	1
17139-15020	5AF..AE91	05/1987 - 08/1989	1
17141 - MANIFOLD, EXHAUST
17141-15120	5AF,5AFE..AE91	05/1987 - 06/1991	1
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
92112-60832	5AF..AE91	08/1988 - 05/1989	4
92112-40832	5AF..AE91	05/1987 - 08/1988	4
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10058	5AF#..AE91	05/1987 - 05/1988	2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92112-60825	5AF#..AE91 INTAKE MANIFOLD	05/1987 - 06/1991	2
92112-61032	5AF#..AE91 EXHAUST MANIFOLD	05/1987 - 07/1989	2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92112-60825	5AF#..AE91 INTAKE MANIFOLD	05/1987 - 06/1991	2
92112-61032	5AF#..AE91 EXHAUST MANIFOLD	05/1987 - 07/1989	2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17107-15010	5AF..AE91	05/1987 - 05/1989	1
17167-15070	5AFE..AE91	05/1987 - 06/1991	1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-15010	5AF,5AFE..AE91	05/1987 - 06/1991	1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-15010	5AF#..AE91	05/1987 - 12/1989	1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17171-15020	5AF,5AFE..AE91..G,L	05/1987 - 12/1989	1
17171-16030	5AFE,5AFHE..AE91..ZI,ZS	05/1987 - 12/1989	1
25508 - CONVERTER SUB-ASSY, MANIFOLD
25508-15020	5AF,5AFE..AE91	05/1987 - 06/1991	1
25508A - BOLT, STUD(FOR MANIFOLD CONVERTER)
90116-10017	5AF#..AE91	05/1987 - 05/1988	2
25509 - INSULATOR SUB-ASSY, MANIFOLD CONVERTOR
25509-15020	5AF#..AE91	05/1987 - 01/1989	1
25576 - GASKET, MANIFOLD CONVERTER
25576-15010	5AF,5AFE..AE91	05/1987 - 06/1991	1
Common parts
90116-08039
90119-06380
90119-10269
90119-10329
90119-10485
90119-10673
90179-08175
90179-10025
90179-10070
90344-53011
91615-60830
91621-60816
91651-60816
91655-60616
92112-40616
92112-40820
