AE91-ACPGK (1989)

Toyota Corolla Levin

Production May 1989 - Jun 1991
Engine 5AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8905- )

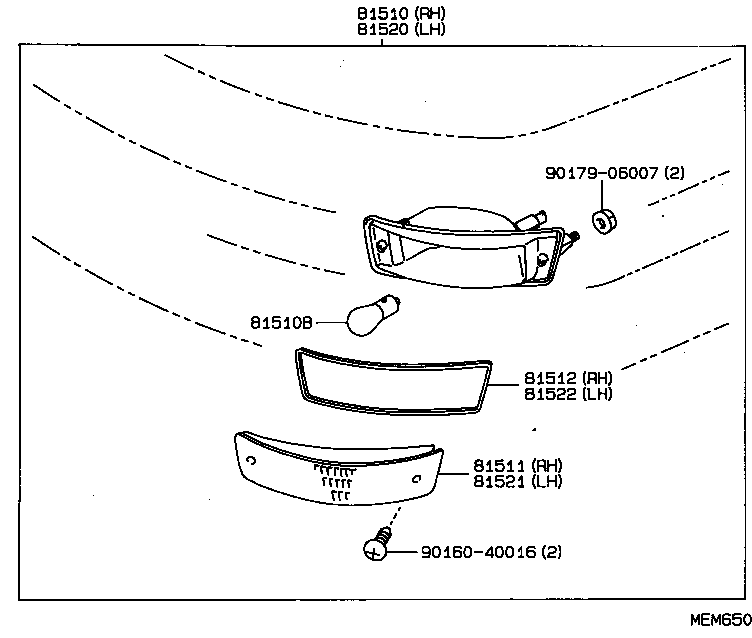

Click highlighted areas on diagram

diagram 81510 81510B 81511 81512 81520 81521 81522 9016040016 9017906007
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-80066

AE9#

 1
81510-80050

AE9#

IKI

 1
81510-80049

AE9#

小糸

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210

AE9#

12V 21W

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-12611

AE9#

 1
81511-12480

AE9#

IKI

 1
81511-12470

AE9#

小糸

 1
81512 - GASKET, FRONT TURN SIGNAL LAMP LENS, RH
81512-12480

AE9#

IKI

 1
81512-12470

AE9#

小糸

 1
81512-12611

AE9#

 1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-80050

AE9#

IKI

 1
81520-80066

AE9#

 1
81520-80049

AE9#

小糸

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-12460

AE9#

IKI

 1
81521-12450

AE9#

小糸

 1
81521-12611

AE9#

 1
81522 - GASKET, FRONT TURN SIGNAL LAMP LENS, LH
81512-12470

AE9#

小糸

 1
81512-12480

AE9#

IKI

 1
81512-12611

AE9#

 1
Common parts
90160-40016
90179-06007
