AE91-ACPGK (1989)

Toyota Corolla Levin

Production May 1989 - Jun 1991
Engine 5AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8905- )5AFE

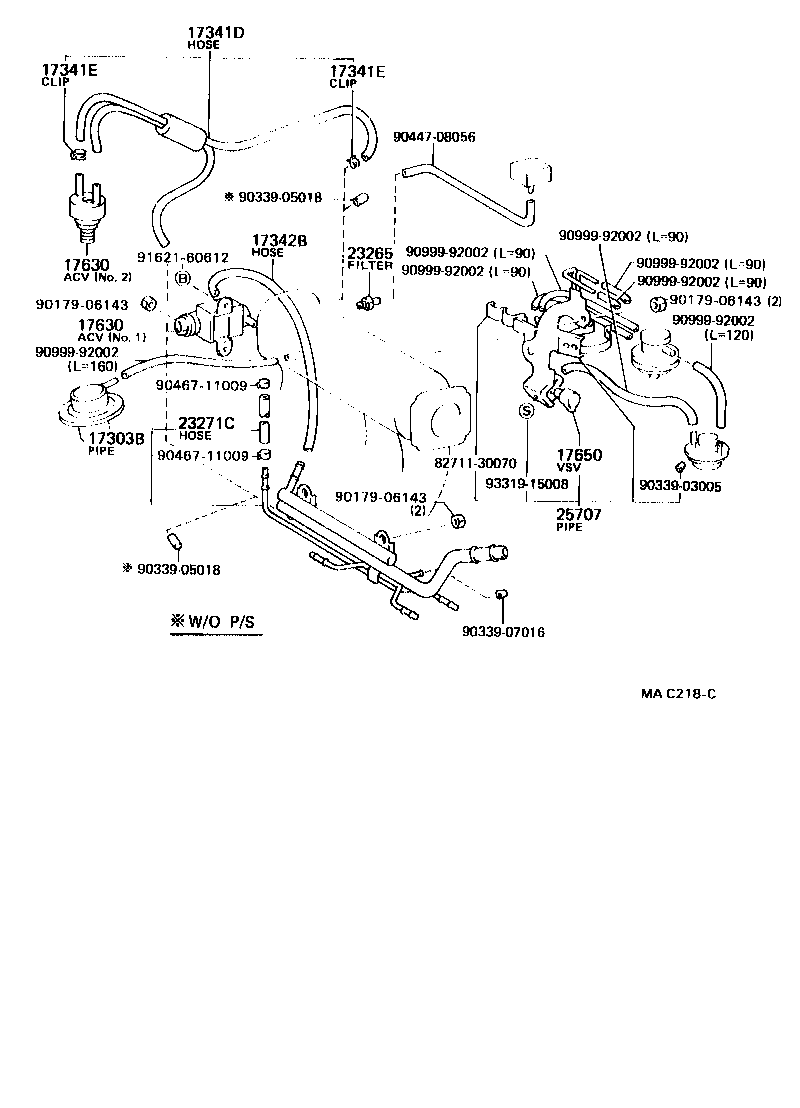

Click highlighted areas on diagram

diagram 17303B 17341D 17341E 17341E 17342B 17630 17630 17650 23265 23271C 25707 8271130070 9011906143 9017906143 9017906143 9033903005 9033905018 9033905018 9033907016 9044708056 9046711009 9046711009 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9162160612 9331915008
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-15050

5AFE..AE91

 1
17303-16131

5AF#..AE91

 1
17341D - HOSE, NO.1(FOR IDLE-UP)
17302-16010

5AF#..AE91

 1
17341-15150

5AFE..AE91

 1
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-30400

5AF#..AE91

 2
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-30400

5AF#..AE91

 2
17342B - HOSE, NO.2(FOR IDLE-UP)
17342-15070

5AFE..AE91

 1
90445-10029

5AF#..AE91

 1
17630 - VALVE ASSY, AIR CONTROL
17630-15021

5AF..AE91

 1
17630-15070

5AF#..AE91

NO.1

 1
17630-15040

5AFE..AE91

NO.1

 1
17630-15050

5AFE..AE91..G

ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)

 1
17630 - VALVE ASSY, AIR CONTROL
17630-15021

5AF..AE91

 1
17630-15070

5AF#..AE91

NO.1

 1
17630-15040

5AFE..AE91

NO.1

 1
17630-15050

5AFE..AE91..G

ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)

 1
17650 - VALVE ASSY, VACUUM SWITCHING
90910-12026

5AF..AE91

NO.1

 1
90910-12091

5AFE..AE91

 1
90910-12055

5AF..AE91

NO.2

 1
23265 - FILTER, GAS, NO.1
90917-11022

5AF#..AE91

 1
90917-11027

4AGE,5AF..AE9#

 1
90917-11021

5AFE..AE91

 1
23271C - HOSE, FUEL
95333-06020

5AF#..AE91

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-16190

5AFE..AE91

 1
25707-15180

5AF..AE91

 1
Common parts
82711-30070
90119-06143
90179-06143
90339-03005
90339-05018
90339-07016
90447-08056
90467-11009
90999-92002
91621-60612
93319-15008
