AE91-ACMNU (1987)

Toyota Corolla Levin

Production May 1987 - May 1989
Engine 5AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )

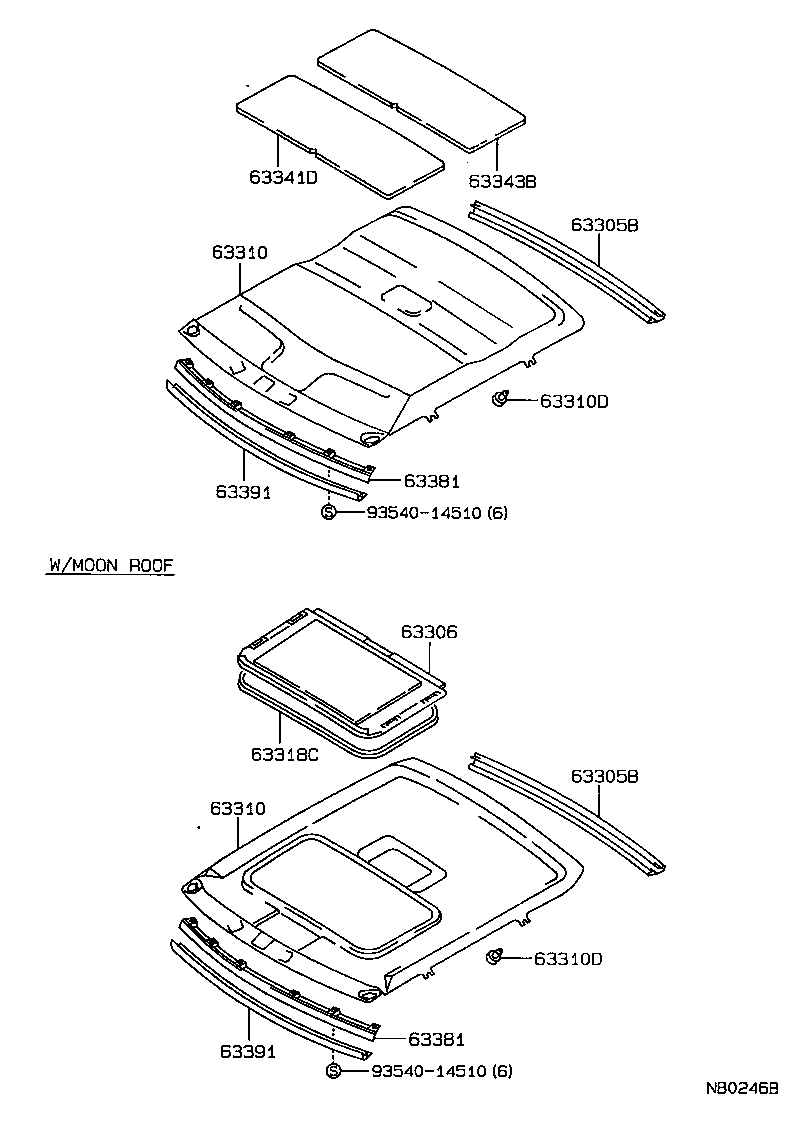

Click highlighted areas on diagram

diagram 63305B 63305B 63306 63310 63310 63310D 63310D 63318C 63341D 63343B 63381 63381 63391 63391 9354014510 9354014510
Part # Description Qty Price
63305B - TRIM SUB-ASSY, ROOF HEADLINING, REAR
63305-1212003

AE9#

SHADOW GRAY,TRIM1#

 1
63305-1212004

AE91..CBR,EFIS;AE9#..(G,GT,GTAPX,GTV,GTZ,ZI)..(EFI,SPC)

DARK BLUE,TRIM8#

 1
63305B - TRIM SUB-ASSY, ROOF HEADLINING, REAR
63305-1212003

AE9#

SHADOW GRAY,TRIM1#

 1
63305-1212004

AE91..CBR,EFIS;AE9#..(G,GT,GTAPX,GTV,GTZ,ZI)..(EFI,SPC)

DARK BLUE,TRIM8#

 1
63310 - HEADLINING ASSY, ROOF
63311-1278003

AE9#

LIGHT GRAY,TRIM1#

 1
63311-1278004

AE91..CBR,EFIS;AE9#..(G,GT,GTAPX,GTV,GTZ,ZI)..(EFI,SPC)

LIGHT BLUE,TRIM8#

 1
63310 - HEADLINING ASSY, ROOF
63311-1278003

AE9#

LIGHT GRAY,TRIM1#

 1
63311-1278004

AE91..CBR,EFIS;AE9#..(G,GT,GTAPX,GTV,GTZ,ZI)..(EFI,SPC)

LIGHT BLUE,TRIM8#

 1
63310D - CLIP, ROOF HEADLINING
90467-07034

AE9#

 4
63310D - CLIP, ROOF HEADLINING
90467-07034

AE9#

 4
63341D - PAD, ROOF SILENCER, FRONT
63343-12050

AE9#

 1
63343B - PAD, ROOF SILENCER, REAR
63343-12050

AE9#

 1
63381 - RETAINER, HEADLINING, FRONT
63381-12180

AE9#

 1
63381 - RETAINER, HEADLINING, FRONT
63381-12180

AE9#

 1
63391 - TRIM, ROOF HEADLINING, FRONT
63391-1210003

AE9#

SHADOW GRAY,TRIM1#

 1
63391-1210004

AE9#

DARK BLUE,TRIM8#

 1
63391 - TRIM, ROOF HEADLINING, FRONT
63391-1210003

AE9#

SHADOW GRAY,TRIM1#

 1
63391-1210004

AE9#

DARK BLUE,TRIM8#

 1
Common parts
93540-14510
