AE91-ACMNU (1987)

Toyota Corolla Levin

Production May 1987 - May 1989
Engine 5AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )5F

Click highlighted areas on diagram

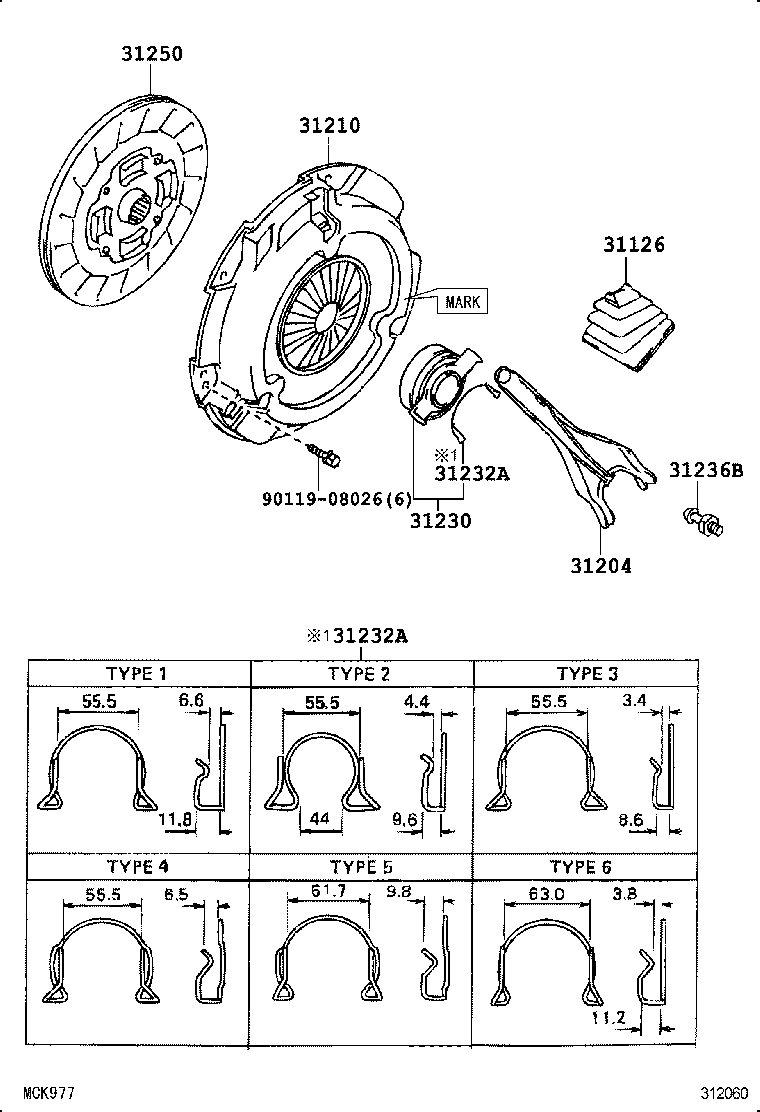

diagram 31126 31204 31210 31230 31232A 31232A 31236B 31250 9011908026
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-12051

AE9#..5F

 1
31126-12051

AE9#..5F..(CBR,SPC)

 1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-12050

AE91..5F..CBR

 1
31204-12050

AE9#..5F..(CBR,EFI)

 1
31210 - COVER ASSY, CLUTCH
31210-16101

AE91..5F..CBR

 1
31210-16100

AE91..5F..CBR

 1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-12140

AE91..5F..CBR

 1
31230-12140

AE91..5F..CBR

 1
31230-12100

AE9#..5F..(CBR,EFI)

 1
31232A - CLIP, RELEASE BEARING HUB
31232-16031

AE9#..5F..(CBR,EFI)

 1
31232-12040

AE91..5F..CBR

TYPE 3

 1
31232-12020

AE9#..5F..(CBR,EFI)

TYPE 1

 1
31232-16031

AE91..5F..CBR

TYPE 4

 1
31232-12030

AE9#..5F..(CBR,EFI)

TYPE 2

 1
31232A - CLIP, RELEASE BEARING HUB
31232-16031

AE9#..5F..(CBR,EFI)

 1
31232-12040

AE91..5F..CBR

TYPE 3

 1
31232-12020

AE9#..5F..(CBR,EFI)

TYPE 1

 1
31232-16031

AE91..5F..CBR

TYPE 4

 1
31232-12030

AE9#..5F..(CBR,EFI)

TYPE 2

 1
31236B - SUPPORT, RELEASE FORK
31236-12011

AE9#..5F..(CBR,EFI)

 1
31236-12011

AE91..5F..CBR

 1
31250 - DISC ASSY, CLUTCH
31250-12200

AE91..5F..CBR

 1
31250-12144

AE91..5F..CBR

 1
Common parts
90119-08026
