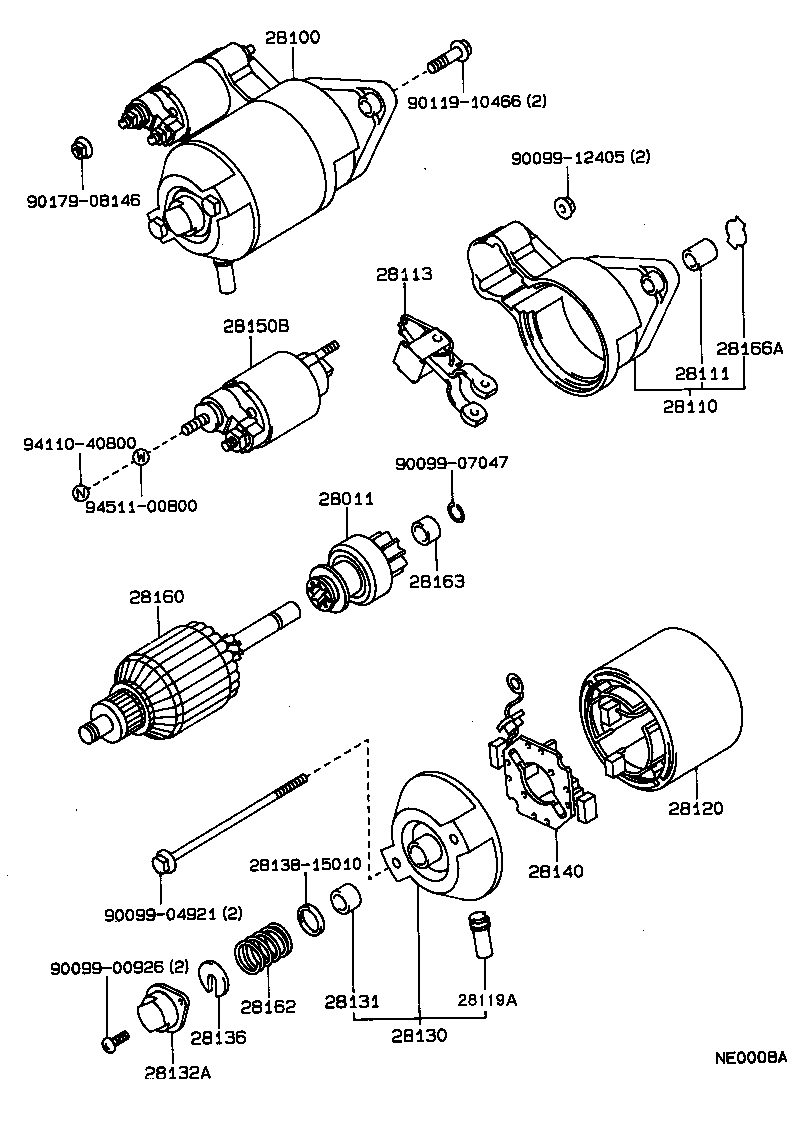

AE91-ACMNU (1987)
Toyota Corolla Levin
(8705-8711)5AF# ; (8711-8802)5AF#..ATM
12V 0.8KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-16010 |
5AF#..AE91 |
1 | ||
| 28011-70020 |
5AF#..AE91..5F |
1 | ||
| 28011-26042 |
4AGE,5AF#..AE9# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-16110 |
5AF#..AE91 12V 1.0KW,ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28100-16010 |
5AF#..AE91 12V 0.8KW |
1 | ||
| 28100-16020 |
5AF#..AE91 12V 1.0KW,ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-16010 |
5AF#..AE91 |
1 | ||
| 28110-16020 |
5AF#..AE91 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28111 - BUSH(FOR STARTER HOUSING) | ||||
| 28111-51011 |
4AGE,5AF#..AE9# |
1 | ||
| 28113 - LEVER, STARTER PINION DRIVE | ||||
| 28113-16010 |
5AF#..AE91 |
1 | ||
| 28113-16070 |
5AF#..AE91..5F |
1 | ||
| 28119A - COVER, STARTER END FRAME | ||||
| 28199-77090 |
5AF#..AE91 |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-70020 |
5AF#..AE91..5F |
1 | ||
| 28120-15010 |
5AF#..AE91 |
1 | ||
| 28120-26071 |
4AGE,5AF#..AE9# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-16010 |
5AF#..AE91 |
1 | ||
| 28130-16070 |
5AF#..AE91..5F |
1 | ||
| 28130-72010 |
5AF#..AE91 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28131 - BUSH, COMMUTATOR END FRAME | ||||
| 90099-10134 |
4AGE,5AF#..AE9# |
1 | ||
| 28132A - COVER, STARTER COMMUTATOR END FRAME | ||||
| 28132-15010 |
4AGE,5AF#..AE9# |
1 | ||
| 28136 - PLATE, STARTER LOCK | ||||
| 28136-15010 |
4AGE,5AF#..AE9# |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-26070 |
4AGE,5AF#..AE9# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28140-15010 |
4AGE,5AF#..AE9# |
1 | ||
| 28140-70020 |
5AF#..AE91 |
1 | ||
| 28140-70020 |
5AF#..AE91..5F |
1 | ||
| 28150B - SWITCH ASSY, MAGNETIC | ||||
| 28150-16110 |
5AF#..AE91 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28150-72080 |
5AF#..AE91 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28150-37010 |
4AGE,5AF#..AE9# |
1 | ||
| 28150-10020 |
5AF#..AE91 |
1 | ||
| 28150-10020 |
5AF#..AE91..5F |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-70020 |
5AF#..AE91..5F |
1 | ||
| 28160-16010 |
5AF#..AE91 |
1 | ||
| 28160-70020 |
5AF#..AE91 |
1 | ||
| 28160-26070 |
4AGE,5AF#..AE9# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28160-70020 |
5AF#..AE91..5F |
1 | ||
| 28162 - SPRING, STARTER BRAKE | ||||
| 28162-15010 |
4AGE,5AF#..AE9# |
1 | ||
| 28163 - NUT OR COLLAR, PINION STOP, STARTER | ||||
| 28163-40011 |
4AGE,5AF#..AE9# |
1 | ||
| 28163-70020 |
5AF#..AE91..5F |
1 | ||
| 28163-70020 |
5AF#..AE91 |
1 | ||
| 28166A - COVER, STARTER HOUSING | ||||
| 28166-24030 |
5AF#..AE91 |
1 | ||
| Common parts | ||||
| 28138-15010 | ||||
| 90099-00926 | ||||
| 90099-04921 | ||||
| 90099-07047 | ||||
| 90099-12405 | ||||
| 90119-10466 | ||||
| 90179-08146 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
(8705- )4AGZE,5AF#
12V 1.0KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-16010 |
5AF#..AE91 |
1 | ||
| 28011-70020 |
5AF#..AE91..5F |
1 | ||
| 28011-26042 |
4AGE,5AF#..AE9# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-16110 |
5AF#..AE91 12V 1.0KW,ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28100-16010 |
5AF#..AE91 12V 0.8KW |
1 | ||
| 28100-16020 |
5AF#..AE91 12V 1.0KW,ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-16010 |
5AF#..AE91 |
1 | ||
| 28110-16020 |
5AF#..AE91 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-70020 |
5AF#..AE91..5F |
1 | ||
| 28120-15010 |
5AF#..AE91 |
1 | ||
| 28120-26071 |
4AGE,5AF#..AE9# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-16010 |
5AF#..AE91 |
1 | ||
| 28130-16070 |
5AF#..AE91..5F |
1 | ||
| 28130-72010 |
5AF#..AE91 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-26070 |
4AGE,5AF#..AE9# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28140-15010 |
4AGE,5AF#..AE9# |
1 | ||
| 28140-70020 |
5AF#..AE91 |
1 | ||
| 28140-70020 |
5AF#..AE91..5F |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 28143-70020 |
5AF#..AE91..5F |
4 | ||
| 90099-17112 |
4AGE,5AF#..AE9# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
4 | ||
| 28143-70020 |
5AF#..AE91 |
4 | ||
| 28150B - SWITCH ASSY, MAGNETIC | ||||
| 28150-16110 |
5AF#..AE91 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28150-72080 |
5AF#..AE91 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28150-37010 |
4AGE,5AF#..AE9# |
1 | ||
| 28150-10020 |
5AF#..AE91 |
1 | ||
| 28150-10020 |
5AF#..AE91..5F |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-70020 |
5AF#..AE91..5F |
1 | ||
| 28160-16010 |
5AF#..AE91 |
1 | ||
| 28160-70020 |
5AF#..AE91 |
1 | ||
| 28160-26070 |
4AGE,5AF#..AE9# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28160-70020 |
5AF#..AE91..5F |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10113 |
4AGE,5AF#..AE9# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,NO.2 |
1 | ||
| 28253-45020 |
4AGE,5AF#..AE9# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,NO.1 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10113 |
4AGE,5AF#..AE9# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,NO.2 |
1 | ||
| 28253-45020 |
4AGE,5AF#..AE9# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,NO.1 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
4AGE,5AF#..AE9# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28228A - ROLLER, STARTER CLUTCH | ||||
| 28228-26040 |
4AGE,5AF#..AE9# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
5 | ||
| 28229A - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
4AGE,5AF#..AE9# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-45020 |
4AGE,5AF#..AE9# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| Common parts | ||||
| 90099-00902 | ||||
| 90099-00907 | ||||
| 90099-04562 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90099-35024 | ||||
| 90119-10466 | ||||
| 90179-08146 | ||||
| 93385-16014 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
(8711- )5AF#..5F ; (8802- )5AF#..ATM
12V 0.8KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-16010 |
5AF#..AE91 |
1 | ||
| 28011-70020 |
5AF#..AE91..5F |
1 | ||
| 28011-26042 |
4AGE,5AF#..AE9# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28013 - BEARING, STARTER CENTER & SHOCK ABSORBER, NO.1 | ||||
| 28013-70020 |
5AF#..AE91 |
1 | ||
| 28013-70020 |
5AF#..AE91..5F |
1 | ||
| 28013A - BEARING, STARTER CENTER & SHOCK ABSORBER, NO.2 | ||||
| 90099-10181 |
5AF#..AE91 |
1 | ||
| 90099-10181 |
5AF#..AE91..5F |
1 | ||
| 28014 - SHAFT SUB-ASSY, PLANET CARRIER | ||||
| 28014-70020 |
5AF#..AE91 |
1 | ||
| 28014-70020 |
5AF#..AE91..5F |
1 | ||
| 28014A - BUSH OR BEARING, PLANET CARRIER SHAFT | ||||
| 90099-10180 |
5AF#..AE91 |
1 | ||
| 90099-10180 |
5AF#..AE91..5F |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-16110 |
5AF#..AE91 12V 1.0KW,ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28100-16010 |
5AF#..AE91 12V 0.8KW |
1 | ||
| 28100-16020 |
5AF#..AE91 12V 1.0KW,ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-16010 |
5AF#..AE91 |
1 | ||
| 28110-16020 |
5AF#..AE91 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28110A - BEARING(FOR STARTER HOUSING) | ||||
| 90099-10182 |
5AF#..AE91..5F |
1 | ||
| 90099-10182 |
5AF#..AE91 |
1 | ||
| 28113 - LEVER, STARTER PINION DRIVE | ||||
| 28113-16010 |
5AF#..AE91 |
1 | ||
| 28113-16070 |
5AF#..AE91..5F |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-70020 |
5AF#..AE91..5F |
1 | ||
| 28120-15010 |
5AF#..AE91 |
1 | ||
| 28120-26071 |
4AGE,5AF#..AE9# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-16010 |
5AF#..AE91 |
1 | ||
| 28130-16070 |
5AF#..AE91..5F |
1 | ||
| 28130-72010 |
5AF#..AE91 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28130C - BEARING, STARTER FLANGE | ||||
| 90099-10183 |
5AF#..AE91 |
1 | ||
| 90099-10183 |
5AF#..AE91..5F |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-26070 |
4AGE,5AF#..AE9# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28140-15010 |
4AGE,5AF#..AE9# |
1 | ||
| 28140-70020 |
5AF#..AE91 |
1 | ||
| 28140-70020 |
5AF#..AE91..5F |
1 | ||
| 28142A - STARTER KIT | ||||
| 28142-70020 |
5AF#..AE91..5F |
2 | ||
| 28142-70020 |
5AF#..AE91 |
2 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 28143-70020 |
5AF#..AE91..5F |
4 | ||
| 90099-17112 |
4AGE,5AF#..AE9# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
4 | ||
| 28143-70020 |
5AF#..AE91 |
4 | ||
| 28150B - SWITCH ASSY, MAGNETIC | ||||
| 28150-16110 |
5AF#..AE91 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28150-72080 |
5AF#..AE91 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28150-37010 |
4AGE,5AF#..AE9# |
1 | ||
| 28150-10020 |
5AF#..AE91 |
1 | ||
| 28150-10020 |
5AF#..AE91..5F |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-70020 |
5AF#..AE91..5F |
1 | ||
| 28160-16010 |
5AF#..AE91 |
1 | ||
| 28160-70020 |
5AF#..AE91 |
1 | ||
| 28160-26070 |
4AGE,5AF#..AE9# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28160-70020 |
5AF#..AE91..5F |
1 | ||
| 28163 - NUT OR COLLAR, PINION STOP, STARTER | ||||
| 28163-40011 |
4AGE,5AF#..AE9# |
1 | ||
| 28163-70020 |
5AF#..AE91..5F |
1 | ||
| 28163-70020 |
5AF#..AE91 |
1 | ||
| 28177 - PLATE(FOR STARTER ARMATURE) | ||||
| 28177-70020 |
5AF#..AE91 |
1 | ||
| 28177-70020 |
5AF#..AE91..5F |
1 | ||
| 28199A - PROTECTOR, DUST STARTER | ||||
| 28199-70020 |
5AF#..AE91..5F |
1 | ||
| 28199-70020 |
5AF#..AE91 |
1 | ||
| 28199-77090 |
5AF..AE91 |
1 | ||
| 28255 - GEAR, PLANET | ||||
| 28255-70020 |
5AF#..AE91..5F |
3 | ||
| 28255-70020 |
5AF#..AE91 |
3 | ||
| 28256 - GEAR, STARTER INTERNAL | ||||
| 28256-70020 |
5AF#..AE91..5F |
1 | ||
| 28256-70020 |
5AF#..AE91 |
1 | ||
| Common parts | ||||
| 28176-15090 | ||||
| 90096-90030 | ||||
| 90099-01538 | ||||
| 90099-01539 | ||||
| 90099-01542 | ||||
| 90099-04373 | ||||
| 90099-05178 | ||||
| 90099-07124 | ||||
| 90099-12405 | ||||
| 90099-14092 | ||||
| 90119-10466 | ||||
| 90179-08146 | ||||
| 94110-40800 | ||||
| 95411-00800 | ||||
