AE86-ESPQF (1985)
Toyota Corolla Levin
Production
May 1985
-
Apr 1987
Engine
4AGEU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8505- )

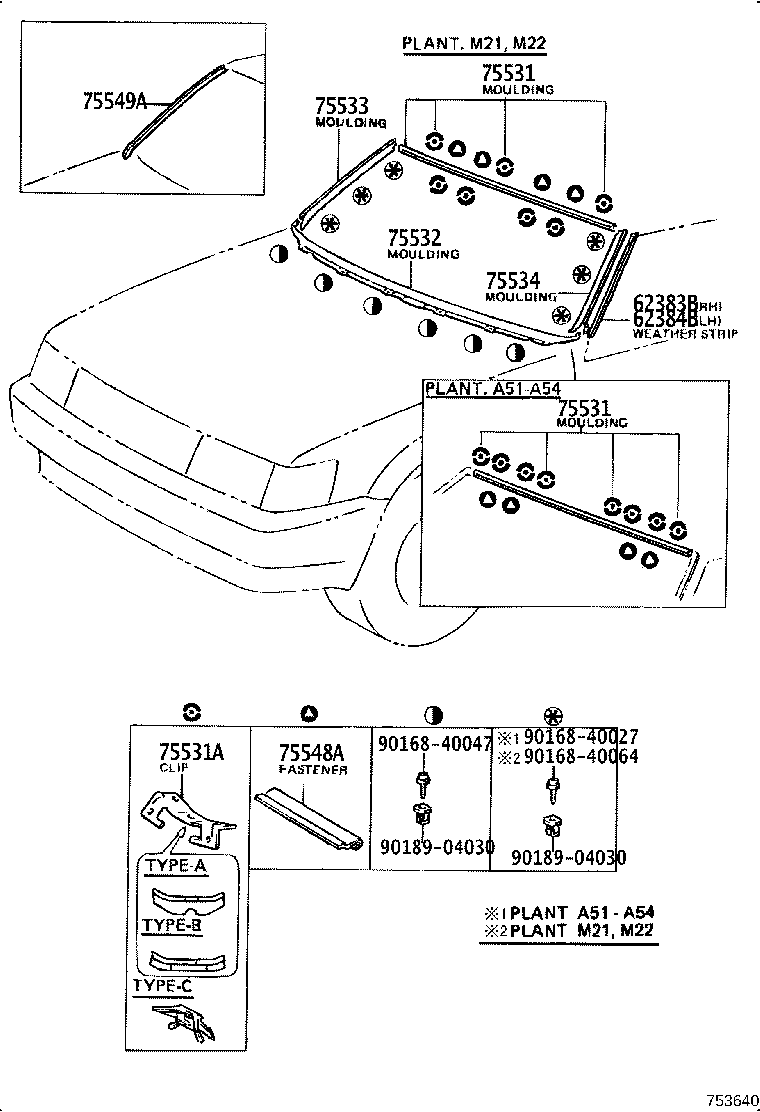

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62383B - WEATHERSTRIP, ROOF SIDE RAIL, RH | ||||
| 62383-12010 |
AE8# |
1 | ||
| 62384B - WEATHERSTRIP, ROOF SIDE RAIL, LH | ||||
| 62384-12010 |
AE8# |
1 | ||
| 75531 - MOULDING, WINDSHIELD, OUTER UPPER | ||||
| 75531-12270 |
AE8#..APX,GL,GT,GTV,SR PLANT.A51-A54 |
1 | ||
| 75531-12271 |
AE8#..APX,GL,GT,GTV,SR PLANT.A51-A54 |
1 | ||
| 75531-12210 |
AE8#..APX,GL,GT,GTV,SR PLANT.M21,M22 |
1 | ||
| 75531 - MOULDING, WINDSHIELD, OUTER UPPER | ||||
| 75531-12270 |
AE8#..APX,GL,GT,GTV,SR PLANT.A51-A54 |
1 | ||
| 75531-12271 |
AE8#..APX,GL,GT,GTV,SR PLANT.A51-A54 |
1 | ||
| 75531-12210 |
AE8#..APX,GL,GT,GTV,SR PLANT.M21,M22 |
1 | ||
| 75531A - CLIP, WINDSHIELD MOULDING SET, NO.1 | ||||
| 75545-12050 |
AE8# TYPE-C |
4 | ||
| 75546-14080 |
AE8# TYPE-A |
4 | ||
| 75546-14080 |
AE8# TYPE-A |
3 | ||
| 75546-12030 |
AE8# TYPE-B |
5 | ||
| 75546-12030 |
AE8# TYPE-B |
4 | ||
| 75532 - MOULDING, WINDSHIELD, LOWER | ||||
| 75535-12130 |
AE8# |
1 | ||
| 75533 - MOULDING, WINDSHIELD, OUTSIDE RH | ||||
| 75533-12200 |
AE8#..APX,GL,GT,GTV,SR |
1 | ||
| 75534 - MOULDING, WINDSHIELD, OUTSIDE LH | ||||
| 75534-12130 |
AE8#..APX,GL,GT,GTV,SR |
1 | ||
| 75548A - FASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1 | ||||
| 75548-12060 |
AE8# |
4 | ||
| 75549A - MOULDING, WINDSHIELD OUTSIDE SUB | ||||
| 75549-12030 |
AE8# COLD SPEC |
1 | ||
| Common parts | ||||
| 90168-40027 | ||||
| 90168-40047 | ||||
| 90168-40064 | ||||
| 90189-04030 | ||||
