AE86-ESMVF (1983)
Toyota Corolla Levin
ILLUST NO. 1 OF 2(8305-8401)AE86..2D ; (8305-8401)GTV,SE,SR ; (8401- )APX,GT,GTV,SE,SR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AE8#..APX,GT,GTV,SE,SR 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
12 | ||
| 99132-12034 |
AE8# 12V 3.4W,12V 3.4W |
11 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AE8#..APX,GT,GTV,SE,SR 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
12 | ||
| 99132-12034 |
AE8# 12V 3.4W,12V 3.4W |
11 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83133-12750 |
AE86..APX *DS |
1 | ||
| 83133-12710 |
AE86..APX |
1 | ||
| 83133-12710 |
AE86..2D..APX |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AE8#..APX,GT,GTV,SE,SR BULB=12V 1.4W |
13 | ||
| 83101-14030 |
AE8# BULB=12V 3.4W |
11 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AE8#..APX,GT,GTV,SE,SR BULB=12V 1.4W |
13 | ||
| 83101-14030 |
AE8# BULB=12V 3.4W |
11 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-1E170 |
AE86..APX *DS |
1 | ||
| 83247-1E250 |
AE86..2D..APX |
1 | ||
| 83247-1E250 |
AE86..APX |
1 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-24030 |
AE86..APX 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,12V 3.4W,W/*DS |
4 | ||
| 83109-24040 |
AE86..APX 12V 1.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,12V 1.4W |
1 | ||
| 83109-12010 |
AE8# 12V 3.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ,12V 3.4W,W/*AS |
4 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-1A230 |
AE86..2D..APX |
1 | ||
| 83110-1A230 |
AE86..APX |
1 | ||
| 83110-1A231 |
AE86..APX |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-12730 |
AE86..APX *DS |
1 | ||
| 83132-12780 |
AE86..APX W/INDICATOR LENS |
1 | ||
| 83132-12780 |
AE86..2D..APX W/INDICATOR LENS |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-12770 |
AE86..2D..APX |
1 | ||
| 83242-12770 |
AE86..APX |
1 | ||
| 83242-12771 |
AE86..APX |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-12651 |
AE8#..APX,GT,GTV,SE,SR |
1 | ||
| 83243-12650 |
AE86..2D..APX |
1 | ||
| 83243-12650 |
AE86..APX |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-1A290 |
AE86..2D;AE86..GTV |
1 | ||
| 83244-1A290 |
AE86 |
1 | ||
| 83244-1A071 |
AE86 |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-12351 |
AE8#..APX,GT,GTV,SE,SR |
1 | ||
| 83910-12350 |
AE8#..APX,GT,GTV,SE,SR |
1 | ||
| Common parts | ||||
| 90099-00153 | ||||
| 90099-00909 | ||||
| 90099-00929 | ||||
| 90099-00939 | ||||
| 90183-05103 | ||||
| 93567-55016 | ||||
| 93568-15018 | ||||

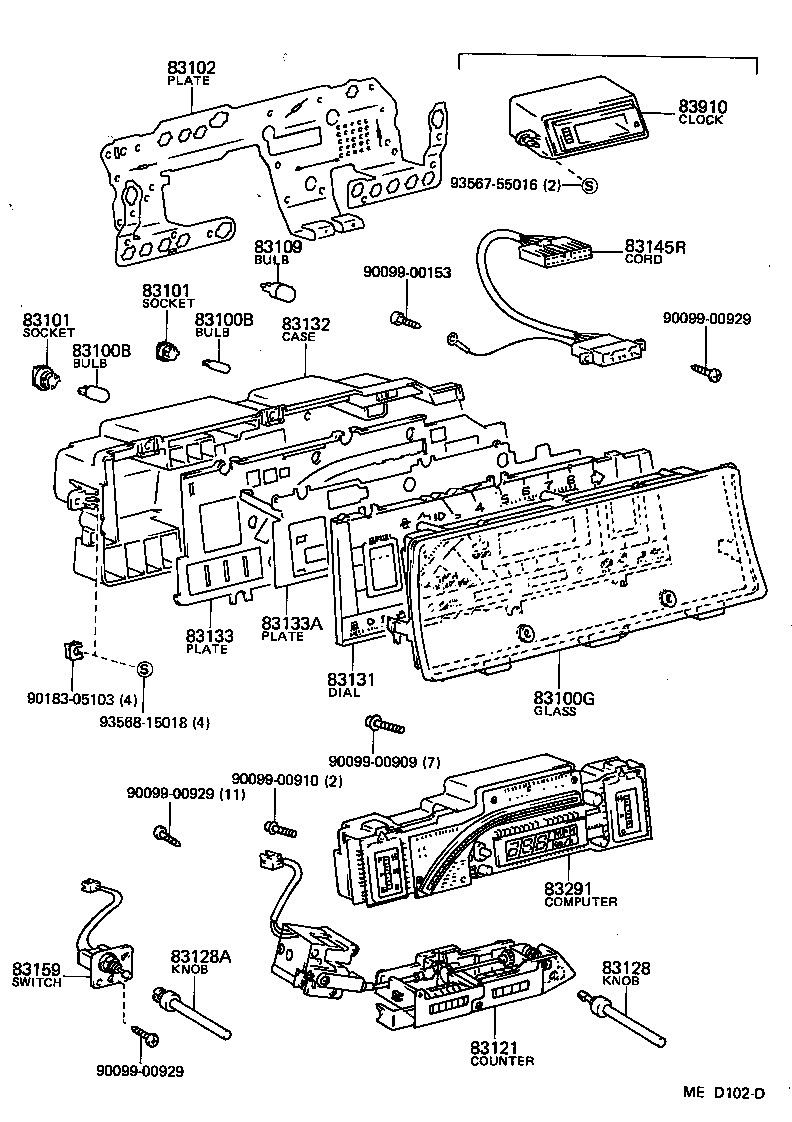

ILLUST NO. 1 OF 2(8305- )APX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AE8#..APX,GT,GTV,SE,SR 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
12 | ||
| 99132-12034 |
AE8# 12V 3.4W,12V 3.4W |
11 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AE8#..APX,GT,GTV,SE,SR 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
12 | ||
| 99132-12034 |
AE8# 12V 3.4W,12V 3.4W |
11 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83133-12750 |
AE86..APX *DS |
1 | ||
| 83133-12710 |
AE86..APX |
1 | ||
| 83133-12710 |
AE86..2D..APX |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AE8#..APX,GT,GTV,SE,SR BULB=12V 1.4W |
13 | ||
| 83101-14030 |
AE8# BULB=12V 3.4W |
11 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AE8#..APX,GT,GTV,SE,SR BULB=12V 1.4W |
13 | ||
| 83101-14030 |
AE8# BULB=12V 3.4W |
11 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-1E170 |
AE86..APX *DS |
1 | ||
| 83247-1E250 |
AE86..2D..APX |
1 | ||
| 83247-1E250 |
AE86..APX |
1 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-24030 |
AE86..APX 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,12V 3.4W,W/*DS |
4 | ||
| 83109-24040 |
AE86..APX 12V 1.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,12V 1.4W |
1 | ||
| 83109-12010 |
AE8# 12V 3.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ,12V 3.4W,W/*AS |
4 | ||
| 83121 - COUNTER, TOTAL | ||||
| 83121-12030 |
AE86..APX |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-32030 |
AE86..APX |
1 | ||
| 83128A - KNOB, METER | ||||
| 83128-32050 |
AE86..APX |
1 | ||
| 83131 - DIAL, METER, NO.1 | ||||
| 83131-12050 |
AE86..APX |
1 | ||
| 83131-12051 |
AE86..APX |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-12730 |
AE86..APX *DS |
1 | ||
| 83132-12780 |
AE86..APX W/INDICATOR LENS |
1 | ||
| 83132-12780 |
AE86..2D..APX W/INDICATOR LENS |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-12810 |
AE86..APX |
1 | ||
| 83133A - PLATE, COMBINATION METER, NO.2 | ||||
| 83133-12830 |
AE86..APX |
1 | ||
| 83145R - CORD, METER | ||||
| 83247-1E550 |
AE86..APX |
1 | ||
| 83159 - SWITCH, METER, NO.1 | ||||
| 83159-12030 |
AE86..APX |
1 | ||
| 83291 - COMPUTER, COMBINATION METER | ||||
| 83291-12021 |
AE86..APX |
1 | ||
| 83291-12022 |
AE86..APX |
1 | ||
| 83291-12020 |
AE86..APX |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-12351 |
AE8#..APX,GT,GTV,SE,SR |
1 | ||
| 83910-12350 |
AE8#..APX,GT,GTV,SE,SR |
1 | ||
| Common parts | ||||
| 90099-00153 | ||||
| 90099-00909 | ||||
| 90099-00910 | ||||
| 90099-00929 | ||||
| 90183-05103 | ||||
| 93567-55016 | ||||
| 93568-15018 | ||||
ILLUST NO. 2 OF 2(8305- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
AE8# |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-12220 |
AE86..5F |
1 | ||
| Common parts | ||||
| 83791-12010 | ||||
| 83791-12020 | ||||
| 91651-40616 | ||||
