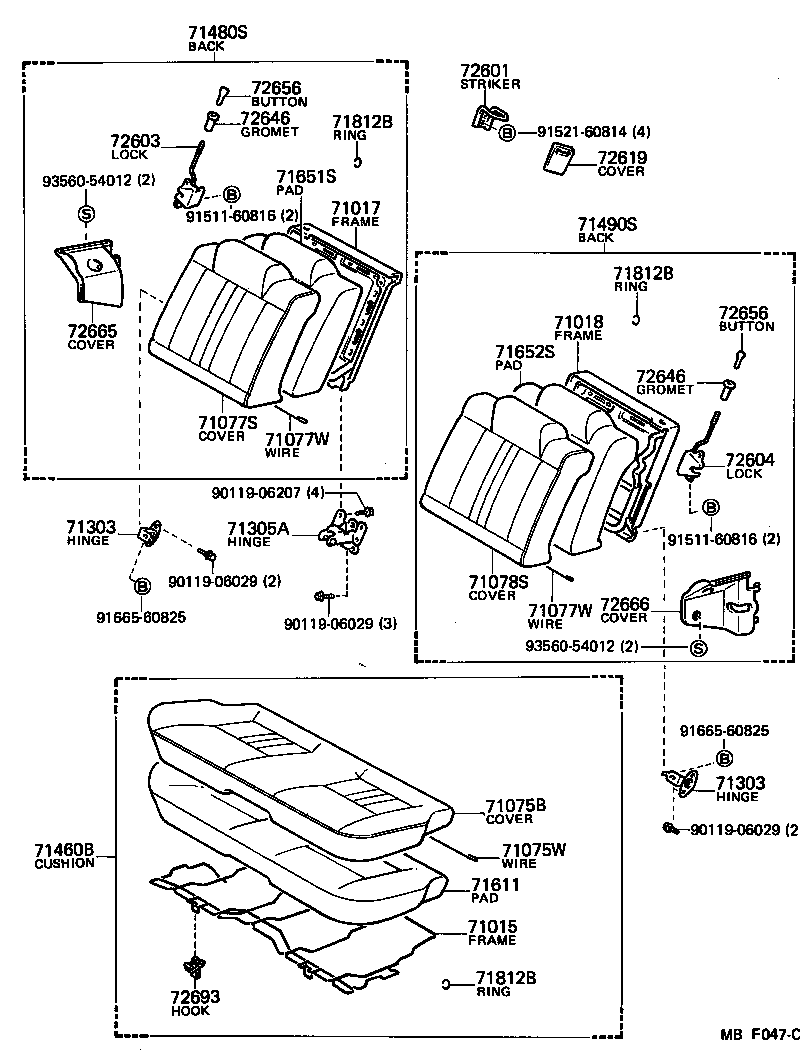

AE86-ESMVF (1983)
Toyota Corolla Levin
(8305-8505)APX,GTV,SE,SR ; (8505- )APX,GTV,SR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015 - FRAME SUB-ASSY, REAR SEAT CUSHION | ||||
| 71015-12240 |
AE8# |
1 | ||
| 71015-12241 |
AE8# |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71202-12080 |
AE86..APX |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71203-12060 |
AE86..APX |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71065-1A17002 |
AE86..2D..APX FB,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71065-1A73001 |
AE86..2D..APX FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71065-1A17004 |
AE86..2D..APX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71075W - WIRE, REAR SEAT CUSHION COVER | ||||
| 90580-20009 |
AE8# L=970 |
1 | ||
| 90580-20133 |
AE8# L=1240 |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-1E47004 |
AE86..APX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-1E47002 |
AE86..APX FB,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71077-1H34003 |
AE86..APX FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71077W - WIRE, REAR SEAT BACK COVER | ||||
| 90580-20032 |
AE8#..APX,GTV,SE,SR L=320 |
2 | ||
| 90580-29005 |
AE8#..APX,GTV,SE,SR L=435 |
2 | ||
| 71077W - WIRE, REAR SEAT BACK COVER | ||||
| 90580-20032 |
AE8#..APX,GTV,SE,SR L=320 |
2 | ||
| 90580-29005 |
AE8#..APX,GTV,SE,SR L=435 |
2 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-1268004 |
AE86..APX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71078-1268002 |
AE86..APX FB,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71078-1A26003 |
AE86..APX FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-12040 |
AE8#..APX,GTV,SE,SR |
2 | ||
| 71303-12040 |
AE8#..APX,GTV,SR |
2 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-12040 |
AE8#..APX,GTV,SE,SR |
2 | ||
| 71303-12040 |
AE8#..APX,GTV,SR |
2 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-12050 |
AE8#..APX,GTV,SE,SR |
1 | ||
| 71305-12050 |
AE8#..APX,GTV,SR |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-1A82002 |
AE86..2D..APX FB,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71460-1A82004 |
AE86..2D..APX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71560-1A73101 |
AE86..2D..APX FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71560-1A73001 |
AE86..2D..APX FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-1H42003 |
AE86..APX FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71480-1E50002 |
AE86..APX FB,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71480-1E50004 |
AE86..APX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-1269002 |
AE86..APX FB,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71490-1269004 |
AE86..APX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71490-1A32003 |
AE86..APX FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-12390 |
AE8#..2D |
1 | ||
| 71611-12410 |
AE8#..2D |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-12410 |
AE86..APX |
1 | ||
| 71651-12380 |
AE86..APX |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-12290 |
AE86..APX |
1 | ||
| 71652-12310 |
AE86..APX |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90467-18071 |
AE8# |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90467-18071 |
AE8# |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90467-18071 |
AE8# |
1 | ||
| 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK | ||||
| 72601-12070 |
AE8#..APX,GTV,SE,SR |
2 | ||
| 72601-12070 |
AE8#..APX,GTV,SR |
2 | ||
| 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72630-12080 |
AE8#..APX,GTV,SR |
1 | ||
| 72630-12080 |
AE8#..APX,GTV,SE,SR |
1 | ||
| 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72640-12070 |
AE8#..APX,GTV,SE,SR |
1 | ||
| 72640-12070 |
AE8#..APX,GTV,SR |
1 | ||
| 72619 - COVER, REAR SEAT BACK LOCK STRIKER | ||||
| 72615-1203001 |
AE8#..2D..(APX,SE) BLACK,BLACK,TRIM2# |
2 | ||
| 72615-1203002 |
AE8#..APX,GTV,SE,SR DEEP MAROON,RED/MAROON,TRIM3# |
2 | ||
| 72615-1203004 |
AE8#..APX,GTV,SE,SR BLUE,BLUE,TRIM8# |
2 | ||
| 72615-1203001 |
AE8#..APX,GTV,SR BLACK,BLACK,TRIM2# |
2 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-1201002 |
AE8#..APX,GTV,SE,SR DEEP MAROON,RED/MAROON,TRIM3# |
2 | ||
| 72646-1201004 |
AE8#..APX,GTV,SE,SR BLUE,BLUE,TRIM8# |
2 | ||
| 72646-1201001 |
AE8#..APX,GTV,SR BLACK,BLACK,TRIM2# |
2 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-1201002 |
AE8#..APX,GTV,SE,SR DEEP MAROON,RED/MAROON,TRIM3# |
2 | ||
| 72646-1201004 |
AE8#..APX,GTV,SE,SR BLUE,BLUE,TRIM8# |
2 | ||
| 72646-1201001 |
AE8#..APX,GTV,SR BLACK,BLACK,TRIM2# |
2 | ||
| 72656 - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-1201004 |
AE8#..APX,GTV,SE,SR BLUE,BLUE,TRIM8# |
2 | ||
| 72656-2001014 |
AE8#..APX,GTV,SE,SR BLUE,BLUE,TRIM8# |
2 | ||
| 72661-1201001 |
AE8#..APX,GTV,SR BLACK,BLACK,TRIM2# |
2 | ||
| 72661-1201002 |
AE8#..APX,GTV,SE,SR DEEP MAROON,RED/MAROON,TRIM3# |
2 | ||
| 72656-2001022 |
AE8#..APX,GTV,SE,SR DEEP MAROON,RED/MAROON,TRIM3# |
2 | ||
| 72656 - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-1201004 |
AE8#..APX,GTV,SE,SR BLUE,BLUE,TRIM8# |
2 | ||
| 72656-2001014 |
AE8#..APX,GTV,SE,SR BLUE,BLUE,TRIM8# |
2 | ||
| 72661-1201001 |
AE8#..APX,GTV,SR BLACK,BLACK,TRIM2# |
2 | ||
| 72661-1201002 |
AE8#..APX,GTV,SE,SR DEEP MAROON,RED/MAROON,TRIM3# |
2 | ||
| 72656-2001022 |
AE8#..APX,GTV,SE,SR DEEP MAROON,RED/MAROON,TRIM3# |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12010 |
AE8# |
2 | ||
| Common parts | ||||
| 90119-06029 | ||||
| 90119-06207 | ||||
| 91511-60816 | ||||
| 91521-60814 | ||||
| 91665-60825 | ||||
| 93560-54012 | ||||
