AE86-ESMVF (1983)

Toyota Corolla Levin

Production May 1983 - Apr 1987
Engine 4AGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )

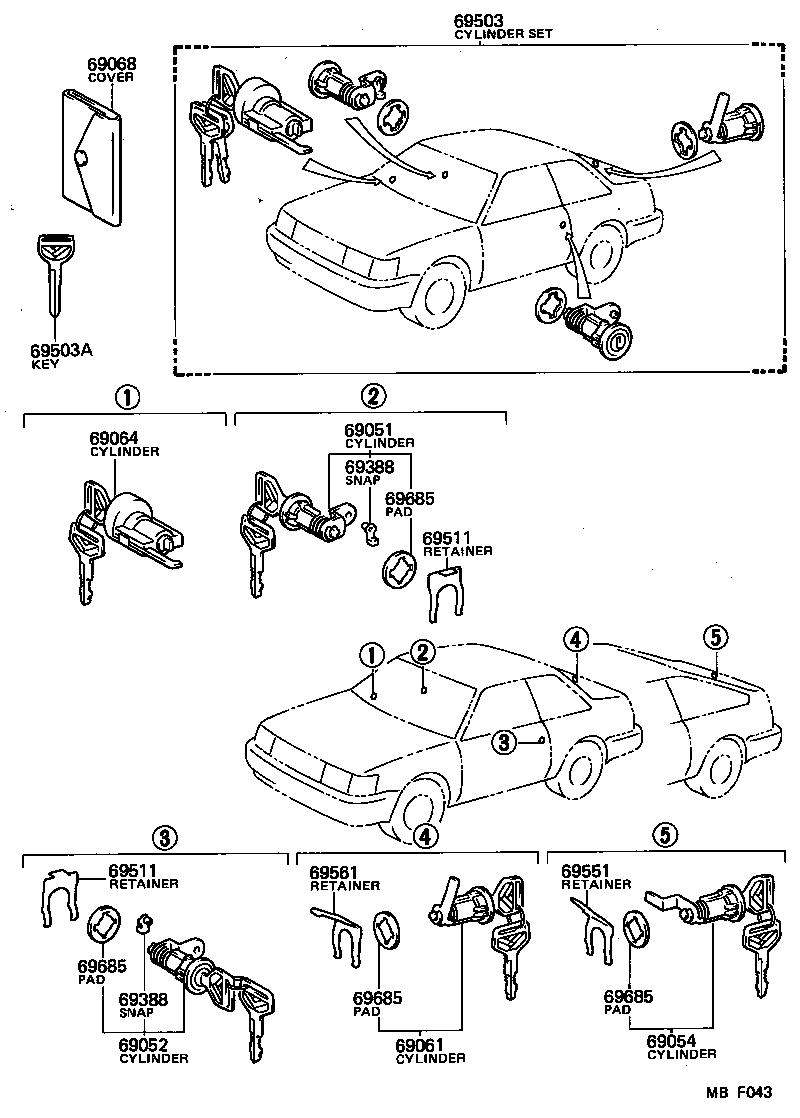

Click highlighted areas on diagram

diagram 69051 69052 69054 69061 69064 69068 69388 69388 69503 69503A 69511 69511 69551 69561 69685 69685 69685 69685
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-12140

AE8#

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-12140

AE8#

 1
69061 - CYLINDER & KEY SET, LUGGAGE LOCK
69055-12180

AE8#..2D

 1
69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-16040

AE8#

 1
69057-12120

AE8#

 1
69068 - COVER SUB-ASSY, KEY
69555-20010

AE8#

 1
69388 - SNAP, ROD(FOR DOOR LOCK)
69759-20080

AE8#

LH

 1
69759-20090

AE8#

RH

 1
69388 - SNAP, ROD(FOR DOOR LOCK)
69759-20080

AE8#

LH

 1
69759-20090

AE8#

RH

 1
69503 - CYLINDER SET, LOCK
69005-12460

AE8#..2D

 1
69005-1A090

AE8#..2D

 1
69503A - KEY, BLANK
90999-00085

AE8#

ﾏｽﾀｰｷｰ

 1
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-32010

AE8#

 2
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-32010

AE8#

 2
69561 - RETAINER, LUGGAGE COMPARTMENT OR BACK DOOR LOCK CYLINDE
69561-12140

AE8#..2D

 1
69685 - PAD, LOCK CYLINDER
69513-32010

AE8#

FR DOOR

 2
69563-32010

AE8#

LUGGAGE OR BACK DOOR

 1
69685 - PAD, LOCK CYLINDER
69513-32010

AE8#

FR DOOR

 2
69563-32010

AE8#

LUGGAGE OR BACK DOOR

 1
69685 - PAD, LOCK CYLINDER
69513-32010

AE8#

FR DOOR

 2
69563-32010

AE8#

LUGGAGE OR BACK DOOR

 1
69685 - PAD, LOCK CYLINDER
69513-32010

AE8#

FR DOOR

 2
69563-32010

AE8#

LUGGAGE OR BACK DOOR

 1
