AE86-ESMVF (1983)

Toyota Corolla Levin

Production May 1983 - Apr 1987
Engine 4AGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305-8505)APX

Click highlighted areas on diagram

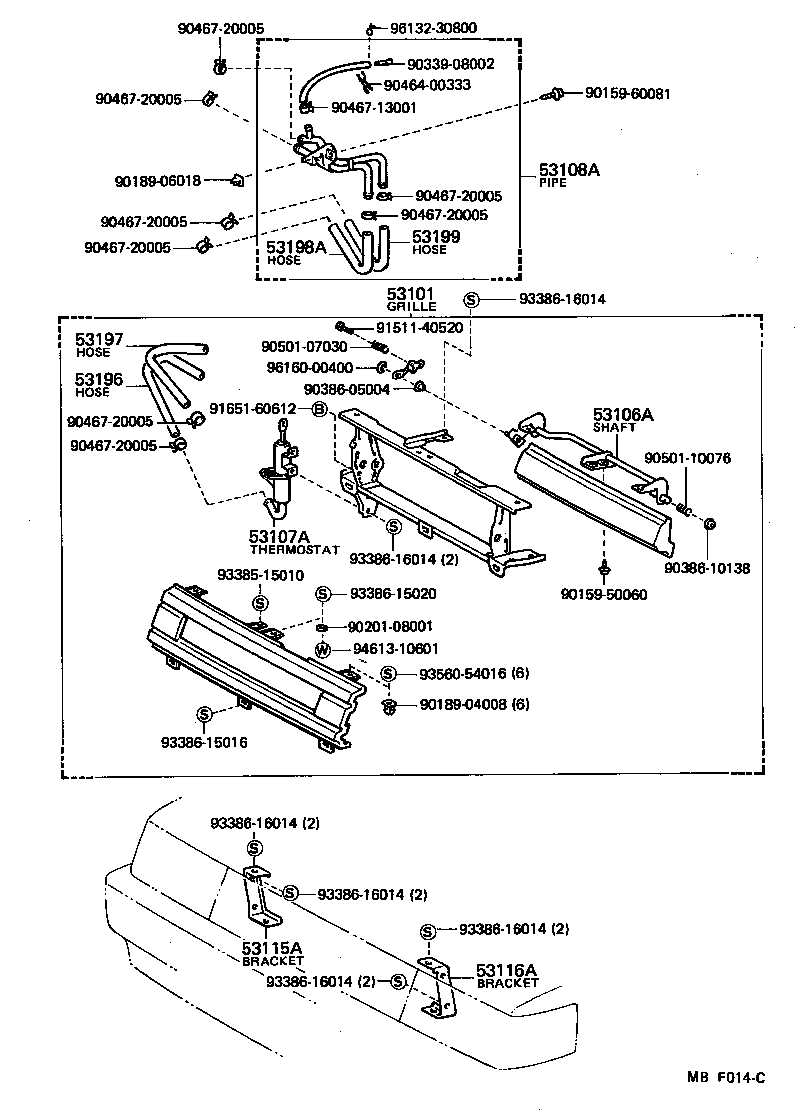

diagram 53101 53106A 53107A 53108A 53115A 53116A 53196 53197 53198A 53199 9015950060 9015960081 9018904008 9018906018 9020108001 9033908002 9038605004 9038610138 9046400333 9046713001 9046720005 9046720005 9046720005 9046720005 9046720005 9046720005 9046720005 9046720005 9050107030 9050110076 9151140520 9165160612 9338515010 9338615016 9338615020 9338616014 9338616014 9338616014 9338616014 9338616014 9338616014 9356054016 9461310601 9613230800 9616000400
Part # Description Qty Price
53101 - GRILLE SUB-ASSY, RADIATOR
53100-12221

AE86..APX

 1
53100-12270

AE86..APX

 1
53100-12271

AE86..APX

 1
53106A - SHAFT SUB-ASSY, RADIATOR GRILLE
53106-12010

AE86..APX

 1
53107A - THERMOSTAT SUB-ASSY, RADIATOR GRILLE
53107-12020

AE86..APX

 1
53107-12021

AE86..APX

 1
53108A - PIPE SUB-ASSY, RADIATOR GRILLE
53108-12030

AE86..APX

 1
53115A - BRACKET, RADIATOR GRILLE, RH
53115-12070

AE86..APX

 1
53116A - BRACKET, RADIATOR GRILLE, LH
53116-12070

AE86..APX

 1
53196 - HOSE, RADIATOR GRILLE, NO.1
53196-12010

AE86..APX

 1
53197 - HOSE, RADIATOR GRILLE, NO.2
53197-12010

AE86..APX

 1
53198A - HOSE, RADIATOR GRILLE, NO.3
53198-12020

AE86..APX

 1
53199 - HOSE, RADIATOR GRILLE, NO.4
53199-12020

AE86..APX

 1
Common parts
90159-50060
90159-60081
90189-04008
90189-06018
90201-08001
90339-08002
90386-05004
90386-10138
90464-00333
90467-13001
90467-20005
90501-07030
90501-10076
91511-40520
91651-60612
93385-15010
93386-15016
93386-15020
93386-16014
93560-54016
94613-10601
96132-30800
96160-00400

(8505- )

Click highlighted areas on diagram

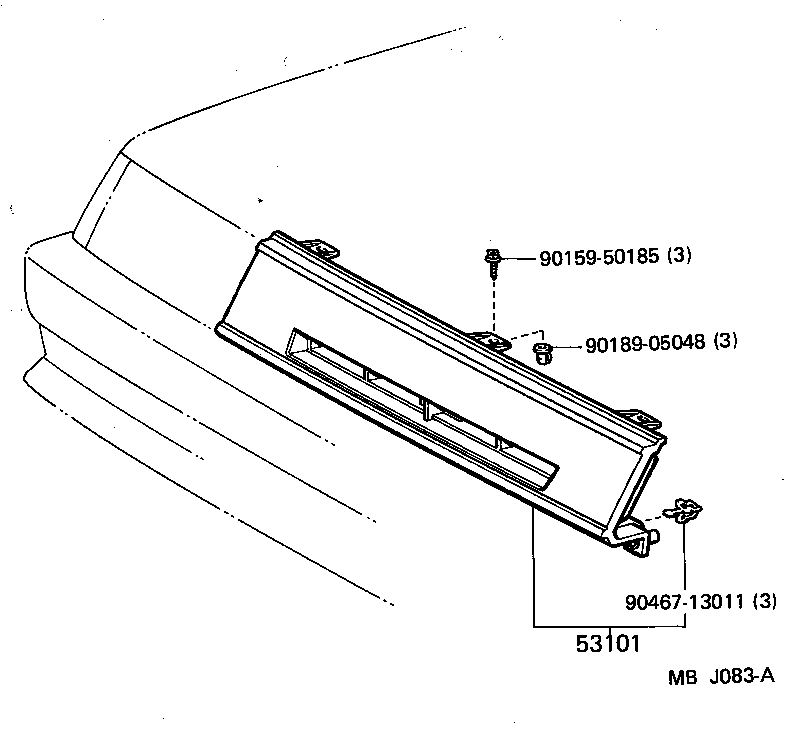

diagram 53101 9015950185 9018905048 9046713011
Part # Description Qty Price
53101 - GRILLE SUB-ASSY, RADIATOR
53100-12221

AE86..APX

 1
53100-12270

AE86..APX

 1
53100-12271

AE86..APX

 1
Common parts
90159-50185
90189-05048
90467-13011
