AE86-ESMVF (1983)

Toyota Corolla Levin

Production May 1983 - Apr 1987
Engine 4AGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )4AGEU

Click highlighted areas on diagram

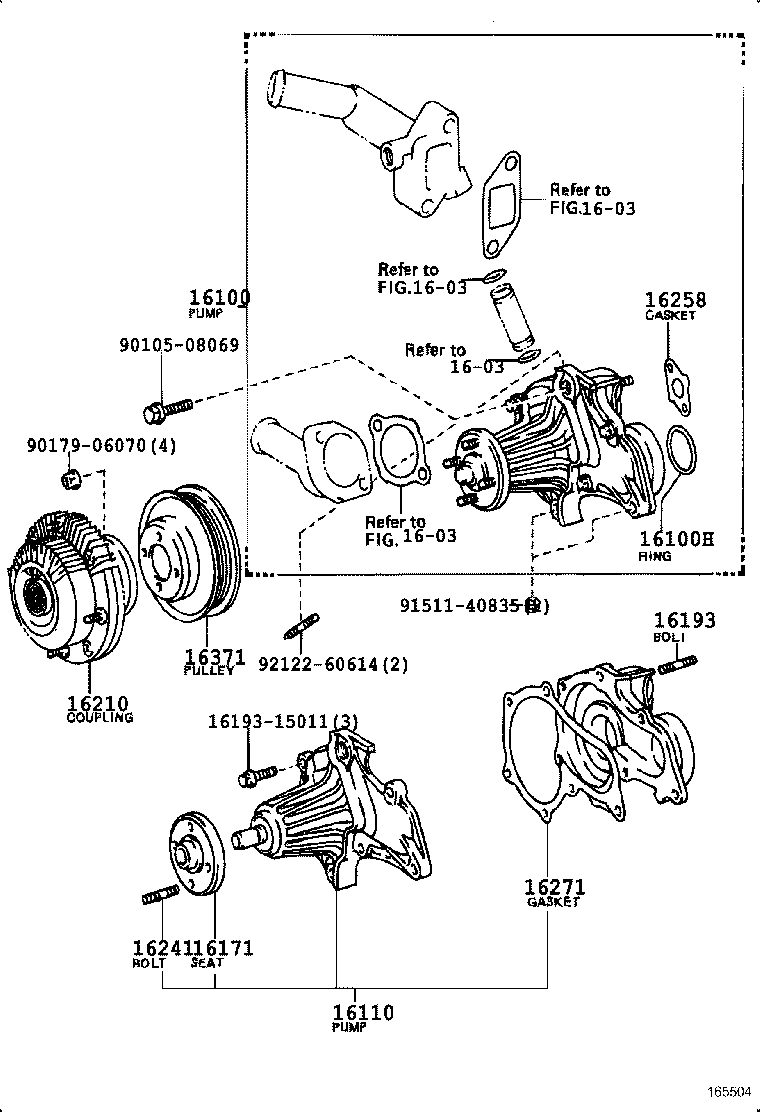

diagram 1603 1603 1603 1603 16100 16100H 16110 16171 16193 1619315011 16210 16241 16258 16271 16371 9010508069 9017906070 9151140835 9212260614
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-19095

4AGEU..AE86

 1
16100H - RING, O(FOR WATER PUMP)
96711-24035

3AU,4AGEU..AE8#

 1
16110 - PUMP ASSY, WATER, W/O COUPLING
16110-16010

4AGEU..AE86

 1
16171 - SEAT, WATER PUMP PULLEY
16171-88280

4AGEU..AE86

 1
16193 - BOLT, STUD(FOR WATER PUMP COVER)
16193-15010

3AU,4AGEU..AE8#

 2
16210 - COUPLING ASSY, FLUID
16210-16010

4AGEU..AE86

 1
16241 - BOLT, STUD(FOR WATER PUMP COUPLING)
16241-15020

3AU,4AGEU..AE8#

 4
16258 - GASKET(FOR HEATER RETURN)
16258-15011

3AU,4AGEU..AE8#

 1
16271 - GASKET, WATER PUMP
16124-15010

3AU,4AGEU..AE8#

 1
16371 - PULLEY, FAN
16371-16021

4AGEU..AE86

 1
16371-16020

4AGEU..AE86

 1
Common parts
16193-15011
90105-08069
90179-06070
91511-40835
92122-60614
Linked diagrams
1603
