AE86-ESMVF (1983)
Toyota Corolla Levin
(8305- )4AGEU

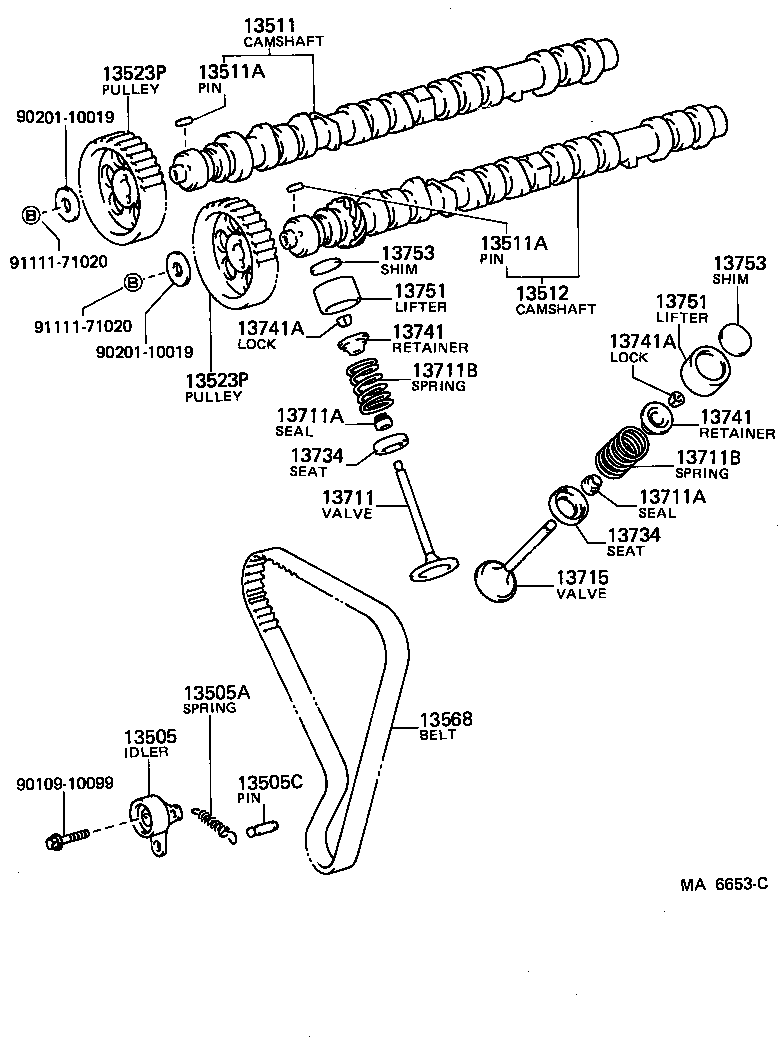

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13505 - IDLER SUB-ASSY, TIMING BELT, NO.1 | ||||
| 13505-16020 |
4AGEU..AE86 |
1 | ||
| 13505A - SPRING, TENSION(FOR IDLER) | ||||
| 90507-20010 |
4AGEU..AE86 |
1 | ||
| 13505C - PIN(FOR IDLER SPRING TENSION) | ||||
| 90249-06006 |
3AU,4AGEU..AE8# |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13501-16010 |
4AGEU..AE86 |
1 | ||
| 13511A - PIN, STRAIGHT(FOR CAMSHAFT KNOCK) | ||||
| 90250-05121 |
3AU,4AGEU..AE8# 長さ=15,外径=5 |
2 | ||
| 13511A - PIN, STRAIGHT(FOR CAMSHAFT KNOCK) | ||||
| 90250-05121 |
3AU,4AGEU..AE8# 長さ=15,外径=5 |
2 | ||
| 13512 - CAMSHAFT, NO.2 | ||||
| 13502-16010 |
4AGEU..AE86 |
1 | ||
| 13523P - PULLEY, CAMSHAFT TIMING | ||||
| 13523-16010 |
4AGEU..AE86 |
2 | ||
| 13523P - PULLEY, CAMSHAFT TIMING | ||||
| 13523-16010 |
4AGEU..AE86 |
2 | ||
| 13568 - BELT, TIMING | ||||
| 13568-16010 |
4AGEU..AE86 |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-16010 |
4AGEU..AE86 |
8 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02066 |
4AGEU..AE86 |
16 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02066 |
4AGEU..AE86 |
16 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-33001 |
4AGEU..AE86 |
16 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-33001 |
4AGEU..AE86 |
16 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-16010 |
4AGEU..AE86 |
8 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-16010 |
4AGEU..AE86 |
16 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-16010 |
4AGEU..AE86 |
16 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-16010 |
4AGEU..AE86 |
16 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-16010 |
4AGEU..AE86 |
16 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03021 |
4AGEU..AE86 |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03021 |
4AGEU..AE86 |
32 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-16010 |
4AGEU..AE86 |
16 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-16010 |
4AGEU..AE86 |
16 | ||
| 13753 - SHIM, VALVE ADJUSTING | ||||
| 13753-16100 |
4AGEU..AE86 厚さ=2.70,T=2.70 |
1 | ||
| 13753-16020 |
4AGEU..AE86 厚さ=2.50,T=2.50 |
1 | ||
| 13753-16180 |
4AGEU..AE86 厚さ=2.90,T=2.90 |
1 | ||
| 13753-16080 |
4AGEU..AE86 厚さ=2.65,T=2.65 |
1 | ||
| 13753-16060 |
4AGEU..AE86 厚さ=2.60,T=2.60 |
1 | ||
| 13753-16120 |
4AGEU..AE86 厚さ=2.75,T=2.75 |
1 | ||
| 13753-16240 |
4AGEU..AE86 厚さ=3.05,T=3.05 |
1 | ||
| 13753-16160 |
4AGEU..AE86 厚さ=2.85,T=2.85 |
1 | ||
| 13753-16140 |
4AGEU..AE86 厚さ=2.80,T=2.80 |
1 | ||
| 13753-16260 |
4AGEU..AE86 厚さ=3.10,T=3.10 |
1 | ||
| 13753-16040 |
4AGEU..AE86 厚さ=2.55,T=2.55 |
1 | ||
| 13753-16200 |
4AGEU..AE86 厚さ=2.95,T=2.95 |
1 | ||
| 13753-16300 |
4AGEU..AE86 厚さ=3.20,T=3.20 |
1 | ||
| 13753-16220 |
4AGEU..AE86 厚さ=3.00,T=3.00 |
1 | ||
| 13753-16320 |
4AGEU..AE86 厚さ=3.25,T=3.25 |
1 | ||
| 13753-16280 |
4AGEU..AE86 厚さ=3.15,T=3.15 |
1 | ||
| 13753-16340 |
4AGEU..AE86 厚さ=3.30,T=3.30 |
1 | ||
| 13753 - SHIM, VALVE ADJUSTING | ||||
| 13753-16100 |
4AGEU..AE86 厚さ=2.70,T=2.70 |
1 | ||
| 13753-16020 |
4AGEU..AE86 厚さ=2.50,T=2.50 |
1 | ||
| 13753-16180 |
4AGEU..AE86 厚さ=2.90,T=2.90 |
1 | ||
| 13753-16080 |
4AGEU..AE86 厚さ=2.65,T=2.65 |
1 | ||
| 13753-16060 |
4AGEU..AE86 厚さ=2.60,T=2.60 |
1 | ||
| 13753-16120 |
4AGEU..AE86 厚さ=2.75,T=2.75 |
1 | ||
| 13753-16240 |
4AGEU..AE86 厚さ=3.05,T=3.05 |
1 | ||
| 13753-16160 |
4AGEU..AE86 厚さ=2.85,T=2.85 |
1 | ||
| 13753-16140 |
4AGEU..AE86 厚さ=2.80,T=2.80 |
1 | ||
| 13753-16260 |
4AGEU..AE86 厚さ=3.10,T=3.10 |
1 | ||
| 13753-16040 |
4AGEU..AE86 厚さ=2.55,T=2.55 |
1 | ||
| 13753-16200 |
4AGEU..AE86 厚さ=2.95,T=2.95 |
1 | ||
| 13753-16300 |
4AGEU..AE86 厚さ=3.20,T=3.20 |
1 | ||
| 13753-16220 |
4AGEU..AE86 厚さ=3.00,T=3.00 |
1 | ||
| 13753-16320 |
4AGEU..AE86 厚さ=3.25,T=3.25 |
1 | ||
| 13753-16280 |
4AGEU..AE86 厚さ=3.15,T=3.15 |
1 | ||
| 13753-16340 |
4AGEU..AE86 厚さ=3.30,T=3.30 |
1 | ||
| Common parts | ||||
| 90109-10099 | ||||
| 90201-10019 | ||||
| 91111-71020 | ||||
