AE86-ESMQF (1983)

Toyota Corolla Levin

Production May 1983 - Apr 1987
Engine 4AGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )AE86

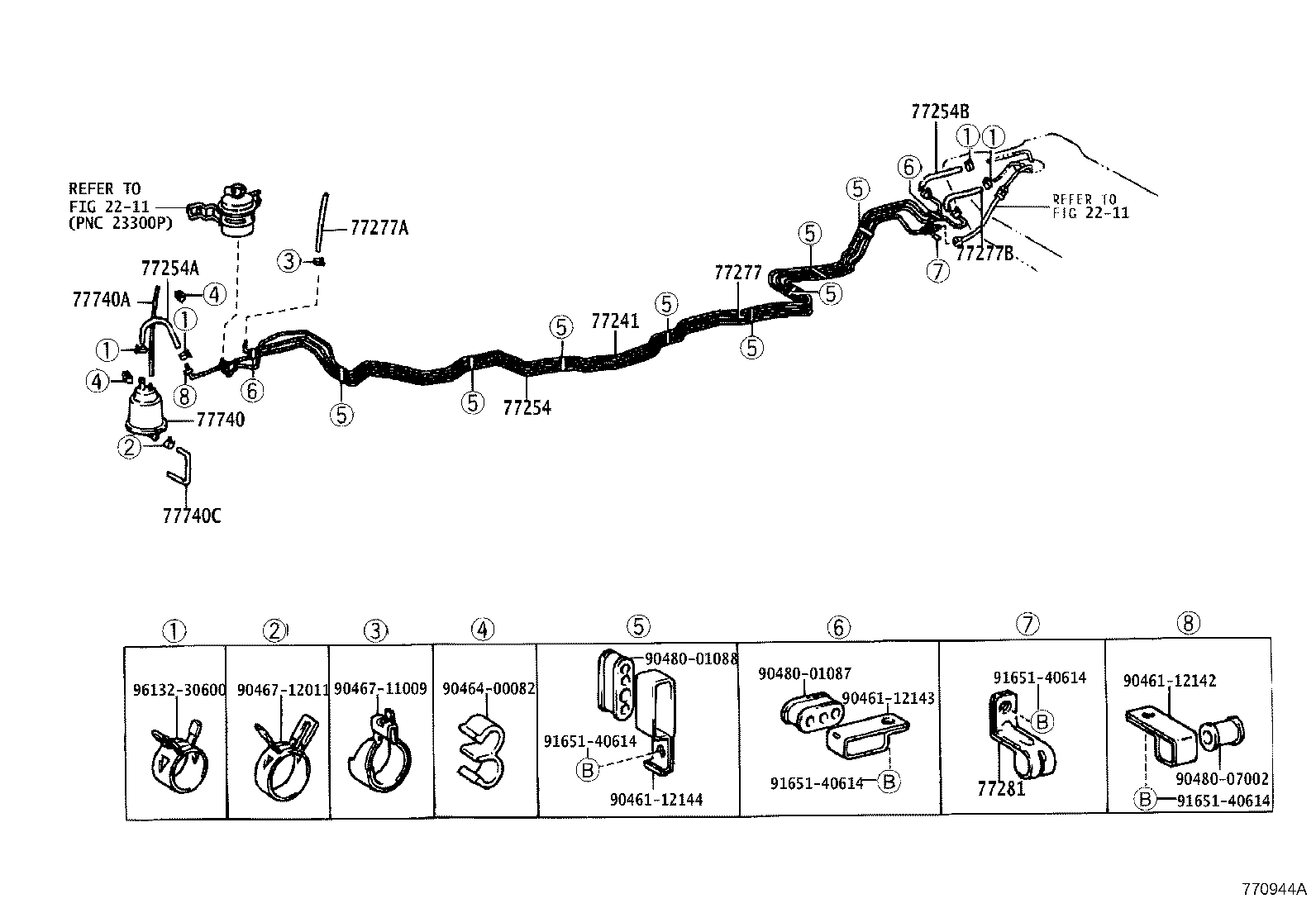

Click highlighted areas on diagram

diagram 2211 2211 77241 77254 77254A 77254B 77277 77277A 77277B 77281 77740 77740A 77740C 9046112142 9046112143 9046112144 9046400082 9046711009 9046712011 9048001087 9048001088 9048007002 9165140614 9165140614 9165140614 9165140614 9613230600
Part # Description Qty Price
77241 - TUBE, FUEL MAIN, NO.1
77205-12120

AE86

 1
77254 - TUBE, FUEL EMISSION, NO.1
77019-12100

AE86

 1
77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1)
95333-06020

AE8#

*H,L=200

 1
95332-06020

AE8#

*H,L=200

 1
77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1)
95333-06030

AE86

*H,L=220

 1
95333-06022

AE86

*H,L=220

 1
95332-06030

AE86

*H,L=220

 1
77277 - TUBE, FUEL RETURN, NO.1
77255-12160

AE86

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
90447-12044

AE86

 1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
95332-06030

AE86

*H,L=220

 1
95333-06030

AE86

*H,L=220

 1
95333-06022

AE86

*H,L=220

 1
77281 - BRACKET, FUEL MAIN TUBE, NO.1
77281-12020

AE86

 1
77740 - CANISTER ASSY, CHARCOAL
77704-12270

AE8#

 1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
95411-19960

AE86

*H,L=510,ﾏｰｸ=#*

 1
77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)
77754-12030

AE8#

 1
Common parts
90461-12142
90461-12143
90461-12144
90464-00082
90467-11009
90467-12011
90480-01087
90480-01088
90480-07002
91651-40614
96132-30600
Linked diagrams
2211

(8305- )

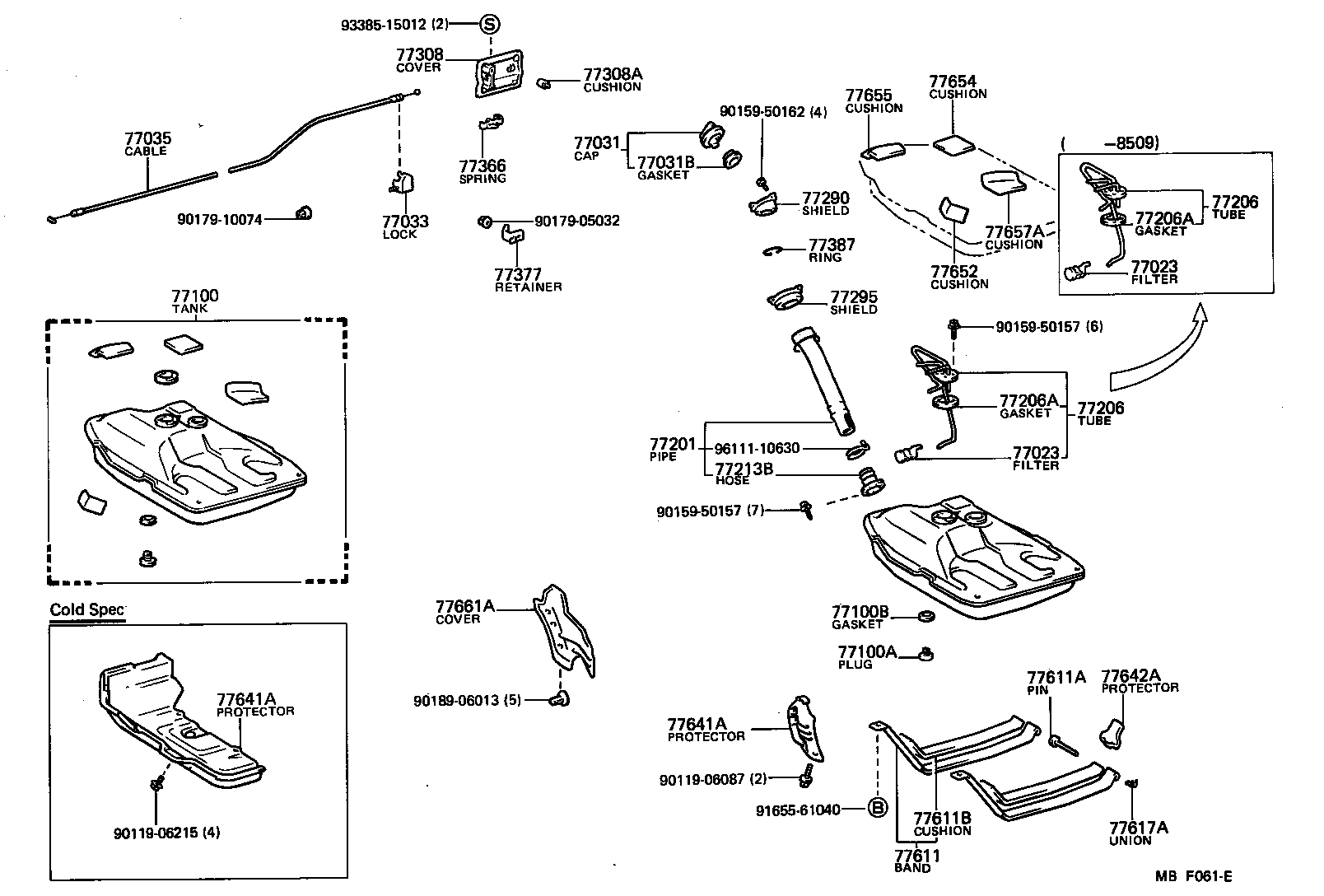

Click highlighted areas on diagram

diagram 77023 77023 77031 77031B 77033 77035 77100 77100A 77100B 77201 77206 77206 77206A 77206A 77213B 77290 77295 77308 77308A 77366 77377 77387 77611 77611A 77611B 77617A 77641A 77641A 77642A 77652 77654 77655 77657A 77661A 9011906087 9011906215 9015950157 9015950157 9015950162 9017905032 9017910074 9018906013 9165561040 9338515012 9611110630
Part # Description Qty Price
77031 - CAP ASSY, FUEL TANK
77310-12100

AE8#

 1
77031B - GASKET (FOR FUEL TANK CAP)
77316-12050

AE8#

 1
77033 - LOCK SUB-ASSY, FUEL TANK CAP
77037-14010

AE8#

 1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-12090

AE8#

 1
77100 - TANK ASSY, FUEL
77001-19295

AE86

 1
77100A - PLUG(FOR FUEL TANK)
90341-20004

AE8#

 1
77100B - GASKET(FOR FUEL TANK)
90430-20007

AE8#

 1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-16060

AE8#

 1
77213B - HOSE, FUEL TANK TO FILLER PIPE
77213-14090

AE8#

 1
77290 - SHIELD ASSY, FUEL TANK FILLER PIPE
77290-12010

AE8#

 1
77295 - SHIELD, FUEL FILLER PIPE
77293-12020

AE8#

 1
77308 - COVER SUB-ASSY, FUEL INLET BOX
77350-12100

AE8#

 1
77308A - CUSHION(FOR FUEL INLET BOX COVER)
90541-08009

AE8#

 2
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77360-24010

AE8#

 1
77377 - RETAINER, FUEL FILLER OPENING LID LOCK
77377-24010

AE8#

 1
77387 - RING, FUEL INLET BOX
77391-16010

AE8#

 1
77611 - BAND, FUEL TANK
77601-16050

AE8#

COLD SPEC,RH

 1
77602-16040

AE8#

LH

 1
77602-12030

AE8#

LH

 1
77601-12070

AE8#

RH

 1
77611A - PIN (FOR FUEL TANK BAND)
90240-08020

AE8#

 2
77611B - CUSHION, FUEL TANK, NO.4
77654-12021

AE8#

 2
77617A - UNION, AUXILIARY FUEL BAND
77617-12010

AE8#

 2
77641A - PROTECTOR, FUEL TANK, NO.1
77641-12130

AE8#

 1
77641-16030

AE8#

COLD SPEC

 1
77641A - PROTECTOR, FUEL TANK, NO.1
77641-12130

AE8#

 1
77641-16030

AE8#

COLD SPEC

 1
77642A - PROTECTOR, FUEL TANK, NO.2
77642-12010

AE8#

 2
77652 - CUSHION, FUEL TANK, NO.1
77651-16050

AE8#

 1
77655-12021

AE8#

 1
77654 - CUSHION, FUEL TANK, NO.2
77652-12041

AE8#

 1
77655 - CUSHION, FUEL TANK, NO.3
77653-12031

AE8#

 1
77657A - CUSHION, FUEL TANK, NO.5
77655-12021

AE8#

 1
77661A - COVER, FUEL TANK FILLER HOSE
77661-12040

AE8#

 1
77661-12030

AE8#

 1
Common parts
90119-06087
90119-06215
90159-50157
90159-50162
90179-05032
90179-10074
90189-06013
91655-61040
93385-15012
96111-10630
