AE86-ESMQF (1983)
Toyota Corolla Levin
(8305-8505)AE86 ; (8505- )GT

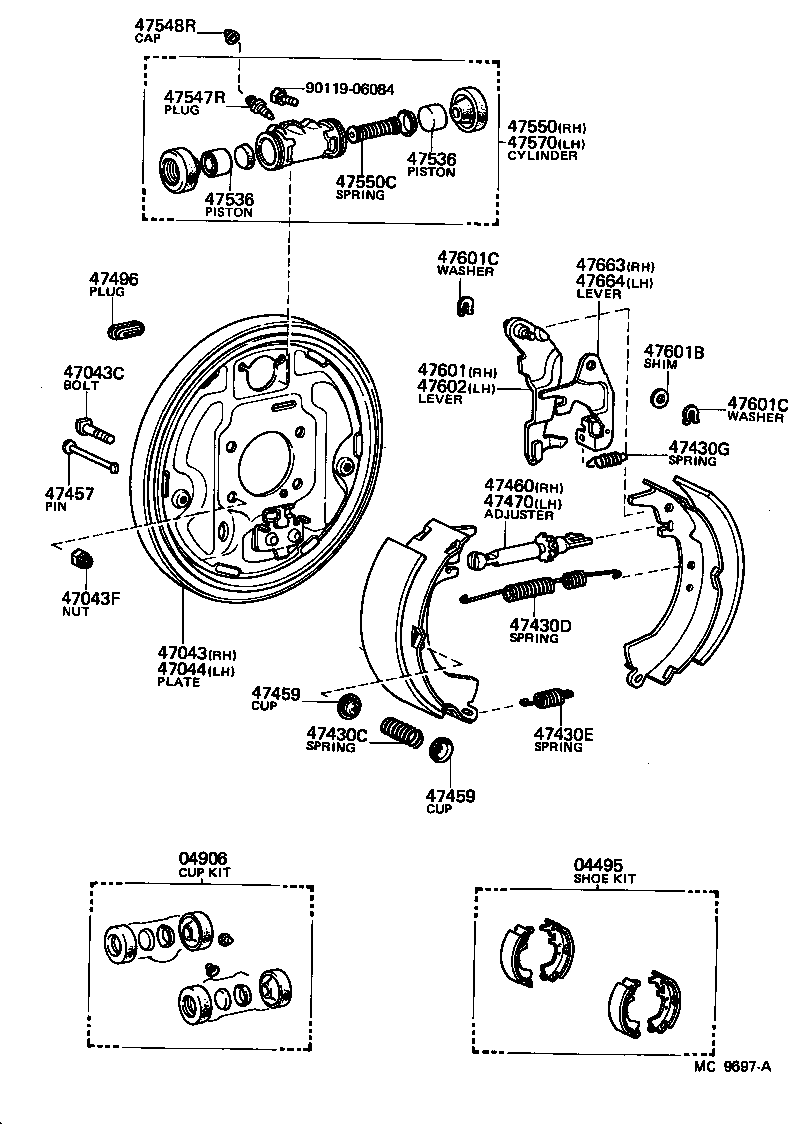

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-14010 |
AE86 |
1 | ||
| 04497-14010 |
AE86 REBUILT |
1 | ||
| 04497-14010 |
AE86..GT REBUILT |
1 | ||
| 04495-14010 |
AE86..GT |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-12040 |
AE86..GT |
1 | ||
| 04906-12040 |
AE86 |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-20050 |
AE86 |
1 | ||
| 47043-20050 |
AE86..GT |
1 | ||
| 47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 42184-22011 |
AE86 *10−1.25PX37−15 |
8 | ||
| 42184-22011 |
AE86..GT *10−1.25PX37−15 |
8 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 94181-11000 |
AE8#..GL,GT,SE,SR |
8 | ||
| 94181-11000 |
AE8# |
8 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-20050 |
AE86 |
1 | ||
| 47044-20050 |
AE86..GT |
1 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-18017 |
AE86 |
4 | ||
| 90501-18017 |
AE86..GT |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-23375 |
AE86 |
1 | ||
| 90506-23375 |
AE86..GT |
1 | ||
| 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-23346 |
AE86 |
2 | ||
| 90506-23346 |
AE86..GT |
2 | ||
| 47430G - SPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER) | ||||
| 90506-12011 |
AE86 |
2 | ||
| 90506-12011 |
AE86..GT |
2 | ||
| 47457 - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-20030 |
AE86 |
4 | ||
| 47447-20030 |
AE86..GT |
4 | ||
| 47459 - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
AE86..GT |
8 | ||
| 47449-30020 |
AE86 |
8 | ||
| 47459 - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
AE86..GT |
8 | ||
| 47449-30020 |
AE86 |
8 | ||
| 47460 - ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE) | ||||
| 47061-14021 |
AE86..GT |
1 | ||
| 47061-14021 |
AE86 |
1 | ||
| 47470 - ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE) | ||||
| 47062-14021 |
AE86..GT |
1 | ||
| 47062-14021 |
AE86 |
1 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-20011 |
AE8# |
2 | ||
| 47491-20011 |
AE8#..GL,GT,SE,SR |
2 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47051-22040 |
AE86..GT |
4 | ||
| 47051-22040 |
AE86 |
4 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47051-22040 |
AE86..GT |
4 | ||
| 47051-22040 |
AE86 |
4 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-20010 |
AE8# |
2 | ||
| 47547-20010 |
AE8#..GL,GT,SE,SR |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
AE8# |
2 | ||
| 31478-30010 |
AE8#..GL,GT,SE,SR |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-19135 |
AE86..GT |
1 | ||
| 47550-12060 |
AE86..GT |
1 | ||
| 47550-19135 |
AE86 |
1 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 47509-12020 |
AE86..GT |
2 | ||
| 47509-12020 |
AE86 |
2 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47550-19135 |
AE86 |
1 | ||
| 47550-19135 |
AE86..GT |
1 | ||
| 47550-12060 |
AE86..GT |
1 | ||
| 47601 - LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE) | ||||
| 47601-14010 |
AE86 |
1 | ||
| 47601-14010 |
AE86..GT |
1 | ||
| 47601B - SHIM, REAR PARKING BRAKE SHOE LEVER | ||||
| 90564-08172 |
AE8# 厚さ=0.2,T=0.2 |
2 | ||
| 90564-08152 |
AE8# 厚さ=0.9,T=0.9 |
2 | ||
| 90564-08150 |
AE8# 厚さ=0.3,T=0.3 |
2 | ||
| 90564-08152 |
AE8#..GL,GT,SE,SR 厚さ=0.9,T=0.9 |
2 | ||
| 90564-08151 |
AE8#..GL,GT,SE,SR 厚さ=0.6,T=0.6 |
2 | ||
| 90564-08174 |
AE8# 厚さ=0.5,T=0.5 |
2 | ||
| 90564-08172 |
AE8#..GL,GT,SE,SR 厚さ=0.2,T=0.2 |
2 | ||
| 90564-08174 |
AE8#..GL,GT,SE,SR 厚さ=0.5,T=0.5 |
2 | ||
| 90564-08151 |
AE8# 厚さ=0.6,T=0.6 |
2 | ||
| 90564-08150 |
AE8#..GL,GT,SE,SR 厚さ=0.3,T=0.3 |
2 | ||
| 90564-08173 |
AE8#..GL,GT,SE,SR 厚さ=0.4,T=0.4 |
2 | ||
| 90564-08173 |
AE8# 厚さ=0.4,T=0.4 |
2 | ||
| 47601C - WASHER, C(FOR REAR BRAKE) | ||||
| 90213-06013 |
AE8#..GL,GT,SE,SR 厚さ=1.2 |
4 | ||
| 90213-06013 |
AE8# 厚さ=1.2 |
4 | ||
| 47601C - WASHER, C(FOR REAR BRAKE) | ||||
| 90213-06013 |
AE8#..GL,GT,SE,SR 厚さ=1.2 |
4 | ||
| 90213-06013 |
AE8# 厚さ=1.2 |
4 | ||
| 47602 - LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE) | ||||
| 47602-14010 |
AE86..GT |
1 | ||
| 47602-14010 |
AE86 |
1 | ||
| 47663 - LEVER, AUTOMATIC ADJUST, RH(FOR REAR BRAKE) | ||||
| 47643-20020 |
AE86 |
1 | ||
| 47643-20020 |
AE86..GT |
1 | ||
| 47664 - LEVER, AUTOMATIC ADJUST, LH(FOR REAR BRAKE) | ||||
| 47644-20020 |
AE86..GT |
1 | ||
| 47644-20020 |
AE86 |
1 | ||
| Common parts | ||||
| 90119-06084 | ||||
