AE86-ECMVF (1983)

Toyota Corolla Levin

Production May 1983 - Apr 1987
Engine 4AGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )3D

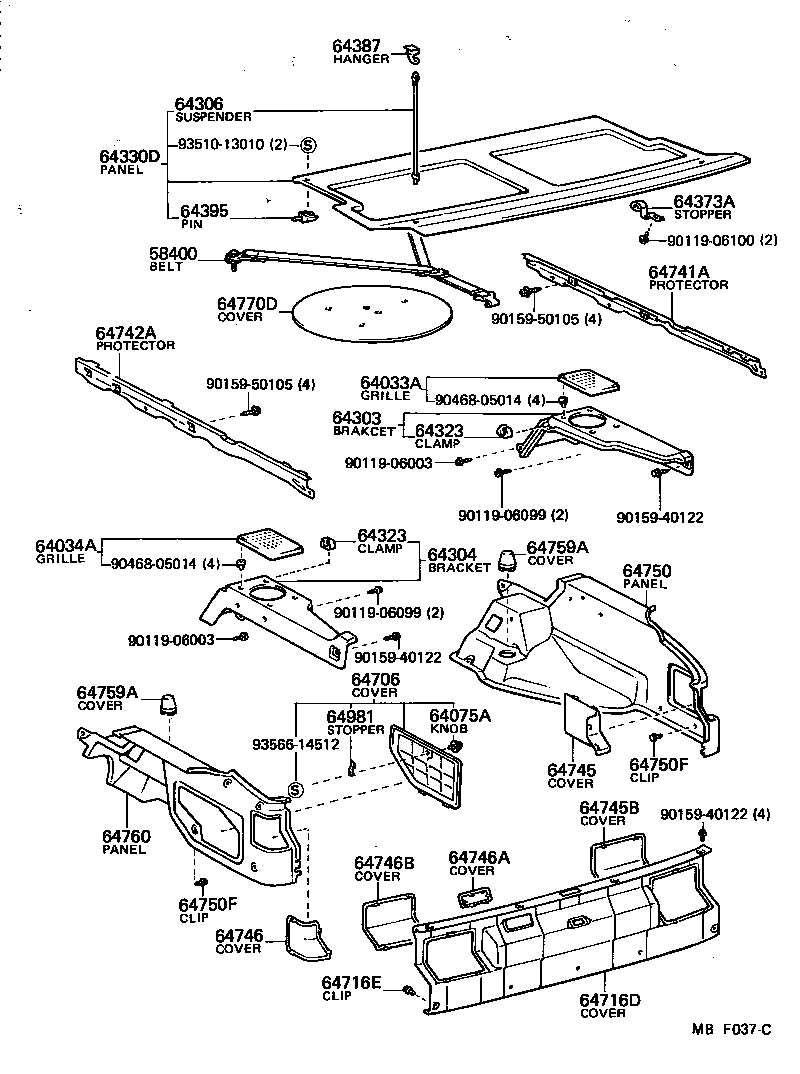

Click highlighted areas on diagram

diagram 58400 64033A 64034A 64075A 64303 64304 64306 64323 64323 64330D 64373A 64387 64395 64706 64716D 64716E 64741A 64742A 64745 64745B 64746 64746A 64746B 64750 64750F 64750F 64759A 64759A 64760 64770D 64981 9011906003 9011906003 9011906099 9011906099 9011906100 9015940122 9015940122 9015940122 9015950105 9015950105 9046805014 9046805014 9351013010 9356614512
Part # Description Qty Price
58400 - BELT ASSY, LUGGAGE HOLD, NO.1
58400-12030

AE8#..3D

 1
64033A - GRILLE SUB-ASSY, REAR SPEAKER, RH
64033-1204001

AE8#..3D

BLACK,BLACK,TRIM2#

 1
64033-1204002

AE8#..3D

DEEP MAROON,RED/MAROON,TRIM3#

 1
64033-1204004

AE8#..3D

BLUE,BLUE,TRIM8#

 1
64034A - GRILLE SUB-ASSY, REAR SPEAKER, LH
64033-1204002

AE8#..3D

DEEP MAROON,RED/MAROON,TRIM3#

 1
64033-1204004

AE8#..3D

BLUE,BLUE,TRIM8#

 1
64033-1204001

AE8#..3D

BLACK,BLACK,TRIM2#

 1
64075A - KNOB, DECK TRIM WASHER COVER
64982-1602012

AE8#..3D

DEEP MAROON,RED/MAROON,TRIM3#

 1
64982-1602001

AE8#..3D

BLACK,BLACK,TRIM2#

 1
64982-1602014

AE8#..3D

BLUE,BLUE,TRIM8#

 1
64303 - BRACKET SUB-ASSY, PACKAGE TRAY, RH
64301-1202002

AE8#..3D

DEEP MAROON,RED/MAROON,TRIM3#

 1
64301-1203004

AE8#..3D

W/RR SPEAKER,BLUE,BLUE,TRIM8#

 1
64301-1203002

AE8#..3D

W/RR SPEAKER,DEEP MAROON,RED/MAROON,TRIM3#

 1
64301-1202004

AE8#..3D

BLUE,BLUE,TRIM8#

 1
64301-1202001

AE8#..3D

BLACK,BLACK,TRIM2#

 1
64301-1203001

AE8#..3D

W/RR SPEAKER,BLACK,BLACK,TRIM2#

 1
64304 - BRACKET SUB-ASSY, PACKAGE TRAY, LH
64302-1203001

AE8#..3D

W/RR SPEAKER,BLACK,BLACK,TRIM2#

 1
64302-1203002

AE8#..3D

W/RR SPEAKER,DEEP MAROON,RED/MAROON,TRIM3#

 1
64302-1202004

AE8#..3D

BLUE,BLUE,TRIM8#

 1
64302-1203004

AE8#..3D

W/RR SPEAKER,BLUE,BLUE,TRIM8#

 1
64302-1202001

AE8#..3D

BLACK,BLACK,TRIM2#

 1
64302-1202002

AE8#..3D

DEEP MAROON,RED/MAROON,TRIM3#

 1
64306 - SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM
64306-12010

AE8#..3D

 2
64323 - CLAMP, PACKAGE TRAY TRIM, NO.1
64324-10010

AE8#..3D

LH

 1
64323-10010

AE8#..3D

RH

 1
64323 - CLAMP, PACKAGE TRAY TRIM, NO.1
64324-10010

AE8#..3D

LH

 1
64323-10010

AE8#..3D

RH

 1
64330D - PANEL ASSY, PACKAGE TRAY TRIM
64330-1245001

AE8#..3D

BLACK,BLACK,TRIM2#

 1
64330-1245002

AE8#..3D

DEEP MAROON,RED/MAROON,TRIM3#

 1
64330-1245004

AE8#..3D

BLUE,BLUE,TRIM8#

 1
64373A - STOPPER, PACKAGE TRAY TRIM
64373-12040

AE8#..3D

 2
64387 - HANGER, PACKAGE TRAY TRIM
64381-10010

AE8#..3D

 2
64395 - PIN, PACKAGE TRAY TRIM HINGE
64395-16010

AE8#..3D

 1
64706 - COVER SUB-ASSY, QUARTER TRIM, JACK
64707-1201002

AE8#..3D

DEEP MAROON,RED/MAROON,TRIM3#

 1
64707-1201001

AE8#..3D

BLACK,BLACK,TRIM2#

 1
64707-1201004

AE8#..3D

BLUE,BLUE,TRIM8#

 1
64716D - COVER, DECK TRIM, REAR
64716-1206002

AE8#..3D

DEEP MAROON,RED/MAROON,TRIM3#

 1
64716-1206001

AE8#..3D

BLACK,BLACK,TRIM2#

 1
64716-1206004

AE8#..3D

BLUE,BLUE,TRIM8#

 1
64716E - CLIP(FOR DECK TRIM REAR COVER)
90467-0704102

AE8#..3D

DEEP MAROON,RED/MAROON,TRIM3#

 3
90467-0704104

AE8#..3D

BLUE,BLUE,TRIM8#

 3
90467-0704101

AE8#..3D

BLACK,BLACK,TRIM2#

 3
64741A - PROTECTOR, DECK TRIM SIDE, RH
64741-12020

AE8#..3D

 1
64741-12010

AE8#..3D

 1
64742A - PROTECTOR, DECK TRIM SIDE, LH
64742-12010

AE8#..3D

 1
64742-12020

AE8#..3D

 1
64745 - COVER, REAR COMBINATION LAMP SERVICE, RH
64745-1204001

AE8#..3D

BLACK,BLACK,TRIM2#

 1
64745-1204002

AE8#..3D

DEEP MAROON,RED/MAROON,TRIM3#

 1
64745-1204004

AE8#..3D

BLUE,BLUE,TRIM8#

 1
64745B - COVER, REAR COMBINATION LAMP SERVICE, NO.2, RH
64745-1206004

AE8#..3D

BLUE,BLUE,TRIM8#

 1
64745-1206002

AE8#..3D

DEEP MAROON,RED/MAROON,TRIM3#

 1
64745-1206001

AE8#..3D

BLACK,BLACK,TRIM2#

 1
64746 - COVER, REAR COMBINATION LAMP SERVICE, LH
64746-1205002

AE8#..3D

DEEP MAROON,RED/MAROON,TRIM3#

 1
64746-1205001

AE8#..3D

BLACK,BLACK,TRIM2#

 1
64746-1205004

AE8#..3D

BLUE,BLUE,TRIM8#

 1
64746B - COVER, REAR COMBINATION LAMP SERVICE, NO.2, LH
64746-1207004

AE8#..3D

BLUE,BLUE,TRIM8#

 1
64746-1207001

AE8#..3D

BLACK,BLACK,TRIM2#

 1
64746-1207002

AE8#..3D

DEEP MAROON,RED/MAROON,TRIM3#

 1
64750 - PANEL ASSY, DECK SIDE TRIM, RH
64730-1215001

AE8#..3D

BLACK,BLACK,TRIM2#

 1
64730-1215002

AE8#..3D

DEEP MAROON,RED/MAROON,TRIM3#

 1
64730-1215004

AE8#..3D

BLUE,BLUE,TRIM8#

 1
64750F - CLIP(FOR DECK SIDE TRIM PANEL)
90467-0704102

AE8#..3D

DEEP MAROON,RED/MAROON,TRIM3#

 10
90467-0704104

AE8#..3D

BLUE,BLUE,TRIM8#

 10
90467-0704101

AE8#..3D

BLACK,BLACK,TRIM2#

 10
64750F - CLIP(FOR DECK SIDE TRIM PANEL)
90467-0704102

AE8#..3D

DEEP MAROON,RED/MAROON,TRIM3#

 10
90467-0704104

AE8#..3D

BLUE,BLUE,TRIM8#

 10
90467-0704101

AE8#..3D

BLACK,BLACK,TRIM2#

 10
64759A - COVER, SHOCK ABSORBER HEAD
64759-1401024

AE8#..3D

BLUE,BLUE,TRIM8#

 2
64759-1401022

AE8#..3D

DEEP MAROON,RED/MAROON,TRIM3#

 2
64759-1401011

AE8#..3D

BLACK,BLACK,TRIM2#

 2
64759A - COVER, SHOCK ABSORBER HEAD
64759-1401024

AE8#..3D

BLUE,BLUE,TRIM8#

 2
64759-1401022

AE8#..3D

DEEP MAROON,RED/MAROON,TRIM3#

 2
64759-1401011

AE8#..3D

BLACK,BLACK,TRIM2#

 2
64760 - PANEL ASSY, DECK SIDE TRIM, LH
64740-1215002

AE8#..3D

DEEP MAROON,RED/MAROON,TRIM3#

 1
64740-1215001

AE8#..3D

BLACK,BLACK,TRIM2#

 1
64740-1215004

AE8#..3D

BLUE,BLUE,TRIM8#

 1
64770D - COVER ASSY, SPARE WHEEL
64770-12090

AE86..5F

W/O COMPACT SPARE TIRE

 1
64770-12020

AE8#

W/COMPACT SPARE TIRE

 1
64770-12030

AE86

W/O COMPACT SPARE TIRE

 1
64981 - STOPPER, WASHER TANK COVER
64981-16021

AE8#..3D

 1
Common parts
90119-06003
90119-06099
90119-06100
90159-40122
90159-50105
90468-05014
93510-13010
93566-14512
