AE86-ECMVF (1983)

Toyota Corolla Levin

Production May 1983 - Apr 1987
Engine 4AGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )

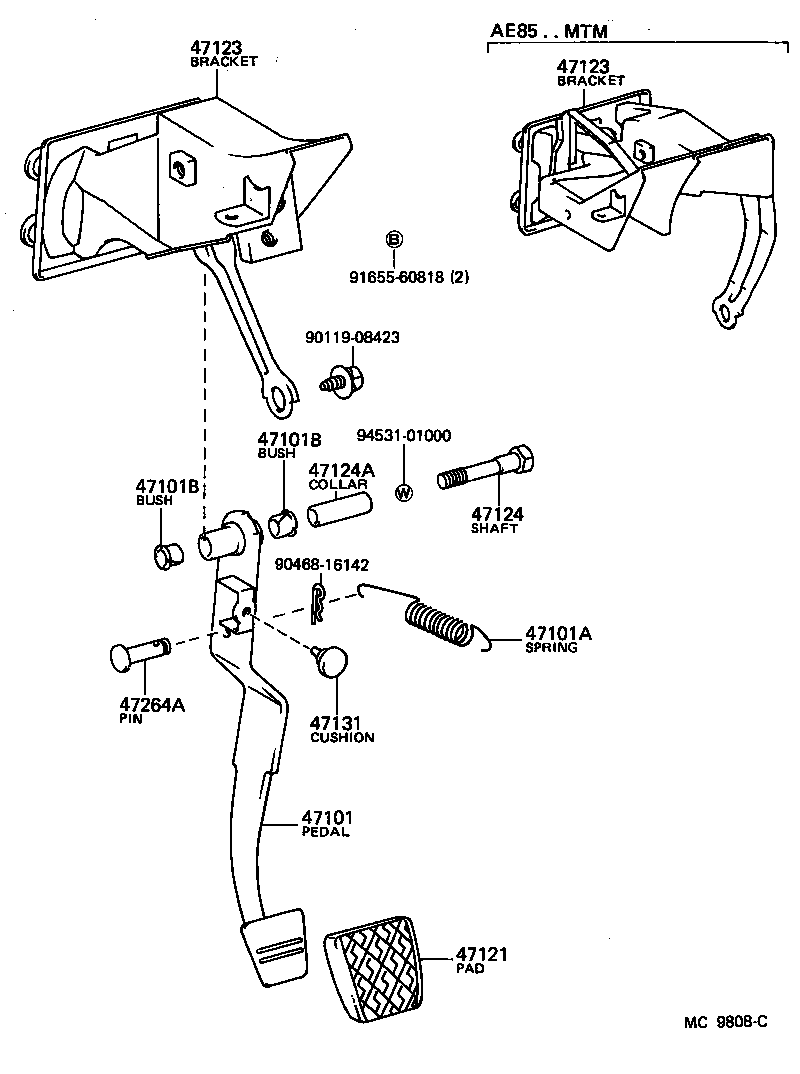

Click highlighted areas on diagram

diagram 47101 47101A 47101B 47101B 47121 47123 47123 47124 47124A 47131 47264A 9011908423 9046816142 9165560818 9453101000
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-12310

AE8#..5F

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90507-16006

AE8#

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13007

AE8#

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13007

AE8#

 2
47121 - PAD, BRAKE PEDAL
31321-12030

AE8#..5F

 1
47123 - BRACKET, BRAKE PEDAL
55106-12510

AE86..5F

 1
47123 - BRACKET, BRAKE PEDAL
55106-12510

AE86..5F

 1
47124 - SHAFT, BRAKE PEDAL
90101-10015

AE8#

 1
47124A - COLLAR(FOR BRAKE PEDAL SHAFT)
90387-10003

AE8#

 1
47131 - CUSHION(FOR STOP LAMP SWITCH)
90541-06008

AE8#

 1
47264A - PIN(FOR PUSH ROD)
90249-10064

AE8#

 1
Common parts
90119-08423
90468-16142
91655-60818
94531-01000
