AE86-ECMVF (1983)
Toyota Corolla Levin
Production
May 1983
-
Apr 1987
Engine
4AGEU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8305- )AE86..5F

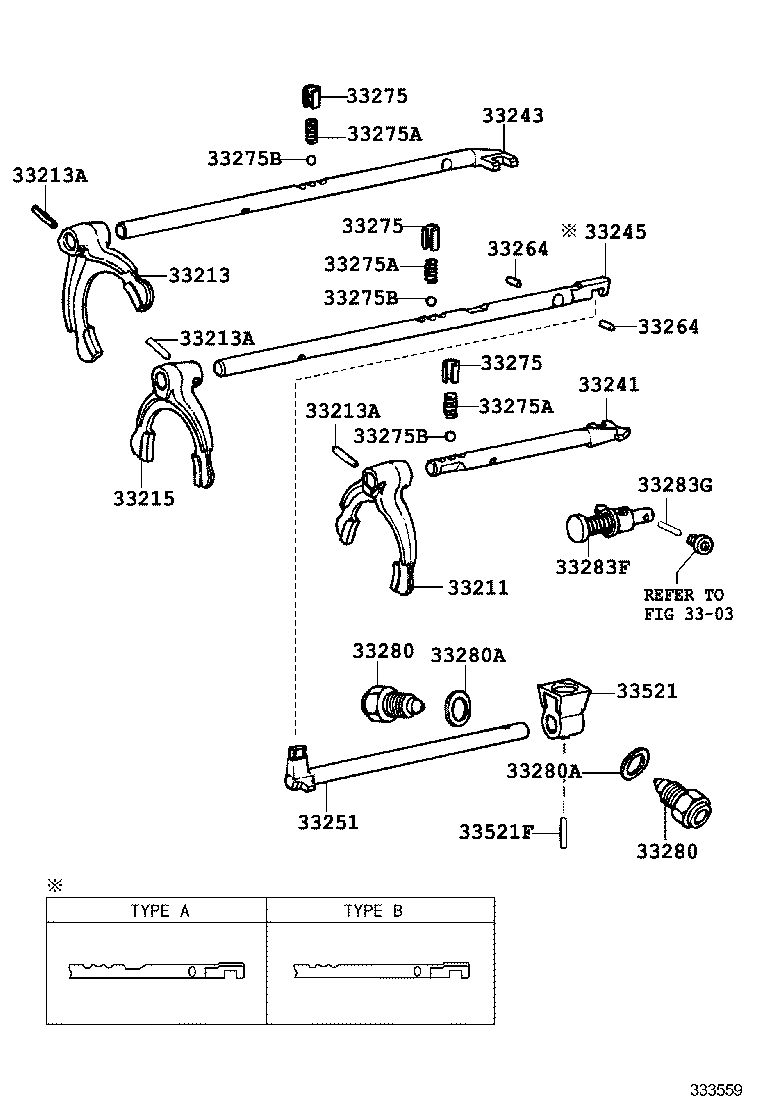

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33211 - FORK, REVERSE SHIFT | ||||
| 33214-14010 |
AE86..5F |
1 | ||
| 33213 - FORK, 1ST & 2ND SHIFT | ||||
| 33212-14010 |
AE86..5F |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
AE8#..5F |
3 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
AE8#..5F |
3 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
AE8#..5F |
3 | ||
| 33215 - FORK, 3RD & 4TH SHIFT | ||||
| 33213-14010 |
AE86..5F |
1 | ||
| 33241 - SHAFT, REVERSE SHIFT FORK | ||||
| 33244-14050 |
AE86..5F |
1 | ||
| 33243 - SHAFT, 1ST & 2ND SHIFT FORK | ||||
| 33242-14030 |
AE86..5F |
1 | ||
| 33245 - SHAFT, 3RD & 4TH SHIFT FORK | ||||
| 33243-14040 |
AE86..5F TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 33243-14030 |
AE86 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 33251 - LEVER, SHIFT & SELECT | ||||
| 33251-14010 |
AE86..5F |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90250-06188 |
AE86..5F 長さ=10.8,OD=6 |
2 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90250-06188 |
AE86..5F 長さ=10.8,OD=6 |
2 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 33275-12010 |
AE8#..5F |
3 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 33275-12010 |
AE8#..5F |
3 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 33275-12010 |
AE8#..5F |
3 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14237 |
AE8#..5F 長さ=16.1 |
3 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14237 |
AE8#..5F 長さ=16.1 |
3 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14237 |
AE8#..5F 長さ=16.1 |
3 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
AE8#..5F |
3 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
AE8#..5F |
3 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
AE8#..5F |
3 | ||
| 33280 - PIN ASSY, REVERSE RESTRICT | ||||
| 33280-12040 |
AE8#..5F RH |
1 | ||
| 33280-12050 |
AE8#..5F LH |
1 | ||
| 33280 - PIN ASSY, REVERSE RESTRICT | ||||
| 33280-12040 |
AE8#..5F RH |
1 | ||
| 33280-12050 |
AE8#..5F LH |
1 | ||
| 33280A - GASKET, REVERSE RESTRICT PIN | ||||
| 90430-22002 |
AE8#..5F |
2 | ||
| 33280A - GASKET, REVERSE RESTRICT PIN | ||||
| 90430-22002 |
AE8#..5F |
2 | ||
| 33283F - PIN, REVERSE RESTRICT | ||||
| 33280-20030 |
AE86..5F |
1 | ||
| 33283G - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN) | ||||
| 90254-05001 |
AE8#..5F |
1 | ||
| 33521 - HOUSING, SHIFT LEVER | ||||
| 33521-14060 |
AE86..5F |
1 | ||
| 33521F - PIN OR BOLT (FOR SHIFT LEVER HOUSING) | ||||
| 90254-05001 |
AE8#..5F |
1 | ||
| Linked diagrams | ||||
| 3303 | ||||
