AE86-ECMQF (1983)

Toyota Corolla Levin

Production May 1983 - Apr 1987

Engine 4AGEU

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(8305- )

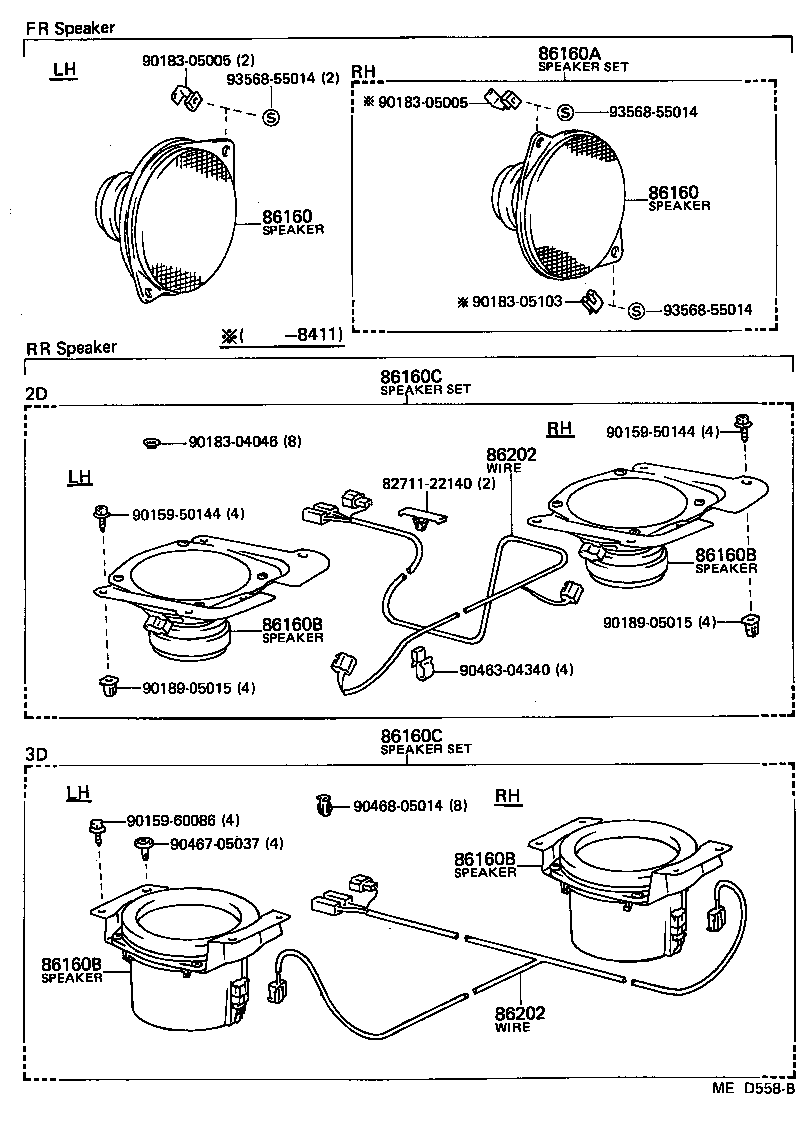

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-12170	AE8#	05/1983 - 02/1986	2
86160-12210	AE8#	02/1986 - 04/1987	2
86160 - SPEAKER ASSY, FRONT NO.1
86160-12170	AE8#	05/1983 - 02/1986	2
86160-12210	AE8#	02/1986 - 04/1987	2
86160A - SPEAKER SET, FRONT
86160-19665	AE8#	05/1983 - 04/1987	1
86160B - SPEAKER ASSY, REAR
86160-12150	AE8#..3D LH	05/1983 - 05/1985	1
86160-12140	AE8#..3D	05/1985 - 04/1987	2
86150-12040	AE8#..3D RH	05/1983 - 05/1985	1
86160B - SPEAKER ASSY, REAR
86160-12150	AE8#..3D LH	05/1983 - 05/1985	1
86160-12140	AE8#..3D	05/1985 - 04/1987	2
86150-12040	AE8#..3D RH	05/1983 - 05/1985	1
86160B - SPEAKER ASSY, REAR
86160-12150	AE8#..3D LH	05/1983 - 05/1985	1
86160-12140	AE8#..3D	05/1985 - 04/1987	2
86150-12040	AE8#..3D RH	05/1983 - 05/1985	1
86160B - SPEAKER ASSY, REAR
86160-12150	AE8#..3D LH	05/1983 - 05/1985	1
86160-12140	AE8#..3D	05/1985 - 04/1987	2
86150-12040	AE8#..3D RH	05/1983 - 05/1985	1
86160C - SPEAKER SET, REAR
86160-19705	AE8#..3D	05/1983 - 04/1987	1
86160C - SPEAKER SET, REAR
86160-19705	AE8#..3D	05/1983 - 04/1987	1
86202 - WIRE, SPEAKER, NO.1
86203-12150	AE8#..3D	05/1983 - 04/1987	1
86202 - WIRE, SPEAKER, NO.1
86203-12150	AE8#..3D	05/1983 - 04/1987	1
Common parts
82711-22140
90159-50144
90159-60086
90183-04046
90183-05005
90183-05103
90189-05015
90463-04340
90467-05037
90468-05014
93568-55014
