AE86-ECMQF (1983)
Toyota Corolla Levin
Production
May 1983
-
Apr 1987
Engine
4AGEU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

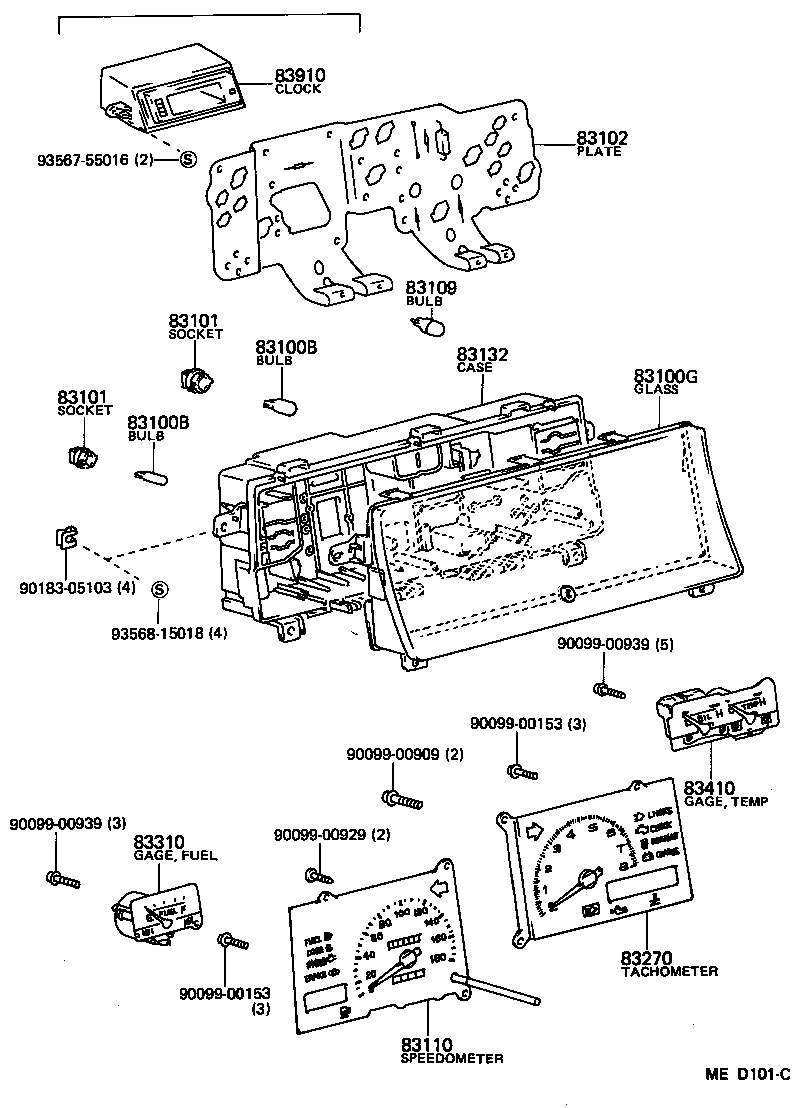

ILLUST NO. 1 OF 2(8305-8401)AE86..2D ; (8305-8401)GTV,SE,SR ; (8401- )APX,GT,GTV,SE,SR
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AE8#..APX,GT,GTV,SE,SR 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
12 | ||
| 99132-12034 |
AE8# 12V 3.4W,12V 3.4W |
11 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AE8#..APX,GT,GTV,SE,SR 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
12 | ||
| 99132-12034 |
AE8# 12V 3.4W,12V 3.4W |
11 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83133-12710 |
AE8#..GT,GTV,SE,SR |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AE8#..APX,GT,GTV,SE,SR BULB=12V 1.4W |
13 | ||
| 83101-14030 |
AE8# BULB=12V 3.4W |
11 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AE8#..APX,GT,GTV,SE,SR BULB=12V 1.4W |
13 | ||
| 83101-14030 |
AE8# BULB=12V 3.4W |
11 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-1E230 |
AE86..GT,GTV |
1 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-12010 |
AE8# 12V 3.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ,12V 3.4W,W/*AS |
4 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-1A240 |
AE86..GT,GTV |
1 | ||
| 83110-1A241 |
AE86..GT,GTV |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-12770 |
AE8#..GT,GTV,SE,SR W/INDICATOR LENS |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-12751 |
AE86..GT,GTV |
1 | ||
| 83242-12750 |
AE86..GT,GTV |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-12651 |
AE8#..APX,GT,GTV,SE,SR |
1 | ||
| 83243-12650 |
AE8#..GT,GTV,SE,SR |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-1A290 |
AE86..2D;AE86..GTV |
1 | ||
| 83244-1A290 |
AE86 |
1 | ||
| 83244-1A071 |
AE86 |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-12351 |
AE8#..APX,GT,GTV,SE,SR |
1 | ||
| 83910-12350 |
AE8#..APX,GT,GTV,SE,SR |
1 | ||
| Common parts | ||||
| 90099-00153 | ||||
| 90099-00909 | ||||
| 90099-00929 | ||||
| 90099-00939 | ||||
| 90183-05103 | ||||
| 93567-55016 | ||||
| 93568-15018 | ||||

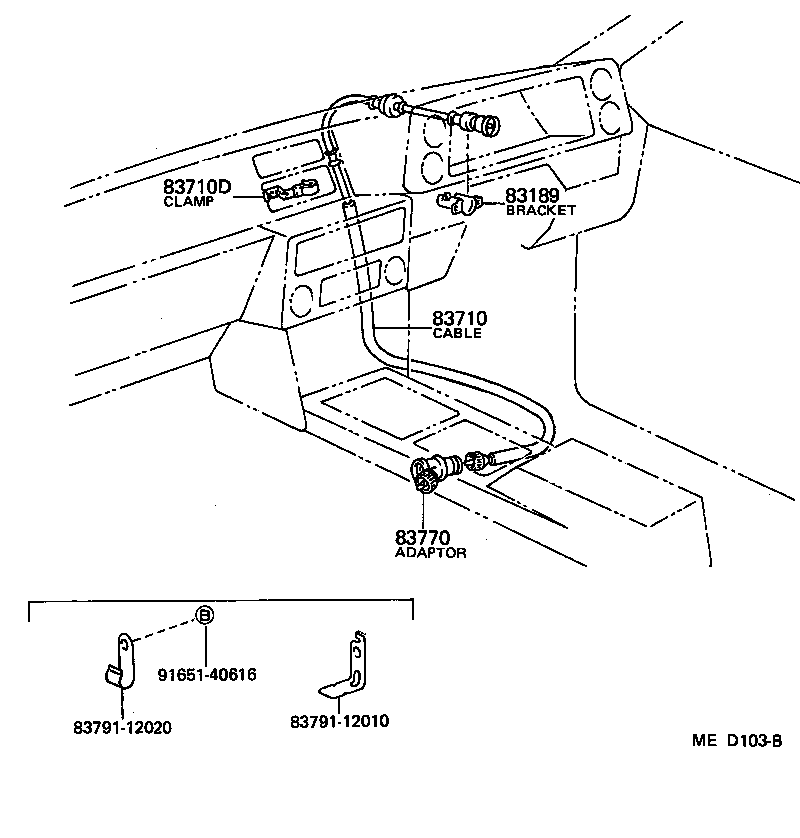

ILLUST NO. 2 OF 2(8305- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
AE8# |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-12220 |
AE86..5F |
1 | ||
| Common parts | ||||
| 83791-12010 | ||||
| 83791-12020 | ||||
| 91651-40616 | ||||
