AE86-ECMQF (1983)
Toyota Corolla Levin
Production
May 1983
-
Apr 1987
Engine
4AGEU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8305- )3D

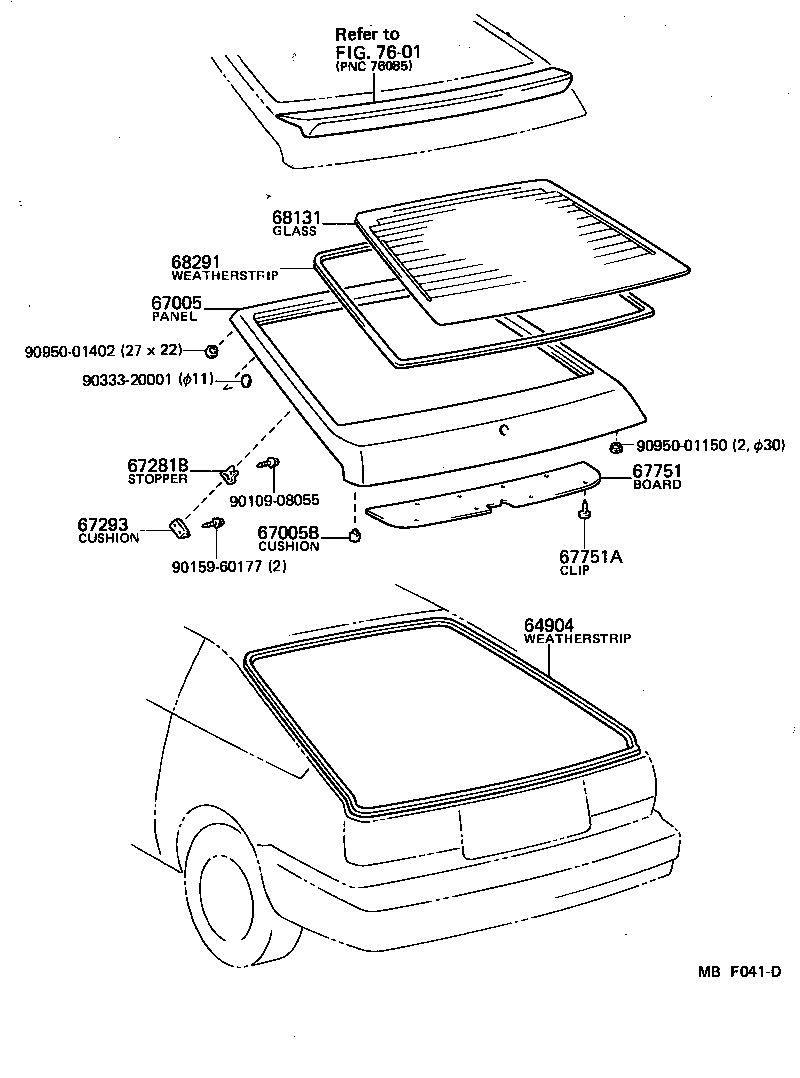

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64904 - WEATHERSTRIP SUB-ASSY, BACK DOOR | ||||
| 67881-12070 |
AE8#..3D |
1 | ||
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-12610 |
AE86..GTV W/RR SPOILER |
1 | ||
| 67005-12600 |
AE8#..3D W/RR WIPER & RR SPOILER |
1 | ||
| 67005-12600 |
AE86..3D W/RR WIPER & RR SPOILER |
1 | ||
| 67005-12780 |
AE86..GTV W/RR SPOILER |
1 | ||
| 67005-12340 |
AE86..GTV |
1 | ||
| 67005-12360 |
AE86..GTV |
1 | ||
| 67005-12330 |
AE8#..3D W/RR WIPER |
1 | ||
| 67005-12331 |
AE8#..3D W/RR WIPER |
1 | ||
| 67005-12601 |
AE8#..3D W/RR WIPER & RR SPOILER |
1 | ||
| 67005B - CUSHION(FOR BACK DOOR PANEL) | ||||
| 90541-09032 |
AE8#..3D |
2 | ||
| 67281B - STOPPER, BACK DOOR, LOWER | ||||
| 67281-12010 |
AE8#..3D |
2 | ||
| 67293 - CUSHION, BACK DOOR LOWER STOPPER | ||||
| 67293-12010 |
AE8#..3D |
2 | ||
| 67751 - BOARD, BACK DOOR TRIM | ||||
| 64781-1205004 |
AE8#..3D BLUE,BLUE,TRIM8# |
1 | ||
| 64781-1205002 |
AE8#..3D DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 64781-1205001 |
AE8#..3D BLACK,BLACK,TRIM2# |
1 | ||
| 67751A - CLIP(FOR BACK DOOR TRIM BOARD) | ||||
| 90467-0704101 |
AE8#..3D BLACK,BLACK,TRIM2# |
10 | ||
| 90467-0704102 |
AE8#..3D DEEP MAROON,RED/MAROON,TRIM3# |
10 | ||
| 90467-0704104 |
AE8#..3D BLUE,BLUE,TRIM8# |
10 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68131-12140 |
AE8#..GTV,SR *EHTT,T=4.0 |
1 | ||
| 68291 - WEATHERSTRIP, BACK DOOR GLASS | ||||
| 68291-12070 |
AE8#..3D |
1 | ||
| Common parts | ||||
| 90109-08055 | ||||
| 90159-60177 | ||||
| 90333-20001 | ||||
| 90950-01150 | ||||
| 90950-01402 | ||||
| Linked diagrams | ||||
| 7601 | ||||
