AE86-ECMQF (1983)

Toyota Corolla Levin

Production May 1983 - Apr 1987
Engine 4AGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )

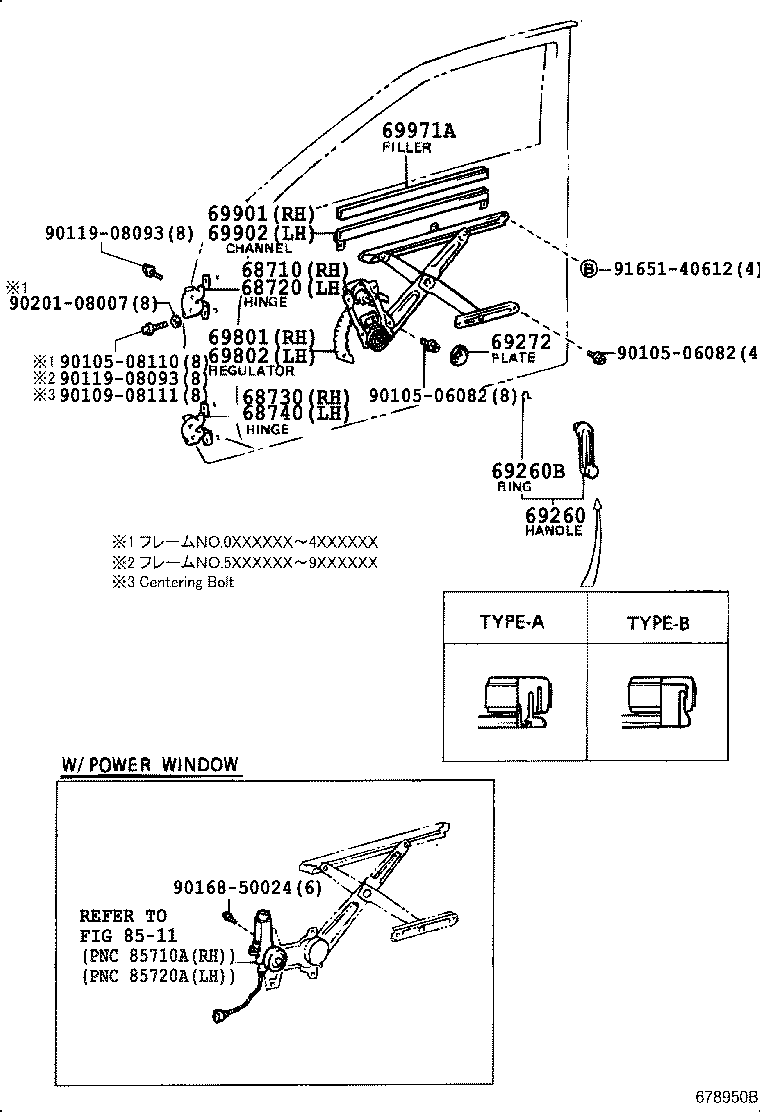

Click highlighted areas on diagram

diagram 68710 68720 68730 68740 69260 69260B 69272 69801 69802 69901 69902 69971A 8511 9010506082 9010506082 9010508110 9010908111 9011908093 9011908093 9016850024 9020108007 9165140612
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-14030

AE8#

PLANT.M21,M22

 1
68710-32010

AE8#

PLANT.A51-A54

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-32010

AE8#

PLANT.A51-A54

 1
68720-14030

AE8#

PLANT.M21,M22

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-24010

AE8#

PLANT.M21,M22

 1
68730-32010

AE8#

PLANT.A51-A54

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-24010

AE8#

PLANT.M21,M22

 1
68740-32010

AE8#

PLANT.A51-A54

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-1004001

AE8#

BLACK,BLACK,TRIM2#

 2
69260-1206024

AE8#

TYPE B,BLUE,BLUE,TRIM8#

 2
69260-1206002

AE8#

TYPE B,DEEP MAROON,RED/MAROON,TRIM3#

 2
69260-1402004

AE8#

TYPE A,BLUE,BLUE,TRIM8#

 2
69260-1402012

AE8#

TYPE A,DEEP MAROON,RED/MAROON,TRIM3#

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01002

AE8#

 2
69272 - PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
69285-22010

AE8#

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-12170

AE8#

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-12160

AE8#

 1
69901 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH
69901-12120

AE8#

 1
69902 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH
69901-12120

AE8#

 1
69971A - FILLER, FRONT DOOR GLASS CHANNEL
69971-22010

AE8#

 2
Common parts
90105-06082
90105-08110
90109-08111
90119-08093
90168-50024
90201-08007
91651-40612
Linked diagrams
8511
