AE86-ECMQF (1983)

Toyota Corolla Levin

Production May 1983 - Apr 1987
Engine 4AGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305-8505)GL,GT,GTV,SE,SR

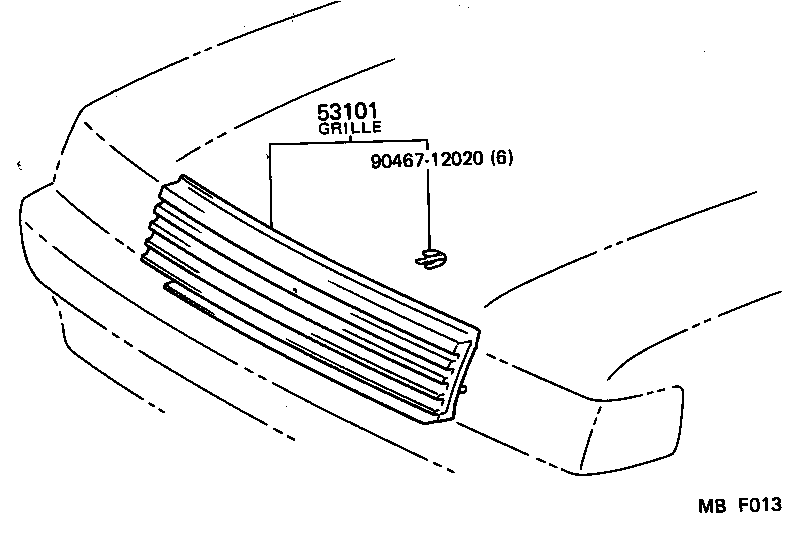

Click highlighted areas on diagram

diagram 53101 9046712020
Part # Description Qty Price
53101 - GRILLE SUB-ASSY, RADIATOR
53100-12300

AE8#..GL,GT,GTV,SE,SR

 1
53100-12220

AE8#..GL,GT,GTV,SE,SR

 1
Common parts
90467-12020

(8505- )

Click highlighted areas on diagram

diagram 53101 9015950185 9018905048 9046713011
Part # Description Qty Price
53101 - GRILLE SUB-ASSY, RADIATOR
53100-12300

AE8#..GL,GT,GTV,SE,SR

 1
53100-12220

AE8#..GL,GT,GTV,SE,SR

 1
Common parts
90159-50185
90189-05048
90467-13011
