AE86-ECMQF (1983)
Toyota Corolla Levin
Production
May 1983
-
Apr 1987
Engine
4AGEU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8305- )

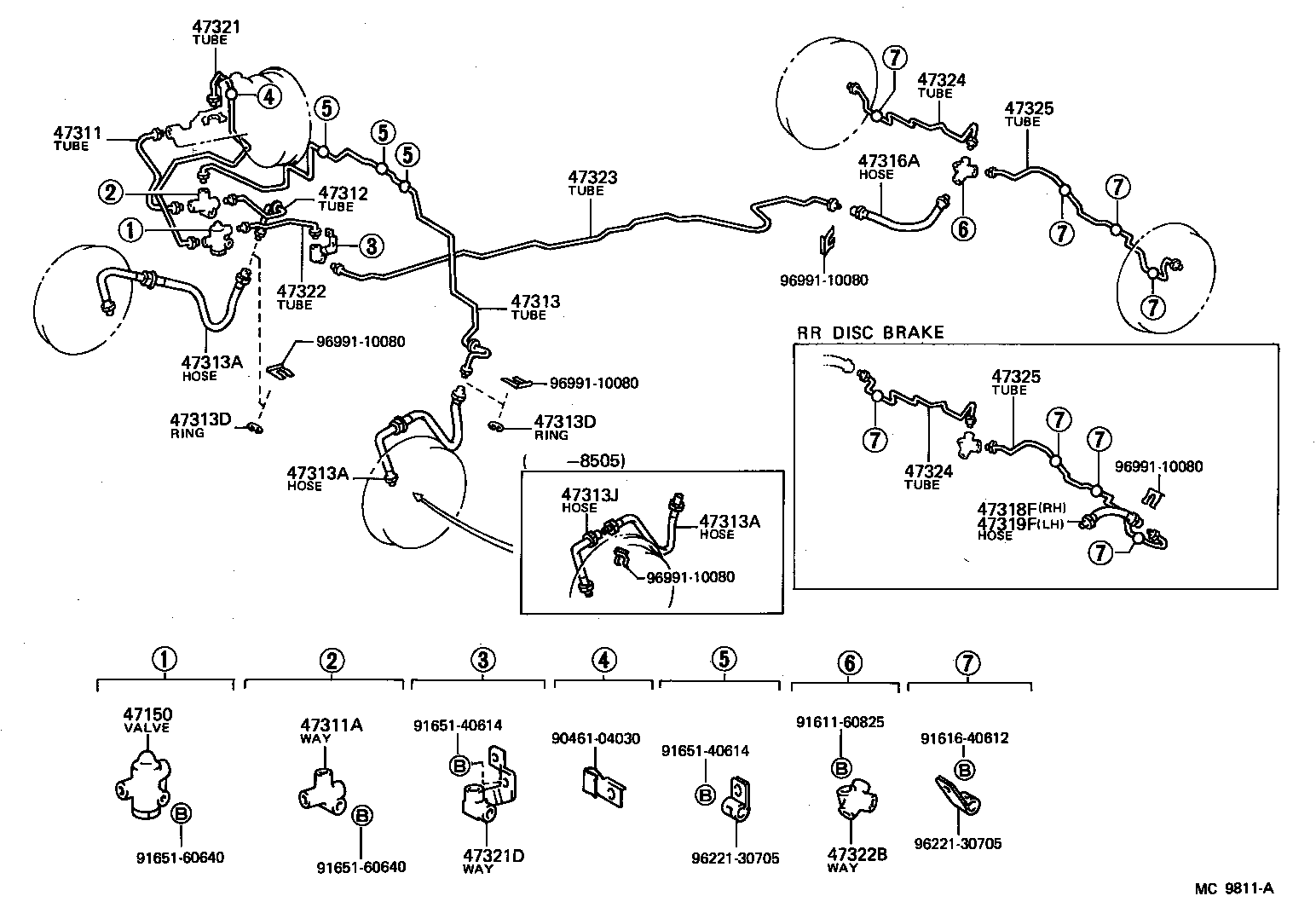

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-12031 |
AE86..APX,GTV RR DISC BRAKE |
1 | ||
| 47150-12041 |
AE86..GT RR DRUM BRAKE |
1 | ||
| 47150-12041 |
AE86 RR DRUM BRAKE |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47312-12160 |
AE8# |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90413-10002 |
AE8# |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47314-12210 |
AE8# |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47315-12360 |
AE8# |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02393 |
AE8# |
2 | ||
| 90947-02476 |
AE8# |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02393 |
AE8# |
2 | ||
| 90947-02476 |
AE8# |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02393 |
AE8# |
2 | ||
| 90947-02476 |
AE8# |
2 | ||
| 47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING) | ||||
| 96160-01200 |
AE8# |
4 | ||
| 47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING) | ||||
| 96160-01200 |
AE8# |
4 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02224 |
AE8# |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96940-32805 |
AE8# |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 96940-32555 |
AE86..APX,GTV |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 96940-32555 |
AE86..APX,GTV |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47322-12140 |
AE8# |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10107 |
AE8# |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47326-12020 |
AE8# |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90413-10098 |
AE8# |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-12150 |
AE86 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-12140 |
AE86 RR DRUM BRAKE |
1 | ||
| 47324-12150 |
AE86..APX,GTV RR DISC BRAKE |
1 | ||
| 47324-12140 |
AE86..GT RR DRUM BRAKE |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-12140 |
AE86 RR DRUM BRAKE |
1 | ||
| 47324-12150 |
AE86..APX,GTV RR DISC BRAKE |
1 | ||
| 47324-12140 |
AE86..GT RR DRUM BRAKE |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-12140 |
AE86 RR DRUM BRAKE |
1 | ||
| 47325-12140 |
AE86..GT RR DRUM BRAKE |
1 | ||
| 47325-12150 |
AE86..APX,GTV RR DISC BRAKE |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-12140 |
AE86 RR DRUM BRAKE |
1 | ||
| 47325-12140 |
AE86..GT RR DRUM BRAKE |
1 | ||
| 47325-12150 |
AE86..APX,GTV RR DISC BRAKE |
1 | ||
| Common parts | ||||
| 90461-04030 | ||||
| 91611-60825 | ||||
| 91616-40612 | ||||
| 91651-40614 | ||||
| 91651-60640 | ||||
| 96221-30705 | ||||
| 96991-10080 | ||||
