AE86-ECMQF (1983)
Toyota Corolla Levin
Production
May 1983
-
Apr 1987
Engine
4AGEU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8305- )

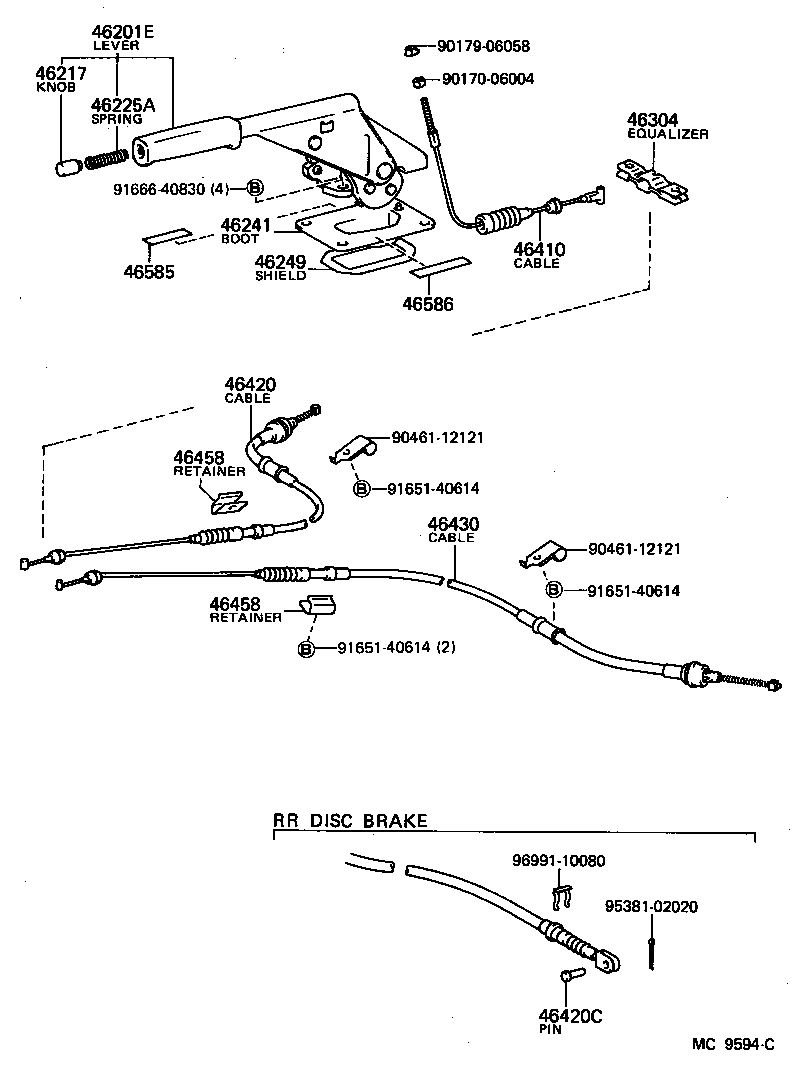

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46201-12080 |
AE86..APX,GTV BLACK,RR DISC BRAKE |
1 | ||
| 46201-1411001 |
AE8# BLACK,RR DRUM BRAKE,BLACK,TRIM2# |
1 | ||
| 46201-1411001 |
AE8#..GL,GT,SE,SR BLACK,RR DRUM BRAKE,BLACK,TRIM2# |
1 | ||
| 46201-12081 |
AE86..APX,GTV BLACK,RR DISC BRAKE |
1 | ||
| 46217 - KNOB, PARKING BRAKE RELEASE ROD | ||||
| 46217-1002001 |
AE8# BLACK,BLACK,TRIM2# |
1 | ||
| 46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD) | ||||
| 90501-10745 |
AE8# |
1 | ||
| 46241 - BOOT, PARKING BRAKE LEVER | ||||
| 46241-12070 |
AE86..APX,GTV RR DISC BRAKE |
1 | ||
| 46241-24010 |
AE8#..GL,GT,SE,SR RR DRUM BRAKE |
1 | ||
| 46241-24010 |
AE8# RR DRUM BRAKE |
1 | ||
| 46249 - SHIELD, PARKING BRAKE HOLE | ||||
| 46249-24010 |
AE8# |
1 | ||
| 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE | ||||
| 46341-16020 |
AE8# |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-12120 |
AE8# RR DRUM BRAKE |
1 | ||
| 46410-12120 |
AE8#..GL,GT,SE,SR RR DRUM BRAKE |
1 | ||
| 46410-12140 |
AE86..APX,GTV RR DISC BRAKE |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-12280 |
AE86..GT RR DRUM BRAKE |
1 | ||
| 46420-12300 |
AE86..APX,GTV RR DISC BRAKE |
1 | ||
| 46420-12280 |
AE86 RR DRUM BRAKE |
1 | ||
| 46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE) | ||||
| 90240-08040 |
AE86..APX,GTV |
2 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-12180 |
AE86 RR DRUM BRAKE |
1 | ||
| 46430-12180 |
AE86..GT RR DRUM BRAKE |
1 | ||
| 46430-12200 |
AE86..APX,GTV RR DISC BRAKE |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-20020 |
AE8# |
2 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-20020 |
AE8# |
2 | ||
| 46585 - PLATE, PARKING BRAKE CAUTION | ||||
| 46585-12030 |
AE86..APX,GTV |
1 | ||
| 46586 - PLATE, PARKING BRAKE CAUTION, NO.2 | ||||
| 46586-12030 |
AE86..APX,GTV |
1 | ||
| Common parts | ||||
| 90170-06004 | ||||
| 90179-06058 | ||||
| 90461-12121 | ||||
| 91651-40614 | ||||
| 91666-40830 | ||||
| 95381-02020 | ||||
| 96991-10080 | ||||
