AE85-ESPNS (1983)
Toyota Corolla Levin
Production
May 1983
-
Apr 1987
Engine
3AU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8305- )AE85

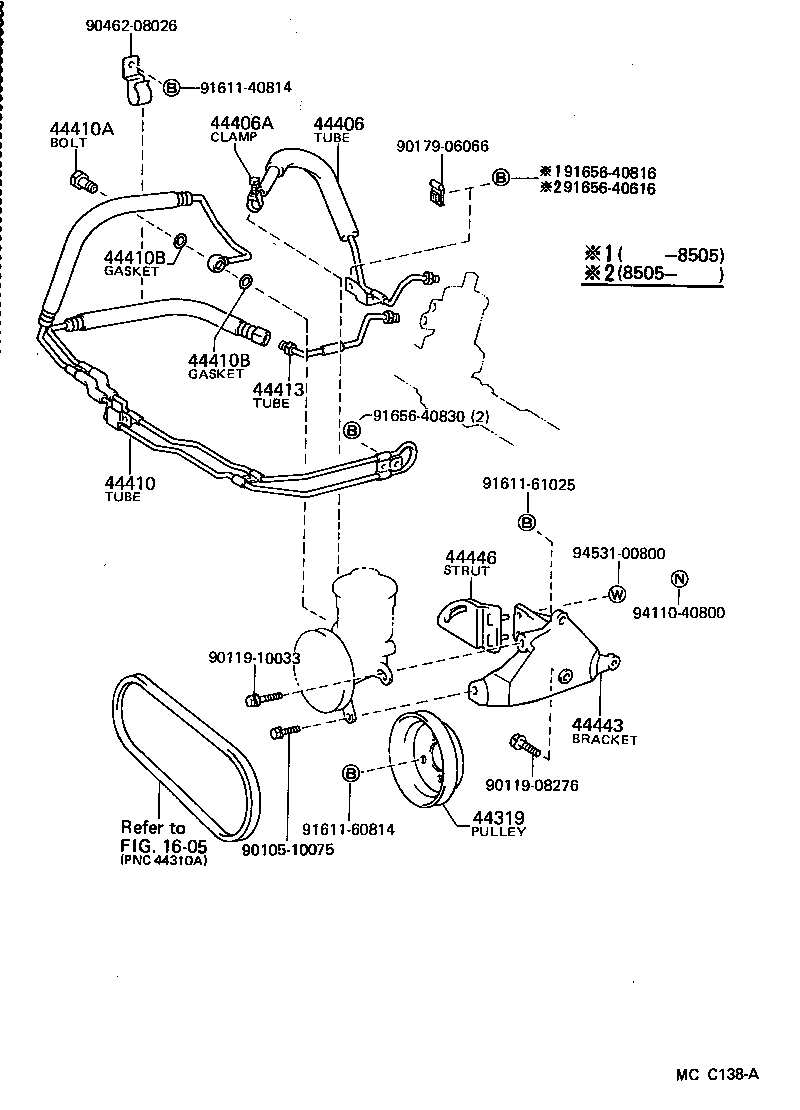

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44319 - PULLEY, VANE PUMP DRIVE | ||||
| 44319-12011 |
AE85 |
1 | ||
| 44406 - TUBE SUB-ASSY, RETURN | ||||
| 44406-12020 |
AE85 |
1 | ||
| 44406-12060 |
AE85 |
1 | ||
| 44406A - CLAMP(FOR RETURN TUBE) | ||||
| 90460-01001 |
AE85 |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-12130 |
AE85 |
1 | ||
| 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) | ||||
| 90401-16008 |
AE8#..APX,GL,GT,SE,SR |
1 | ||
| 90401-16005 |
AE8#..APX,GL,GT,SE,SR |
1 | ||
| 44410B - GASKET(FOR PRESSURE FEED TUBE) | ||||
| 90430-16242 |
AE8#..APX,GL,GT,SE,SR |
2 | ||
| 44410B - GASKET(FOR PRESSURE FEED TUBE) | ||||
| 90430-16242 |
AE8#..APX,GL,GT,SE,SR |
2 | ||
| 44413 - TUBE, PRESSURE FEED, NO.1 | ||||
| 44413-12070 |
AE8#..APX,GL,GT,SE,SR |
1 | ||
| 44413-12120 |
AE8#..APX,GL,GT,SE,SR |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-12040 |
AE85 |
1 | ||
| 44446 - STRUT, ADJUSTING | ||||
| 44446-12020 |
AE85 |
1 | ||
| Common parts | ||||
| 90105-10075 | ||||
| 90119-08276 | ||||
| 90119-10033 | ||||
| 90179-06066 | ||||
| 90462-08026 | ||||
| 91611-40814 | ||||
| 91611-60814 | ||||
| 91611-61025 | ||||
| 91656-40616 | ||||
| 91656-40816 | ||||
| 91656-40830 | ||||
| 94110-40800 | ||||
| 94531-00800 | ||||
| Linked diagrams | ||||
| 1605 | ||||
