AE85-ESPES (1983)
Toyota Corolla Levin

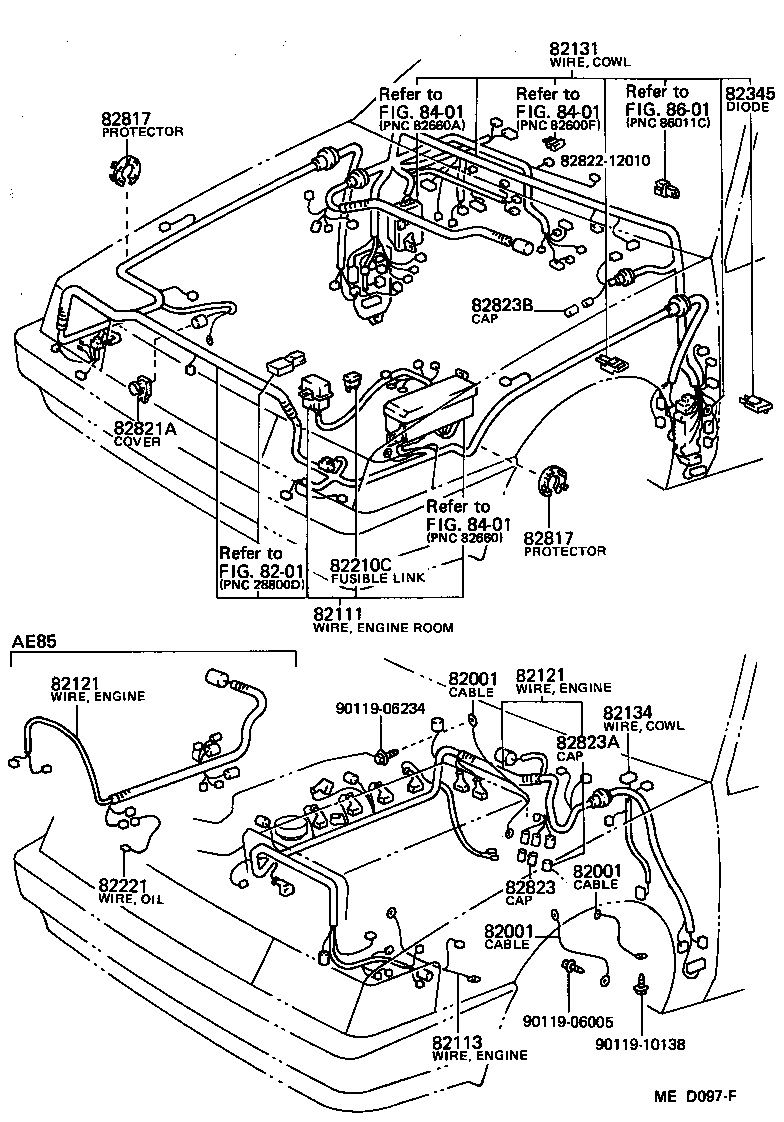

ILLUST NO. 1 OF 4(8305- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07118 |
AE8# MISSION-MEMBER,L=220 |
1 | ||
| 90980-07226 |
AE8# CLACH-FLOOR |
1 | ||
| 90980-07200 |
AE85 ENGINE-COWL |
1 | ||
| 90980-07148 |
AE8# MISSION-MEMBER,L=260 |
1 | ||
| 90980-07233 |
AE85 ENGINE-COWL |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07118 |
AE8# MISSION-MEMBER,L=220 |
1 | ||
| 90980-07226 |
AE8# CLACH-FLOOR |
1 | ||
| 90980-07200 |
AE85 ENGINE-COWL |
1 | ||
| 90980-07148 |
AE8# MISSION-MEMBER,L=260 |
1 | ||
| 90980-07233 |
AE85 ENGINE-COWL |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07118 |
AE8# MISSION-MEMBER,L=220 |
1 | ||
| 90980-07226 |
AE8# CLACH-FLOOR |
1 | ||
| 90980-07200 |
AE85 ENGINE-COWL |
1 | ||
| 90980-07148 |
AE8# MISSION-MEMBER,L=260 |
1 | ||
| 90980-07233 |
AE85 ENGINE-COWL |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-12330 |
AE85 |
1 | ||
| 82111-12810 |
AE85 |
1 | ||
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-12090 |
AE8# |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-12850 |
AE85..4FC |
1 | ||
| 82121-12270 |
AE85..4FC |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-12850 |
AE85..4FC |
1 | ||
| 82121-12270 |
AE85..4FC |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-1A260 |
AE85 |
1 | ||
| 82131-12561 |
AE85 |
1 | ||
| 82131-12562 |
AE85 |
1 | ||
| 82131-12560 |
AE85 |
1 | ||
| 82134 - WIRE, COWL, NO.4 | ||||
| 82134-12050 |
AE8# |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
AE85 30A,ﾒｽ端子,ﾋﾟﾝｸ,30A |
1 | ||
| 90982-08190 |
AE85 60A,ﾒｽ端子,黄,60A |
1 | ||
| 82221 - WIRE, OIL PRESSURE SWITCH | ||||
| 82221-16010 |
AE85 |
1 | ||
| 82345 - DIODE | ||||
| 82345-22010 |
AE8# |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-32010 |
AE8# |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-32010 |
AE8# |
2 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-12210 |
AE85 |
1 | ||
| 82823B - CAP, TERMINAL, NO.3 | ||||
| 82823-30010 |
AE85 4 POLE CONNECTOR |
1 | ||
| Common parts | ||||
| 82822-12010 | ||||
| 90119-06005 | ||||
| 90119-06234 | ||||
| 90119-10138 | ||||
| Linked diagrams | ||||
| 8201 | ||||
| 8401 | ||||
| 8601 | ||||

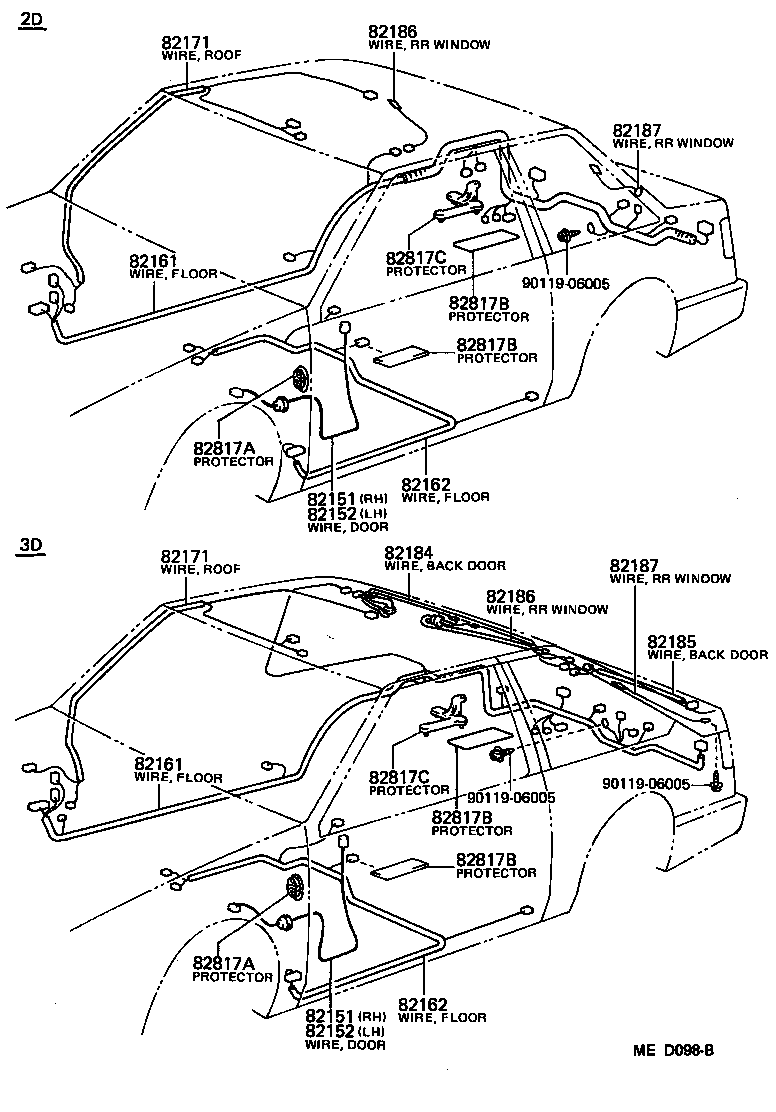

ILLUST NO. 2 OF 4(8305- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-12041 |
AE8#..APX,GL,SE |
1 | ||
| 82151-12210 |
AE8#..APX,GL,SE |
1 | ||
| 82151-12040 |
AE8#..APX,GL,SE |
1 | ||
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-12041 |
AE8#..APX,GL,SE |
1 | ||
| 82151-12210 |
AE8#..APX,GL,SE |
1 | ||
| 82151-12040 |
AE8#..APX,GL,SE |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82151-12040 |
AE8#..APX,GL,SE |
1 | ||
| 82151-12041 |
AE8#..APX,GL,SE |
1 | ||
| 82151-12210 |
AE8#..APX,GL,SE |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82151-12040 |
AE8#..APX,GL,SE |
1 | ||
| 82151-12041 |
AE8#..APX,GL,SE |
1 | ||
| 82151-12210 |
AE8#..APX,GL,SE |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-12720 |
AE85..2D |
1 | ||
| 82161-12160 |
AE85..2D |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-12720 |
AE85..2D |
1 | ||
| 82161-12160 |
AE85..2D |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-12200 |
AE85..4FC |
1 | ||
| 82162-12550 |
AE85 |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-12200 |
AE85..4FC |
1 | ||
| 82162-12550 |
AE85 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-12100 |
AE8# |
1 | ||
| 82171-12110 |
AE8#..APX,GT,GTV,SE,SR W/SUN ROOF |
1 | ||
| 82171-12110 |
AE85..SE,SR W/SUN ROOF |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-12100 |
AE8# |
1 | ||
| 82171-12110 |
AE8#..APX,GT,GTV,SE,SR W/SUN ROOF |
1 | ||
| 82171-12110 |
AE85..SE,SR W/SUN ROOF |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-12040 |
AE8#..2D |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-12040 |
AE8#..2D |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-12120 |
AE8#..2D |
1 | ||
| 82187-12050 |
AE8#..2D |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-12120 |
AE8#..2D |
1 | ||
| 82187-12050 |
AE8#..2D |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-12630 |
AE8#..APX,GL,SE |
2 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-12630 |
AE8#..APX,GL,SE |
2 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-16100 |
AE8# |
2 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-16100 |
AE8# |
2 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-16100 |
AE8# |
2 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-16100 |
AE8# |
2 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-12600 |
AE8# |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-12600 |
AE8# |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
ILLUST NO. 4 OF 4(8305- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12170 | ||||
| 82711-12200 | ||||
| 82711-12220 | ||||
| 82711-12330 | ||||
| 82711-12450 | ||||
| 82711-12770 | ||||
| 82711-12840 | ||||
| 82711-12870 | ||||
| 82711-14110 | ||||
| 82711-14350 | ||||
| 82711-16110 | ||||
| 82711-1A020 | ||||
| 82711-1A090 | ||||
| 82711-1A120 | ||||
| 82711-1A210 | ||||
| 82711-1A230 | ||||
| 82711-1A290 | ||||
| 82711-20490 | ||||
| 82711-24070 | ||||
| 90461-08187 | ||||
| 90461-08365 | ||||
| 90463-10012 | ||||
| 90463-10335 | ||||
| 90463-10521 | ||||
| 90464-00073 | ||||

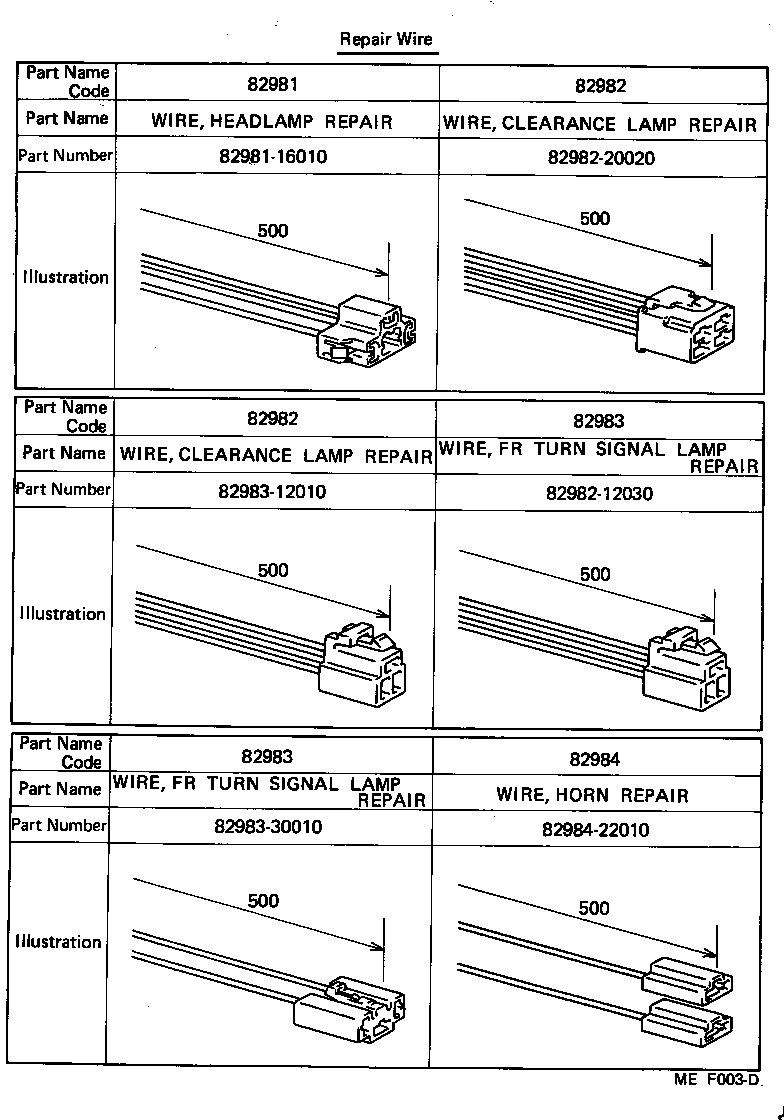

ILLUST NO. 3 OF 4(8305- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82981 - WIRE, HEADLAMP REPAIR | ||||
| 82981-16010 |
AE8# |
1 | ||
| 82982 - WIRE, CLEARANCE LAMP REPAIR | ||||
| 82983-12010 |
AE85 |
1 | ||
| 82983-12010 |
AE8# |
1 | ||
| 82982 - WIRE, CLEARANCE LAMP REPAIR | ||||
| 82983-12010 |
AE85 |
1 | ||
| 82983-12010 |
AE8# |
1 | ||
| 82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR | ||||
| 82982-12030 |
AE8# |
1 | ||
| 82982-12030 |
AE85 |
1 | ||
| 82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR | ||||
| 82982-12030 |
AE8# |
1 | ||
| 82982-12030 |
AE85 |
1 | ||
| 82984 - WIRE, HORN REPAIR | ||||
| 82984-22010 |
AE8# |
1 | ||
| Common parts | ||||
| 82981-16010 | ||||
| 82982-12030 | ||||
| 82982-20020 | ||||
| 82983-12010 | ||||
| 82983-30010 | ||||
| 82984-22010 | ||||

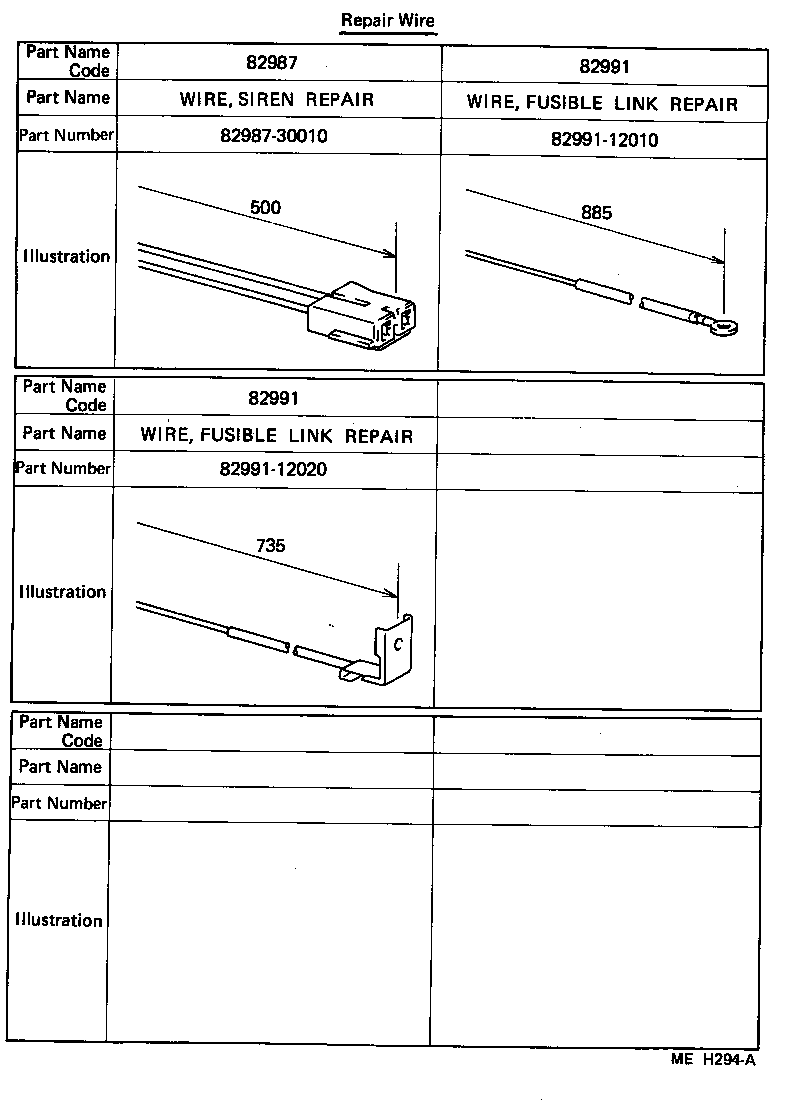

ILLUST NO. 3 OF 4(8305- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-12020 |
AE85 |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-12020 |
AE85 |
1 | ||
| Common parts | ||||
| 82987-30010 | ||||
| 82991-12010 | ||||
| 82991-12020 | ||||
