AE85-ESMNS (1983)

Toyota Corolla Levin

Production May 1983 - Apr 1987
Engine 3AU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )

Click highlighted areas on diagram

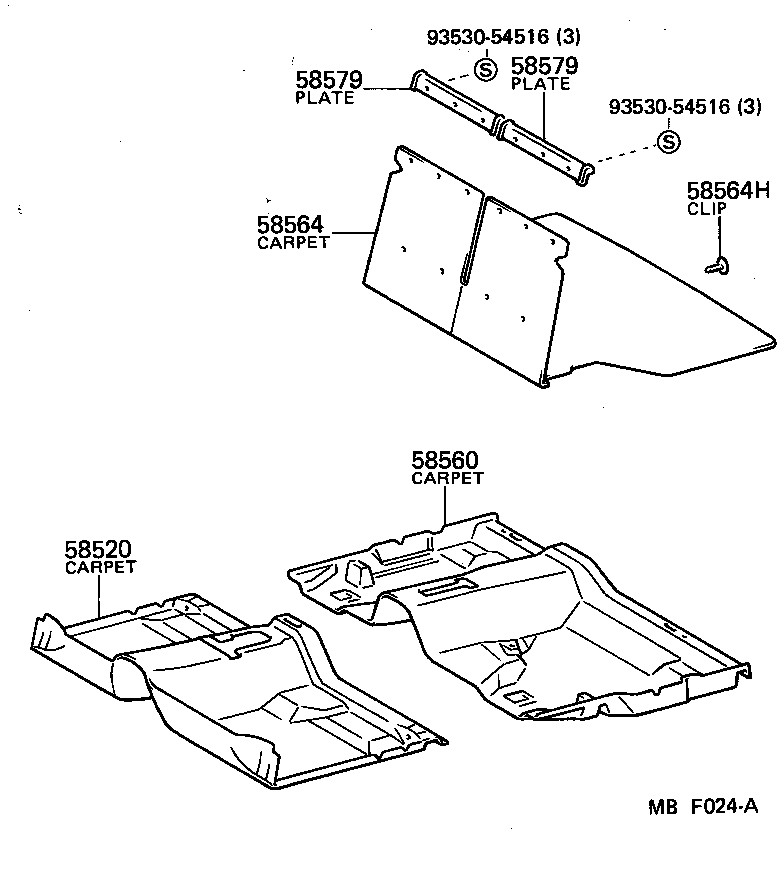

diagram 58520 58560 58564 58564H 58579 58579 9353054516 9353054516
Part # Description Qty Price
58520 - CARPET ASSY, FRONT FLOOR
58510-1262002

AE8#..GL,GT,GTV,SR

DEEP MAROON,RED/MAROON,TRIM3#

 1
58510-1268001

AE8#..GL,GT,GTV,SR

COLD SPEC,BLACK,BLACK,TRIM2#

 1
58510-1262001

AE8#..GL,GT,GTV,SR

BLACK,BLACK,TRIM2#

 1
58510-1268004

AE8#..GL,GT,GTV,SR

COLD SPEC,BLUE,BLUE,TRIM8#

 1
58510-1262004

AE8#..GL,GT,GTV,SR

BLUE,BLUE,TRIM8#

 1
58510-1268002

AE8#..GL,GT,GTV,SR

COLD SPEC,DEEP MAROON,RED/MAROON,TRIM3#

 1
58560 - CARPET ASSY, FLOOR, REAR
58540-1253001

AE8#..GL,GT,GTV,SR

BLACK,BLACK,TRIM2#

 1
58540-1245002

AE8#..GL,GT,GTV,SR

DEEP MAROON,RED/MAROON,TRIM3#

 1
58540-1245004

AE8#..GL,GT,GTV,SR

BLUE,BLUE,TRIM8#

 1
Common parts
93530-54516
