AE85-ESMNS (1983)
Toyota Corolla Levin
Production
May 1983
-
Apr 1987
Engine
3AU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

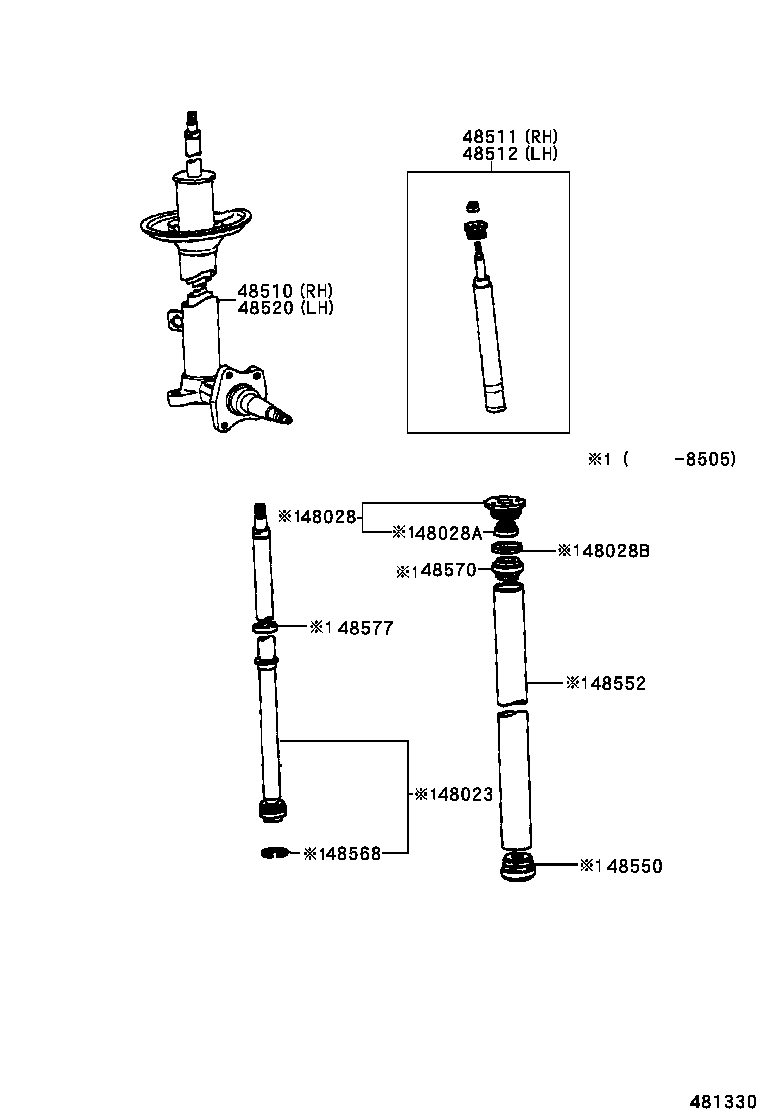

(8305- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48023 - ROD SUB-ASSY, SHOCK ABSORBER PISTON (FOR FRONT) | ||||
| 48023-12230 |
AE85..2D |
2 | ||
| 48028 - NUT SUB-ASSY, SHOCK ABSORBER RING | ||||
| 48028-14011 |
AE8# |
2 | ||
| 48028A - SEAL, OIL(FOR SHOCK ABSORBER RING NUT) | ||||
| 90316-22001 |
AE8# |
2 | ||
| 48028B - GASKET(FOR SHOCK ABSORBER RING NUT) | ||||
| 90430-43206 |
AE8# |
2 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-12480 |
AE85..2D |
1 | ||
| 48510-12280 |
AE85..2D |
1 | ||
| 48511 - ABSORBER, SHOCK FRONT, RH(FOR CARTRIDGE TYPE) | ||||
| 48511-19145 |
AE85..2D ﾏｰｸ 48511−12200 |
1 | ||
| 48511-12220 |
AE85..2D ﾏｰｸ 48511−12220 |
1 | ||
| 48512 - ABSORBER, SHOCK FRONT, LH(FOR CARTRIDGE TYPE) | ||||
| 48511-19145 |
AE85..2D ﾏｰｸ 48511−12200 |
1 | ||
| 48511-12220 |
AE85..2D ﾏｰｸ 48511−12220 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-12150 |
AE85..2D |
1 | ||
| 48520-12350 |
AE85..2D |
1 | ||
| 48550 - VALVE ASSY, SHOCK ABSORBER BASE | ||||
| 48550-14050 |
AE85..2D |
2 | ||
| 48550-12260 |
AE85..2D |
2 | ||
| 48552 - CYLINDER, SHOCK ABSORBER(FOR FRONT) | ||||
| 48552-12030 |
AE8# |
2 | ||
| 48568 - RING, SHOCK ABSORBER PISTON | ||||
| 48568-22021 |
AE8# |
2 | ||
| 48570 - GUIDE ASSY, SHOCK ABSORBER ROD | ||||
| 48022-14010 |
AE8# |
2 | ||
| 48577 - STOPPER, SHOCK ABSORBER REBOUND | ||||
| 48579-14011 |
AE8# |
2 | ||

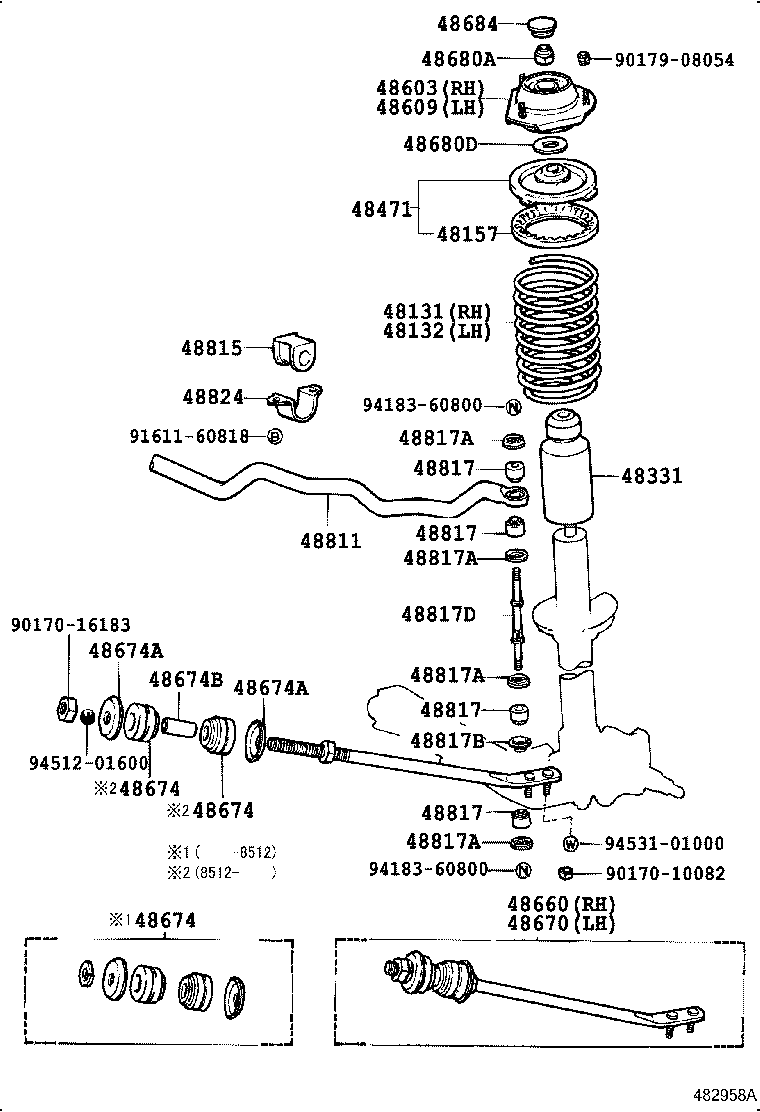

(8305- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-1A290 |
AE85..2D |
1 | ||
| 48131-1A310 |
AE85..2D W/POWER STEERING |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-1A290 |
AE85..2D W/POWER STEERING |
1 | ||
| 48131-1A270 |
AE85..2D |
1 | ||
| 48157 - INSULATOR, FRONT COIL SPRING, UPPER | ||||
| 48157-12030 |
AE8# |
2 | ||
| 48331 - BUMPER, FRONT SPRING, NO.1 | ||||
| 48331-12080 |
AE8# |
2 | ||
| 48471 - SEAT, FRONT SPRING, UPPER | ||||
| 48045-12050 |
AE8# |
2 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48603-12010 |
AE85 W/POWER STEERING |
1 | ||
| 48603-12040 |
AE85 |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-12100 |
AE85 W/POWER STEERING |
1 | ||
| 48609-12130 |
AE85 |
1 | ||
| 48660 - BAR ASSY, STRUT, RH | ||||
| 48660-19155 |
AE85 |
1 | ||
| 48660-19155 |
AE85..2D |
1 | ||
| 48670 - BAR ASSY, STRUT, LH | ||||
| 48670-19145 |
AE85..2D |
1 | ||
| 48670-19145 |
AE85 |
1 | ||
| 48674 - CUSHION, STRUT BAR | ||||
| 48674-19085 |
AE85 |
2 | ||
| 48674-19085 |
AE85..2D |
2 | ||
| 48674-14020 |
AE85..2D |
4 | ||
| 48674 - CUSHION, STRUT BAR | ||||
| 48674-19085 |
AE85 |
2 | ||
| 48674-19085 |
AE85..2D |
2 | ||
| 48674-14020 |
AE85..2D |
4 | ||
| 48674 - CUSHION, STRUT BAR | ||||
| 48674-19085 |
AE85 |
2 | ||
| 48674-19085 |
AE85..2D |
2 | ||
| 48674-14020 |
AE85..2D |
4 | ||
| 48674A - RETAINER, CUSHION(FOR STRUT BAR CUSHION) | ||||
| 90948-02036 |
AE8# |
4 | ||
| 48674A - RETAINER, CUSHION(FOR STRUT BAR CUSHION) | ||||
| 90948-02036 |
AE8# |
4 | ||
| 48674B - COLLAR(FOR STRUT BAR CUSHION) | ||||
| 90387-16108 |
AE8# |
2 | ||
| 48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) | ||||
| 94182-11400 |
AE8# |
2 | ||
| 48680D - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90303-22049 |
AE8# |
2 | ||
| 48684 - COVER, BEARING DUST | ||||
| 48684-12030 |
AE8# |
2 | ||
| 48684-14030 |
AE8# |
2 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-12340 |
AE8# OD=21 |
1 | ||
| 48811-12330 |
AE85..2D OD=20 |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-14130 |
AE85..2D STABILIZER OD=20 |
2 | ||
| 48815-14140 |
AE8# STABILIZER OD=21 |
2 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-20020 |
AE8# |
8 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-20020 |
AE8# |
8 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-20020 |
AE8# |
8 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-20020 |
AE8# |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02038 |
AE8# |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02038 |
AE8# |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02038 |
AE8# |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02038 |
AE8# |
8 | ||
| 48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR) | ||||
| 90948-02037 |
AE8# |
2 | ||
| 48817D - BOLT(FOR FRONT STABILIZER) | ||||
| 48819-20010 |
AE8# |
2 | ||
| 48824 - BRACKET, STABILIZER, FRONT | ||||
| 48824-24010 |
AE8# |
2 | ||
| Common parts | ||||
| 90170-10082 | ||||
| 90170-16183 | ||||
| 90179-08054 | ||||
| 91611-60818 | ||||
| 94183-60800 | ||||
| 94512-01600 | ||||
| 94531-01000 | ||||
