AE85-ESMNS (1983)
Toyota Corolla Levin
Production
May 1983
-
Apr 1987
Engine
3AU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 2(8305-8312) ; (8312- )AE85
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-12250 |
AE85 AISIN |
1 | ||
| 04443-12260 |
AE85 JKC |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-12520 |
AE8# AISIN |
1 | ||
| 44608-32020 |
AE85 JKC |
1 | ||
| 44606-12520 |
AE85 AISIN |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-12400 |
AE85 JKC |
1 | ||
| 44610-12390 |
AE85 AISIN |
1 | ||
| 44618 - SEAL, BOOSTER BODY | ||||
| 44621-28120 |
AE85 |
1 | ||
| 44621-28120 |
AE8# |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-28120 |
AE8# AISIN |
1 | ||
| 44628-28120 |
AE85 AISIN |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-27150 |
AE85 |
1 | ||
| 44663 - KEY, VALVE STOPPER | ||||
| 44635-28120 |
AE8# |
1 | ||
| 44635-28120 |
AE85 |
1 | ||
| 44731 - BRACKET, BRAKE BOOSTER, FRONT | ||||
| 44731-14020 |
AE85 |
1 | ||
| 44731-14020 |
AE8# |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-14010 |
AE8# |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
ILLUST NO. 1 OF 2(8305- )AE85
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-12250 |
AE85 AISIN |
1 | ||
| 04443-12260 |
AE85 JKC |
1 | ||
| 44605 - PLATE & SEAL SUB-ASSY, BOOSTER | ||||
| 44605-22021 |
AE85 |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-12520 |
AE8# AISIN |
1 | ||
| 44608-32020 |
AE85 JKC |
1 | ||
| 44606-12520 |
AE85 AISIN |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-12400 |
AE85 JKC |
1 | ||
| 44610-12390 |
AE85 AISIN |
1 | ||
| 44633 - KEY, BOOSTER VALVE PLUNGER | ||||
| 44633-28130 |
AE85 |
1 | ||
| 44637A - PLATE, BOOSTER DIAPHRAGM | ||||
| 44637-16060 |
AE85 |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44645-22020 |
AE85 |
1 | ||
| 44673A - BODY, BOOSTER VALVE | ||||
| 44673-28180 |
AE85 |
1 | ||
| 44731 - BRACKET, BRAKE BOOSTER, FRONT | ||||
| 44731-14020 |
AE85 |
1 | ||
| 44731-14020 |
AE8# |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-14010 |
AE8# |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||

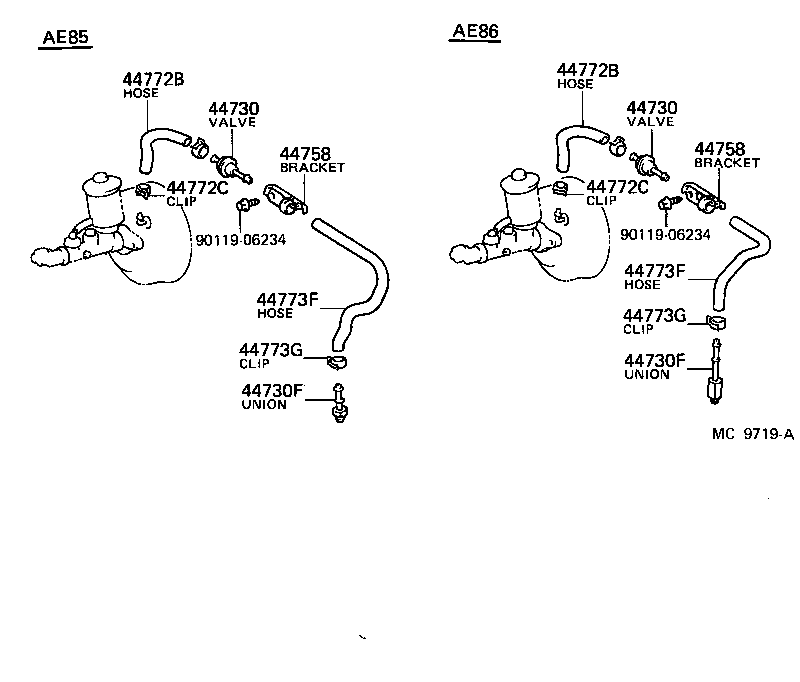

ILLUST NO. 2 OF 2(8305- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-10010 |
AE8# |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-10010 |
AE8# |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51028 |
AE85 |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51028 |
AE85 |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-12191 |
AE8# |
1 | ||
| 44758-12190 |
AE8# |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-12191 |
AE8# |
1 | ||
| 44758-12190 |
AE8# |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-12170 |
AE8# |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-12170 |
AE8# |
1 | ||
| 44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE) | ||||
| 90467-16002 |
AE8# |
2 | ||
| 44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE) | ||||
| 90467-16002 |
AE8# |
2 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-12250 |
AE85 |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-12250 |
AE85 |
1 | ||
| 44773G - CLIP(FOR UNION TO CHECK VALVE HOSE) | ||||
| 90467-16002 |
AE8# |
1 | ||
| 44773G - CLIP(FOR UNION TO CHECK VALVE HOSE) | ||||
| 90467-16002 |
AE8# |
1 | ||
| Common parts | ||||
| 90119-06234 | ||||
