AE85-ECMXS (1983)
Toyota Corolla Levin
(8305- )

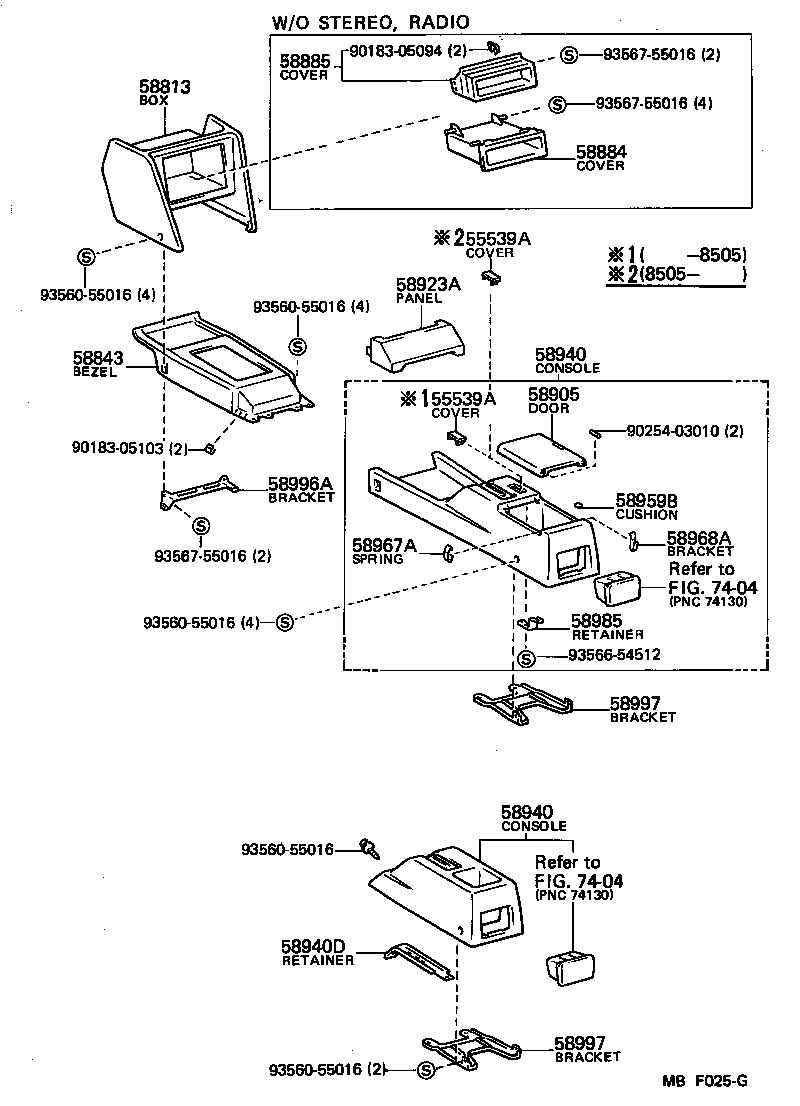

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-2401004 |
AE8#..APX,SE,SR BLUE,BLUE,TRIM8# |
1 | ||
| 55539-2401001 |
AE85..SE,SR BLACK,BLACK,TRIM2# |
1 | ||
| 55539-2401012 |
AE8#..APX,SE,SR DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-2401004 |
AE8#..APX,SE,SR BLUE,BLUE,TRIM8# |
1 | ||
| 55539-2401001 |
AE85..SE,SR BLACK,BLACK,TRIM2# |
1 | ||
| 55539-2401012 |
AE8#..APX,SE,SR DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 58813 - BOX, CONSOLE, UPPER | ||||
| 58813-1208101 |
AE8# BLACK,BLACK,TRIM2# |
1 | ||
| 58813-1208002 |
AE8# DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 58813-1208004 |
AE8# BLUE,BLUE,TRIM8# |
1 | ||
| 58843 - BEZEL, SHIFTING HOLE | ||||
| 58811-1236002 |
AE8# DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 58811-1236004 |
AE8# BLUE,BLUE,TRIM8# |
1 | ||
| 58811-1236101 |
AE8# BLACK,BLACK,TRIM2# |
1 | ||
| 58884 - COVER, STEREO OPENING | ||||
| 55521-16010 |
AE8# |
1 | ||
| 58885 - COVER, CONSOLE BOX OPENING | ||||
| 55522-32010 |
AE8# |
1 | ||
| 55522-14080 |
AE8# |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58951-12090 |
AE8#..APX,SE,SR |
1 | ||
| 58951-12091 |
AE8#..APX,GT,SE,SR |
1 | ||
| 58951-12091 |
AE8#..APX,SE,SR |
1 | ||
| 58940 - CONSOLE ASSY, REAR | ||||
| 58901-1205004 |
AE8#..APX,SE,SR BLUE,BLUE,TRIM8# |
1 | ||
| 58901-1205101 |
AE8#..APX,GT,SE,SR BLACK,BLACK,TRIM2# |
1 | ||
| 58901-1205002 |
AE8#..APX,SE,SR DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 58940 - CONSOLE ASSY, REAR | ||||
| 58901-1205004 |
AE8#..APX,SE,SR BLUE,BLUE,TRIM8# |
1 | ||
| 58901-1205101 |
AE8#..APX,GT,SE,SR BLACK,BLACK,TRIM2# |
1 | ||
| 58901-1205002 |
AE8#..APX,SE,SR DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-16010 |
AE8#..APX,GT,SE,SR |
2 | ||
| 58959-16010 |
AE8#..APX,SE,SR |
2 | ||
| 58967A - SPRING, CONSOLE DOOR STOPPER | ||||
| 58967-12010 |
AE8#..APX,SE,SR |
2 | ||
| 58967-12010 |
AE8#..APX,SE,SR |
1 | ||
| 58967-12010 |
AE8#..APX,GT,SE,SR |
1 | ||
| 58968A - BRACKET, CONSOLE DOOR STOPPER | ||||
| 58968-12010 |
AE8#..APX,GT,SE,SR |
2 | ||
| 58968-12010 |
AE8#..APX,SE,SR |
2 | ||
| 58985 - RETAINER, CONSOLE BOX | ||||
| 58985-12020 |
AE8#..APX,GT,SE,SR |
1 | ||
| 58985-12020 |
AE8#..APX,SE,SR |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-12040 |
AE8# |
1 | ||
| 58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3 | ||||
| 58997-12050 |
AE8# |
1 | ||
| 58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3 | ||||
| 58997-12050 |
AE8# |
1 | ||
| Common parts | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 90254-03010 | ||||
| 93560-55016 | ||||
| 93566-54512 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 7404 | ||||
