AE85-ECMXS (1983)

Toyota Corolla Levin

Production May 1983 - Apr 1987
Engine 3AU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )

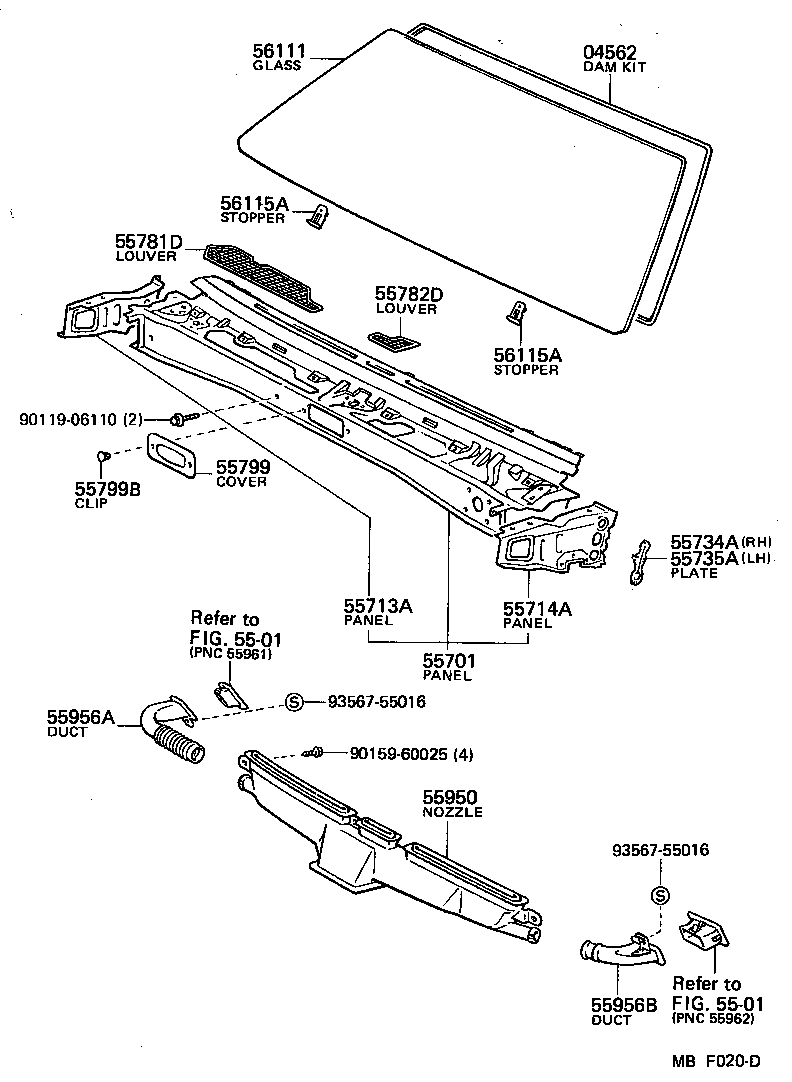

Click highlighted areas on diagram

diagram 04562 5501 5501 55701 55713A 55714A 55734A 55735A 55781D 55782D 55799 55799B 55950 55956A 55956B 56111 56115A 56115A 9011906110 9015960025 9356755016 9356755016
Part # Description Qty Price
04562 - DAM KIT, WINDSHIELD GLASS
04562-30030

AE8#

 1
04562-30040

AE8#

 1
55701 - PANEL SUB-ASSY, COWL
55700-12230

AE8#

PLANT.M21,M22

 1
55700-12410

AE8#

PLANT.A51-A54

 1
55700-12230

AE8#

 1
55713A - PANEL, COWL TOP SIDE, RH
55713-12050

AE8#

 1
55714A - PANEL, COWL TOP SIDE, LH
55714-12050

AE8#

 1
55734A - PLATE, WATER GUARD, RH
55734-12060

AE8#

 1
55735A - PLATE, WATER GUARD, LH
55735-12060

AE8#

 1
55781D - LOUVER, COWL TOP VENTILATOR, RH
55781-12120

AE8#

 1
55782D - LOUVER, COWL TOP VENTILATOR, LH
55784-12010

AE8#

 1
55799 - COVER, WIPER MOTOR
55793-24010

AE8#

 1
55799B - CLIP, WIPER MOTOR COVER, OUTER
90467-08023

AE8#

 2
55950 - NOZZLE ASSY, DEFROSTER
55950-12080

AE8#

 1
55956A - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55970-12050

AE8#

 1
55956B - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55980-12040

AE8#

 1
56111 - GLASS, WINDSHIELD
56111-12760

AE8#..GL,GT,GTV,SE,SR

*TL,T=5.3

 1
56111-12480

AE8#

*TZT,T=5.0

 1
56111-12480

AE8#..GL,GT,GTV,SE,SR

*TZT,T=5.0

 1
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-12010

AE8#

 2
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-12010

AE8#

 2
Common parts
90119-06110
90159-60025
93567-55016
Linked diagrams
5501
