Toyota Corolla levin AE85 DISTRIBUTOR

AE85-ECMXS (1983)

Toyota Corolla Levin

Production May 1983 - Apr 1987

Engine 3AU

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

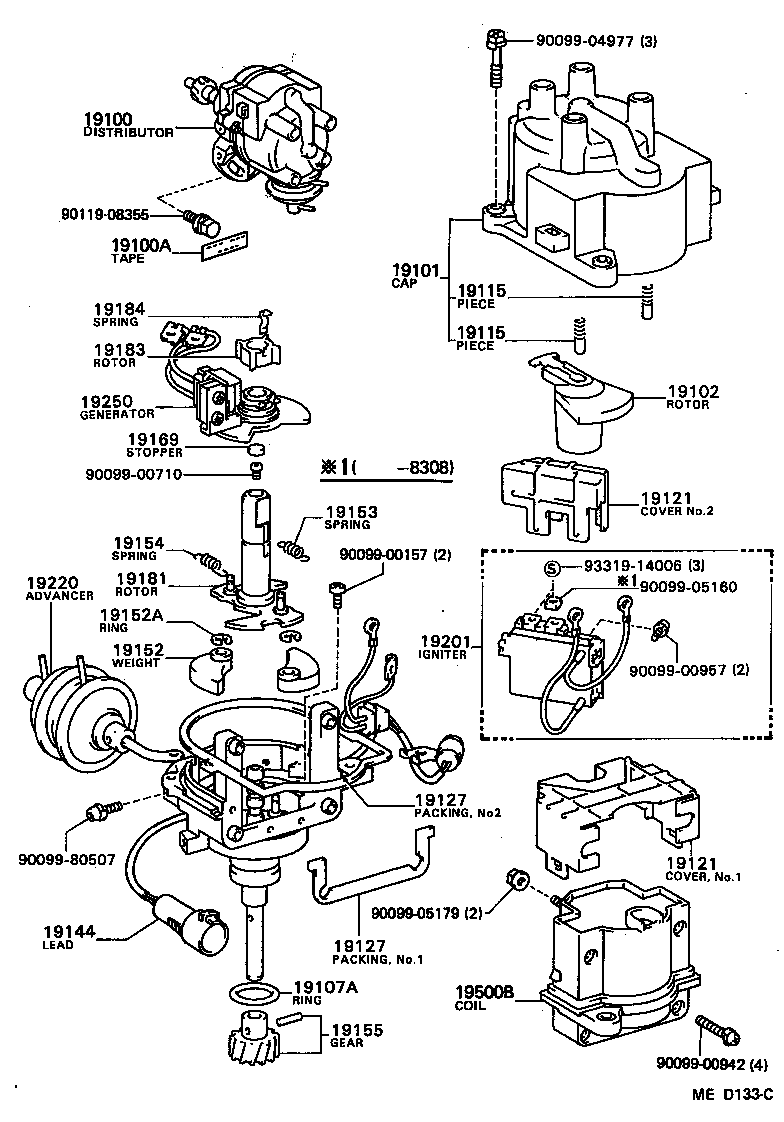

(8305-8505)3AU

Click highlighted areas on diagram

Part #	Description	Period	Qty
19100 - DISTRIBUTOR ASSY
19020-15010	3AU..AE85	05/1983 - 05/1985	1
19020-15100	3AU..AE85	05/1985 - 04/1987	1
19100A - TAPE, SEALING
90919-24004	3AU,4AGEU..AE8#	05/1983 - 04/1987	1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-15160	3AU..AE85	05/1983 - 05/1985	1
19101-11010	3AU..AE85	05/1985 - 04/1987	1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-63010	3AU..AE85	05/1983 - 05/1985	1
19102-11010	3AU..AE85	05/1985 - 04/1987	1
19107A - RING, O, DISTRIBUTOR HOUSING
96711-35030	3AU..AE85	09/1984 - 04/1987	1
96710-04030	3AU,4AGEU..AE8#	05/1983 - 09/1984	1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-50010	3AU,4AGEU..AE8#	05/1983 - 08/1983	2
19115-63010	3AU..AE85	08/1983 - 03/1985	2
19115-71010	3AU..AE85	03/1985 - 04/1987	2
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-50010	3AU,4AGEU..AE8#	05/1983 - 08/1983	2
19115-63010	3AU..AE85	08/1983 - 03/1985	2
19115-71010	3AU..AE85	03/1985 - 04/1987	2
19121 - COVER, DUST PROOF
19121-11010	3AU..AE85	05/1985 - 03/1986	1
19121-63040	3AU..AE85 NO.1	05/1983 - 05/1985	1
19121-11080	3AU..AE85	03/1986 - 04/1987	1
19121-15090	3AU..AE85 NO.2	05/1983 - 05/1985	1
19121 - COVER, DUST PROOF
19121-11010	3AU..AE85	05/1985 - 03/1986	1
19121-63040	3AU..AE85 NO.1	05/1983 - 05/1985	1
19121-11080	3AU..AE85	03/1986 - 04/1987	1
19121-15090	3AU..AE85 NO.2	05/1983 - 05/1985	1
19127 - PACKING, DUST PROOF
19127-63020	3AU..AE85 NO.1	05/1983 - 05/1985	1
19127-15090	3AU..AE85 NO.2	05/1983 - 05/1985	1
19127-11010	3AU..AE85	05/1985 - 04/1987	1
19127 - PACKING, DUST PROOF
19127-63020	3AU..AE85 NO.1	05/1983 - 05/1985	1
19127-15090	3AU..AE85 NO.2	05/1983 - 05/1985	1
19127-11010	3AU..AE85	05/1985 - 04/1987	1
19144 - LEAD, DISTRIBUTOR BREAKER
19144-15161	3AU..AE85	08/1983 - 05/1985	1
19144-15160	3AU..AE85	05/1983 - 08/1983	1
19144-15080	3AU..AE85	05/1985 - 04/1987	1
19152 - WEIGHT, GOVERNOR
19152-15160	3AU..AE85	05/1983 - 04/1987	2
19152A - RING, SNAP(FOR GOVERNOR WEIGHT)
90099-07122	3AU..AE85	05/1983 - 04/1987	2
19153 - SPRING, GOVERNOR, A
19153-14160	3AU..AE85	05/1985 - 04/1987	1
19153-15171	3AU..AE85	08/1983 - 05/1985	1
19153-15170	3AU..AE85	05/1983 - 08/1983	1
19154 - SPRING, GOVERNOR, B
19154-15171	3AU..AE85	08/1983 - 05/1985	1
19154-14160	3AU..AE85	05/1985 - 04/1987	1
19154-15170	3AU..AE85	05/1983 - 08/1983	1
19155 - GEAR, SPIRAL, DISTRIBUTOR
19195-15021	3AU..AE85	05/1983 - 05/1985	1
19169 - STOPPER, CAM GREASE
19169-63011	3AU..AE85	02/1984 - 04/1987	1
19169-32010	3AU..AE85	05/1983 - 02/1984	1
19181 - ROTOR, DISTRIBUTOR, SIGNAL
19181-15270	3AU..AE85	05/1985 - 04/1987	1
19181-15170	3AU..AE85	05/1983 - 05/1985	1
19183 - ROTOR, SIGNAL
19183-15010	3AU..AE85	05/1983 - 04/1987	1
19184 - SPRING, ROTOR SET
19184-63010	3AU..AE85	05/1983 - 04/1987	1
19201 - IGNITER
89620-10120	3AU..AE85	05/1985 - 04/1987	1
89620-16070	3AU..AE85	05/1983 - 05/1985	1
19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR
19220-15270	3AU..AE85	05/1985 - 04/1987	1
19220-15100	3AU..AE85	05/1983 - 05/1985	1
19250 - GENERATOR ASSY, SIGNAL
19251-15091	3AU..AE85	08/1983 - 04/1987	1
19251-15090	3AU..AE85	05/1983 - 08/1983	1
19500B - COIL ASSY, IGNITION
90919-02152	3AU..AE85	05/1983 - 05/1985	1
90919-02164	3AU..AE85	05/1985 - 04/1987	1
Common parts
90099-00157
90099-00710
90099-00942
90099-00957
90099-04977
90099-05160
90099-05179
90099-80507
90119-08355
93319-14006

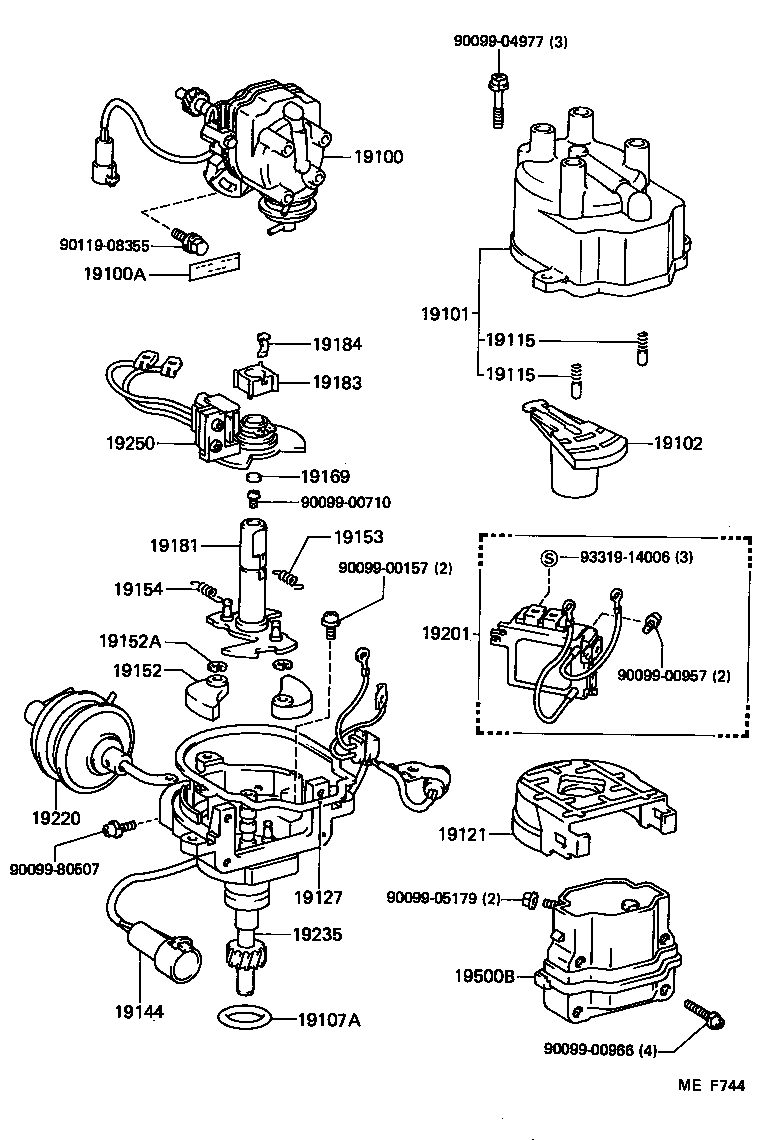

(8505- )3AU

Click highlighted areas on diagram

Part #	Description	Period	Qty
19100 - DISTRIBUTOR ASSY
19020-15010	3AU..AE85	05/1983 - 05/1985	1
19020-15100	3AU..AE85	05/1985 - 04/1987	1
19100A - TAPE, SEALING
90919-24004	3AU,4AGEU..AE8#	05/1983 - 04/1987	1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-15160	3AU..AE85	05/1983 - 05/1985	1
19101-11010	3AU..AE85	05/1985 - 04/1987	1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-63010	3AU..AE85	05/1983 - 05/1985	1
19102-11010	3AU..AE85	05/1985 - 04/1987	1
19107A - RING, O, DISTRIBUTOR HOUSING
96711-35030	3AU..AE85	09/1984 - 04/1987	1
96710-04030	3AU,4AGEU..AE8#	05/1983 - 09/1984	1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-50010	3AU,4AGEU..AE8#	05/1983 - 08/1983	2
19115-63010	3AU..AE85	08/1983 - 03/1985	2
19115-71010	3AU..AE85	03/1985 - 04/1987	2
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-50010	3AU,4AGEU..AE8#	05/1983 - 08/1983	2
19115-63010	3AU..AE85	08/1983 - 03/1985	2
19115-71010	3AU..AE85	03/1985 - 04/1987	2
19121 - COVER, DUST PROOF
19121-11010	3AU..AE85	05/1985 - 03/1986	1
19121-63040	3AU..AE85 NO.1	05/1983 - 05/1985	1
19121-11080	3AU..AE85	03/1986 - 04/1987	1
19121-15090	3AU..AE85 NO.2	05/1983 - 05/1985	1
19127 - PACKING, DUST PROOF
19127-63020	3AU..AE85 NO.1	05/1983 - 05/1985	1
19127-15090	3AU..AE85 NO.2	05/1983 - 05/1985	1
19127-11010	3AU..AE85	05/1985 - 04/1987	1
19144 - LEAD, DISTRIBUTOR BREAKER
19144-15161	3AU..AE85	08/1983 - 05/1985	1
19144-15160	3AU..AE85	05/1983 - 08/1983	1
19144-15080	3AU..AE85	05/1985 - 04/1987	1
19152 - WEIGHT, GOVERNOR
19152-15160	3AU..AE85	05/1983 - 04/1987	2
19152A - RING, SNAP(FOR GOVERNOR WEIGHT)
90099-07122	3AU..AE85	05/1983 - 04/1987	2
19153 - SPRING, GOVERNOR, A
19153-14160	3AU..AE85	05/1985 - 04/1987	1
19153-15171	3AU..AE85	08/1983 - 05/1985	1
19153-15170	3AU..AE85	05/1983 - 08/1983	1
19154 - SPRING, GOVERNOR, B
19154-15171	3AU..AE85	08/1983 - 05/1985	1
19154-14160	3AU..AE85	05/1985 - 04/1987	1
19154-15170	3AU..AE85	05/1983 - 08/1983	1
19169 - STOPPER, CAM GREASE
19169-63011	3AU..AE85	02/1984 - 04/1987	1
19169-32010	3AU..AE85	05/1983 - 02/1984	1
19181 - ROTOR, DISTRIBUTOR, SIGNAL
19181-15270	3AU..AE85	05/1985 - 04/1987	1
19181-15170	3AU..AE85	05/1983 - 05/1985	1
19183 - ROTOR, SIGNAL
19183-15010	3AU..AE85	05/1983 - 04/1987	1
19184 - SPRING, ROTOR SET
19184-63010	3AU..AE85	05/1983 - 04/1987	1
19201 - IGNITER
89620-10120	3AU..AE85	05/1985 - 04/1987	1
89620-16070	3AU..AE85	05/1983 - 05/1985	1
19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR
19220-15270	3AU..AE85	05/1985 - 04/1987	1
19220-15100	3AU..AE85	05/1983 - 05/1985	1
19235 - HOUSING, DISTRIBUTOR
19235-14040	3AU..AE85	05/1985 - 04/1987	1
19250 - GENERATOR ASSY, SIGNAL
19251-15091	3AU..AE85	08/1983 - 04/1987	1
19251-15090	3AU..AE85	05/1983 - 08/1983	1
19500B - COIL ASSY, IGNITION
90919-02152	3AU..AE85	05/1983 - 05/1985	1
90919-02164	3AU..AE85	05/1985 - 04/1987	1
Common parts
90099-00157
90099-00710
90099-00957
90099-00966
90099-04977
90099-05179
90099-80507
90119-08355
93319-14006
