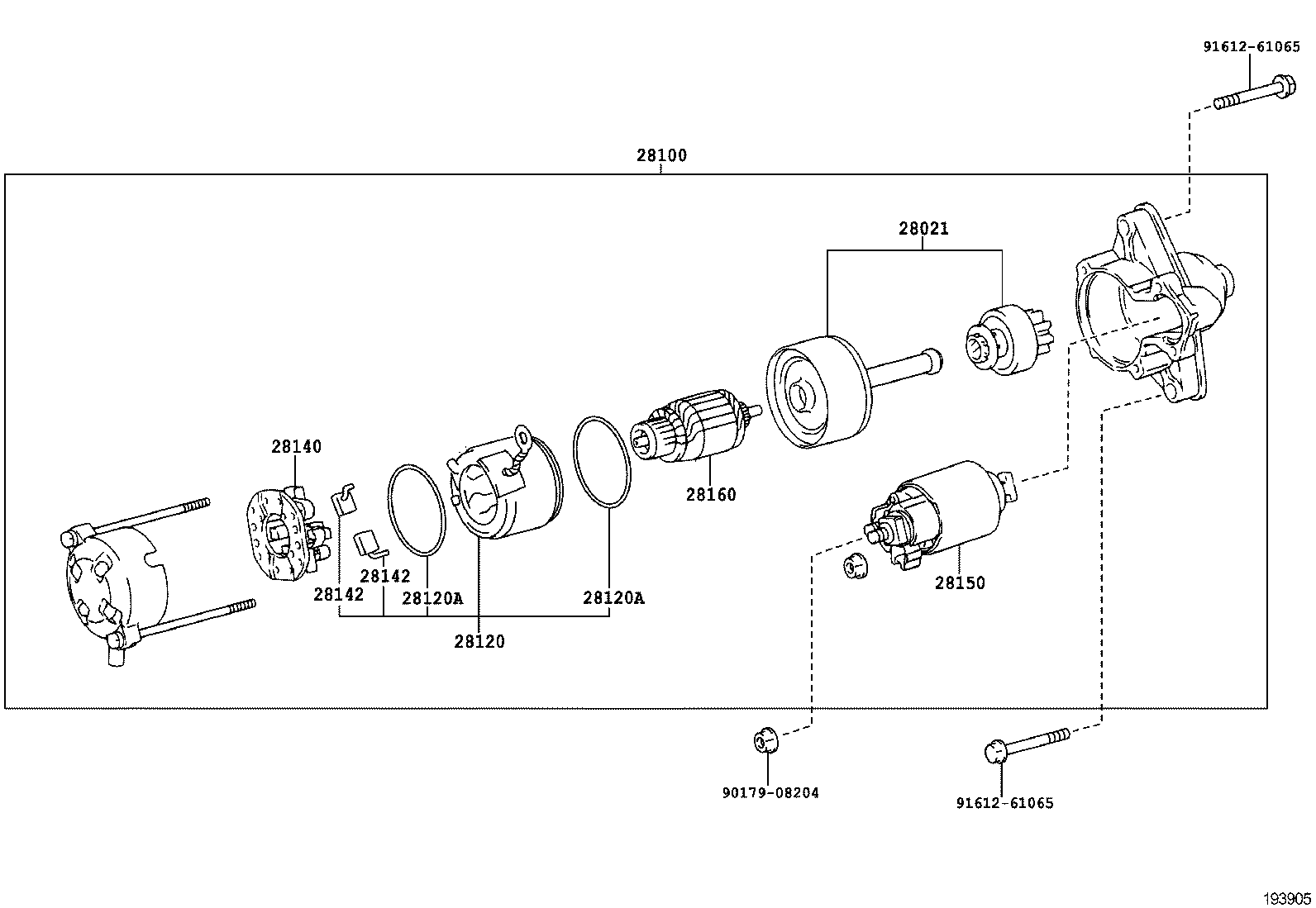

Toyota Corolla axio/fielder ZRE162 STARTER

Part #	Description	Period	Qty
28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING
28021-70020	1NZFE,2ZRFAE..NZE161,ZRE162..CVT	04/2012 - 03/2015	1
28100 - STARTER ASSY
28100-37031	2ZRFAE..ZRE162 12V 1.0KW,寒冷地仕様	04/2012 - 07/2014	1
28100-37032	2ZRFAE..ZRE162 12V 1.0KW,寒冷地仕様	08/2014 - 03/2015	1
28100-37021	2ZRFAE..ZRE162 12V 0.8KW	04/2012 - 03/2015	1
28120 - YOKE ASSY, STARTER
28120-47120	1NZFE,2ZRFAE..NZE161,ZRE162..CVT	04/2012 - 03/2015	1
28120-40130	1NZFE,2ZRFAE..NZE161,ZRE162..CVT 寒冷地仕様	04/2012 - 03/2015	1
28120A - RING, O(FOR STARTER YOKE)
90099-14092	1NZFE,2ZRFAE..NZE161,ZRE162..CVT	04/2012 - 03/2015	2
28120A - RING, O(FOR STARTER YOKE)
90099-14092	1NZFE,2ZRFAE..NZE161,ZRE162..CVT	04/2012 - 03/2015	2
28140 - HOLDER ASSY, STARTER BRUSH
28140-70020	1NZFE,2ZRFAE..NZE161,ZRE162..CVT	04/2012 - 03/2015	1
28142 - BRUSH, STARTER
28142-70020	1NZFE,2ZRFAE..NZE161,ZRE162..CVT	04/2012 - 03/2015	2
28142 - BRUSH, STARTER
28142-70020	1NZFE,2ZRFAE..NZE161,ZRE162..CVT	04/2012 - 03/2015	2
28150 - SWITCH ASSY, MAGNET STARTER
28150-22100	2ZRFAE..ZRE162	04/2012 - 03/2015	1
28160 - ARMATURE ASSY, STARTER
28160-70050	1NZFE,2ZRFAE..NZE161,ZRE162..CVT 寒冷地仕様	04/2012 - 03/2015	1
28160-70021	1NZFE,2ZRFAE..NZE161,ZRE162..CVT	04/2012 - 03/2015	1
Common parts
90179-08204
91612-61065

ZRE162G-AWXSP (2012)
