Toyota Corolla axio/fielder ZRE162 MANIFOLD

Part #	Description	Period	Qty
17111 - MANIFOLD, INTAKE
17120-37031	2ZRFAE..ZRE162	04/2012 - 03/2015	1
17118 - STAY, MANIFOLD
17118-37010	2ZRFAE..ZRE162	04/2012 - 03/2015	1
17138B - STAY, INTAKE MANIFOLD
17138-37010	2ZRFAE..ZRE162	04/2012 - 05/2013	1
17138-37011	2ZRFAE..ZRE162	05/2013 - 03/2015	1
17141 - MANIFOLD, EXHAUST
17141-37130	2ZRFAE..ZRE162	04/2012 - 03/2015	1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08026	2ZRFAE..ZRE162 NO.1	04/2012 - 03/2015	2
90126-08052	2ZRFAE..ZRE162 NO.2	04/2012 - 03/2015	5
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08026	2ZRFAE..ZRE162 NO.1	04/2012 - 03/2015	2
90126-08052	2ZRFAE..ZRE162 NO.2	04/2012 - 03/2015	5
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-37110	2ZRFAE..ZRE162	04/2012 - 03/2015	1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-37100	2ZRFAE..ZRE162	04/2012 - 03/2015	1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-37010	2ZRFAE..ZRE162	04/2012 - 03/2015	1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-37030	2ZRFAE..ZRE162	04/2012 - 03/2015	1
Common parts
90119-08C87
90177-08003
90179-08101
90339-09003
90467-14003
91551-80825
91671-80814
91672-81025
94151-80800

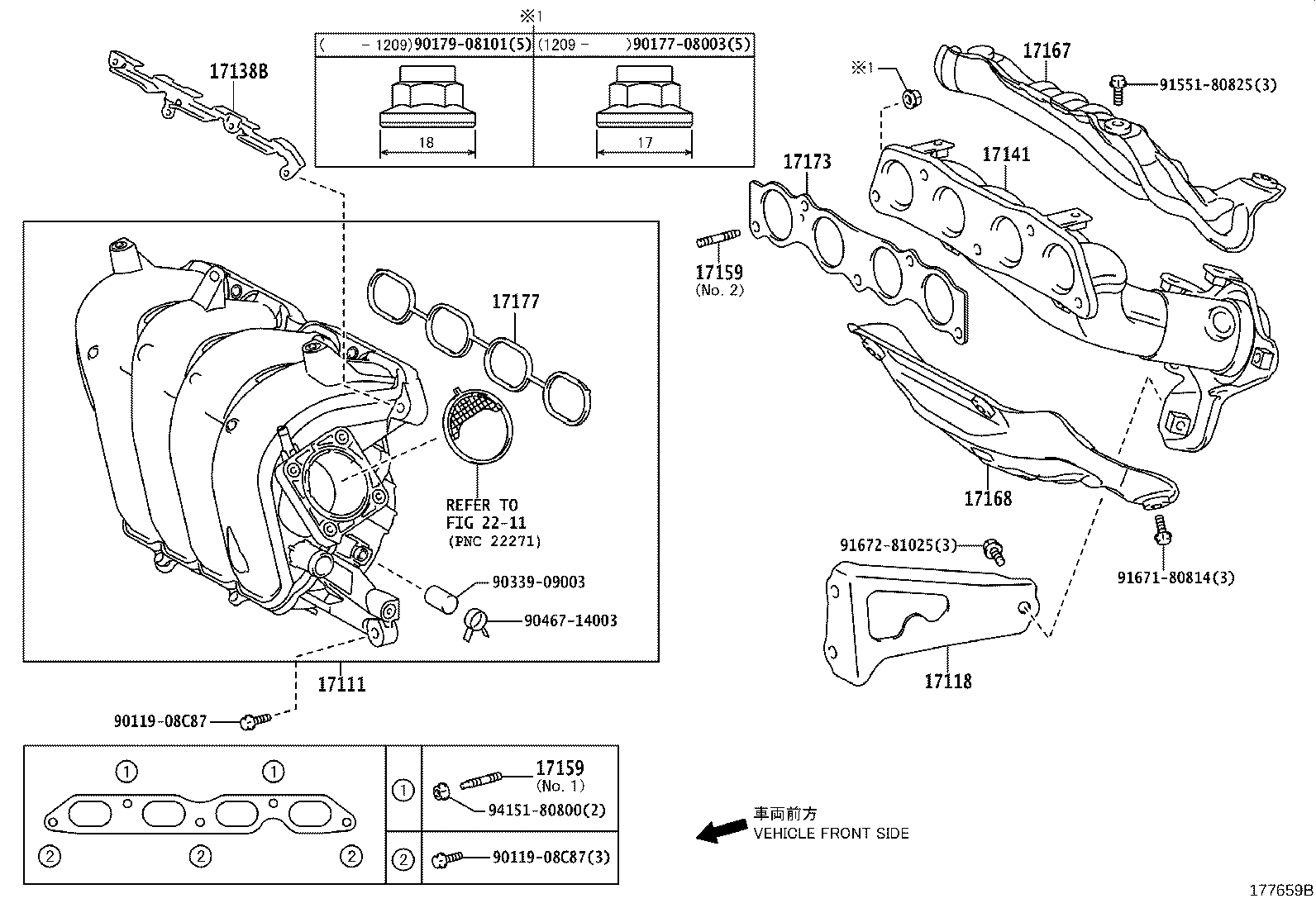

Linked diagrams
2211

ZRE162G-AWXSP (2012)
