ZRE162G-AWXSP (2012)
Toyota Corolla Axio/Fielder

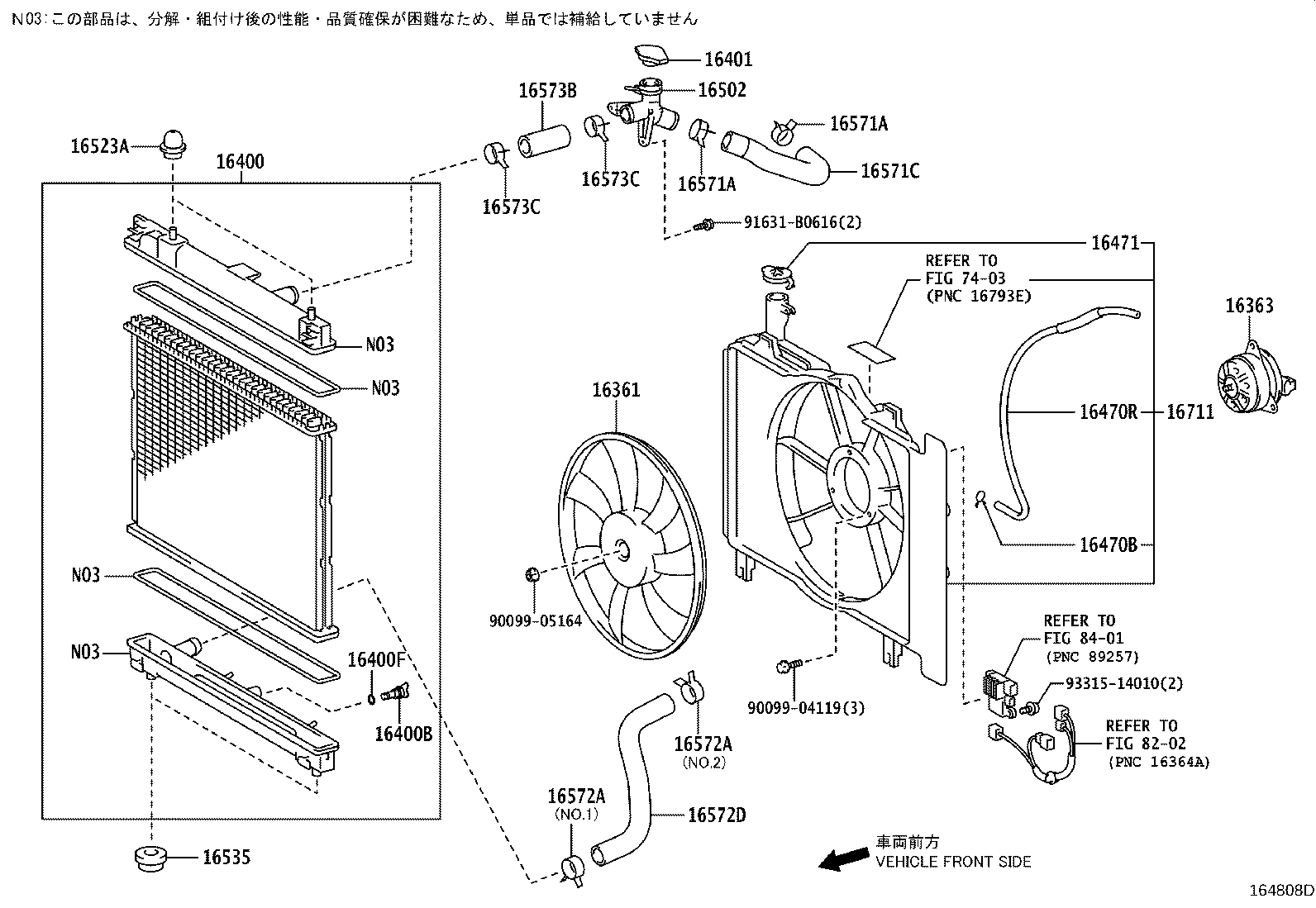

ILLUST NO. 1 OF 2(1204- )2ZRFAE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-21090 |
2ZRFAE..ZRE162 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-28160 |
2ZRFAE..ZRE162 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-21270 |
2ZRFAE..ZRE162 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-21280 |
2ZRFAE..ZRE162 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
2ZRFAE..ZRE162 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-31520 |
2ZRFAE..ZRE162 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2ZRFAE..ZRE162 |
1 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 16378-37020 |
2ZRFAE..ZRE162 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-23030 |
2ZRFAE..ZRE162 |
1 | ||
| 16502 - FILLER SUB-ASSY, WATER | ||||
| 16502-37010 |
2ZRFAE..ZRE162 |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-21030 |
2ZRFAE..ZRE162 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90480-22025 |
2ZRFAE..ZRE162 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-33006 |
2ZRFAE..ZRE162 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-33006 |
2ZRFAE..ZRE162 |
2 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-37180 |
2ZRFAE..ZRE162 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37005 |
2ZRFAE..ZRE162 NO.2 |
1 | ||
| 90467-34004 |
2ZRFAE..ZRE162 NO.1 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37005 |
2ZRFAE..ZRE162 NO.2 |
1 | ||
| 90467-34004 |
2ZRFAE..ZRE162 NO.1 |
1 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-37080 |
2ZRFAE..ZRE162 |
1 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-37030 |
2ZRFAE..ZRE162 |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90467-33006 |
2ZRFAE..ZRE162 |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90467-33006 |
2ZRFAE..ZRE162 |
2 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-37110 |
2ZRFAE..ZRE162 |
1 | ||
| Common parts | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 91631-B0616 | ||||
| 93315-14010 | ||||
| Linked diagrams | ||||
| 7403 | ||||
| 8202 | ||||
| 8401 | ||||

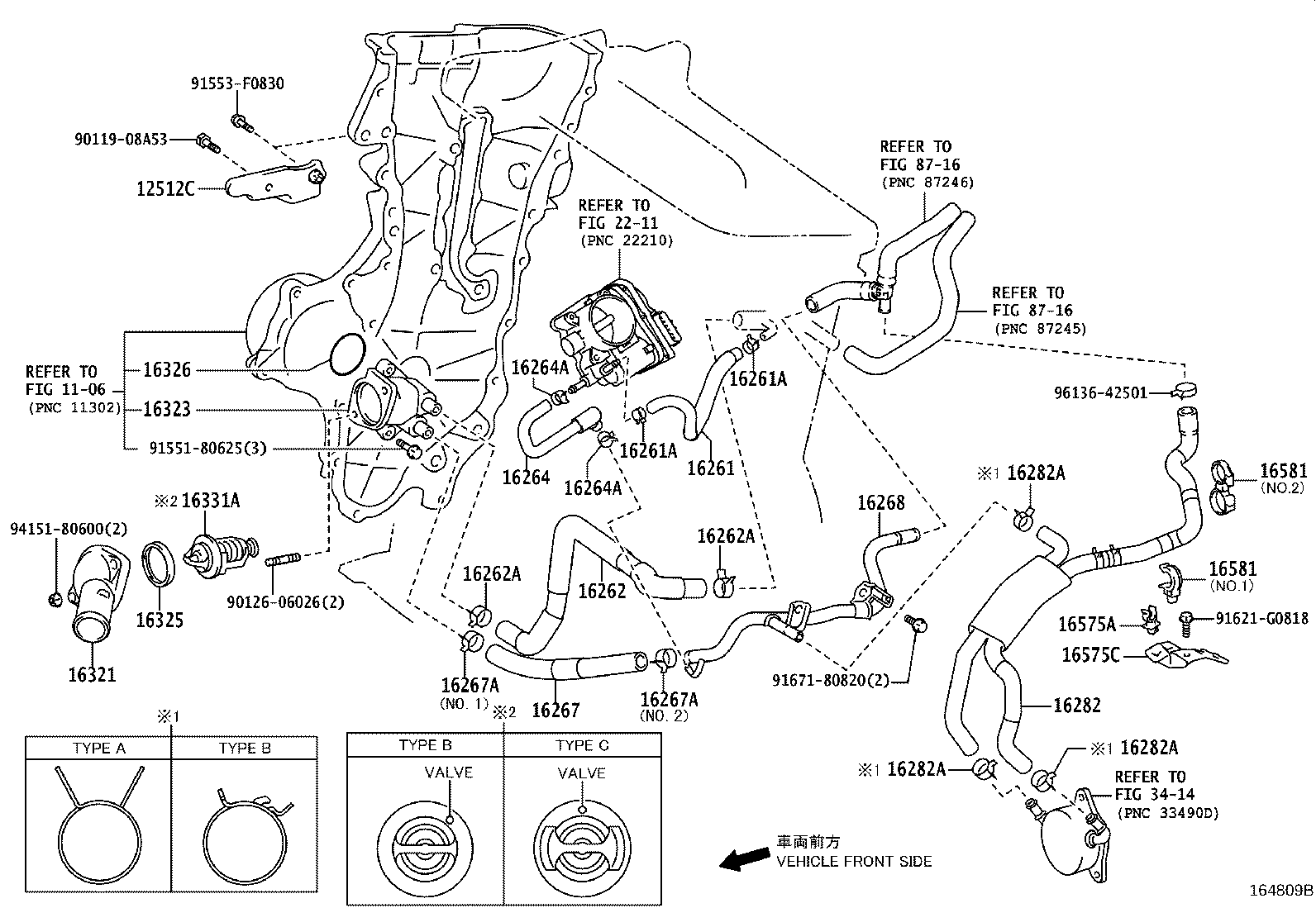

ILLUST NO. 2 OF 2(1204- )2ZRFAE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12512C - BRACKET, ALTERNATOR, NO.2 | ||||
| 12512-37010 |
2ZRFAE..ZRE162 |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-37031 |
2ZRFAE..ZRE162 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
2ZRFAE..ZRE162 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
2ZRFAE..ZRE162 |
2 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16262-37010 |
2ZRFAE..ZRE162 |
1 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-42501 |
2ZRFAE..ZRE162 |
2 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-42501 |
2ZRFAE..ZRE162 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-37031 |
2ZRFAE..ZRE162 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
2ZRFAE..ZRE162 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
2ZRFAE..ZRE162 |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-37010 |
2ZRFAE..ZRE162 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-42501 |
2ZRFAE..ZRE162 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-42501 |
2ZRFAE..ZRE162 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-37021 |
2ZRFAE..ZRE162 識別ﾍﾟｲﾝﾄ=黒 |
1 | ||
| 16268-37021 |
2ZRFAE..ZRE162 |
1 | ||
| 16268-37060 |
2ZRFAE..ZRE162 ﾍﾟｲﾝﾄ無し |
1 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16260-37050 |
2ZRFAE..ZRE162 |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96134-41900 |
2ZRFAE..ZRE162 TYPE A:ｲﾗｽﾄ参照 |
3 | ||
| 96136-52201 |
2ZRFAE..ZRE162 TYPE B:ｲﾗｽﾄ参照 |
3 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96134-41900 |
2ZRFAE..ZRE162 TYPE A:ｲﾗｽﾄ参照 |
3 | ||
| 96136-52201 |
2ZRFAE..ZRE162 TYPE B:ｲﾗｽﾄ参照 |
3 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96134-41900 |
2ZRFAE..ZRE162 TYPE A:ｲﾗｽﾄ参照 |
3 | ||
| 96136-52201 |
2ZRFAE..ZRE162 TYPE B:ｲﾗｽﾄ参照 |
3 | ||
| 16321 - INLET, WATER | ||||
| 16321-37010 |
2ZRFAE..ZRE162 |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-37040 |
2ZRFAE..ZRE162 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-28010 |
2ZRFAE..ZRE162 |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-37030 |
2ZRFAE..ZRE162 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03148 |
2ZRFAE..ZRE162 *WAX 80−93 |
1 | ||
| 16575A - CLIP, RADIATOR HOSE, NO.5 | ||||
| 90949-01C99 |
2ZRFAE..ZRE162 |
1 | ||
| 16575C - BRACKET, WATER HOSE CLAMP, NO.1 | ||||
| 16575-37030 |
2ZRFAE..ZRE162 |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-21060 |
2ZRFAE..ZRE162 NO.2 |
1 | ||
| 16581-37130 |
2ZRFAE..ZRE162 NO.1 |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-21060 |
2ZRFAE..ZRE162 NO.2 |
1 | ||
| 16581-37130 |
2ZRFAE..ZRE162 NO.1 |
1 | ||
| Common parts | ||||
| 90119-08A53 | ||||
| 90126-06026 | ||||
| 91551-80625 | ||||
| 91553-F0830 | ||||
| 91621-G0818 | ||||
| 91671-80820 | ||||
| 94151-80600 | ||||
| 96136-42501 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 2211 | ||||
| 3414 | ||||
| 8716 | ||||
