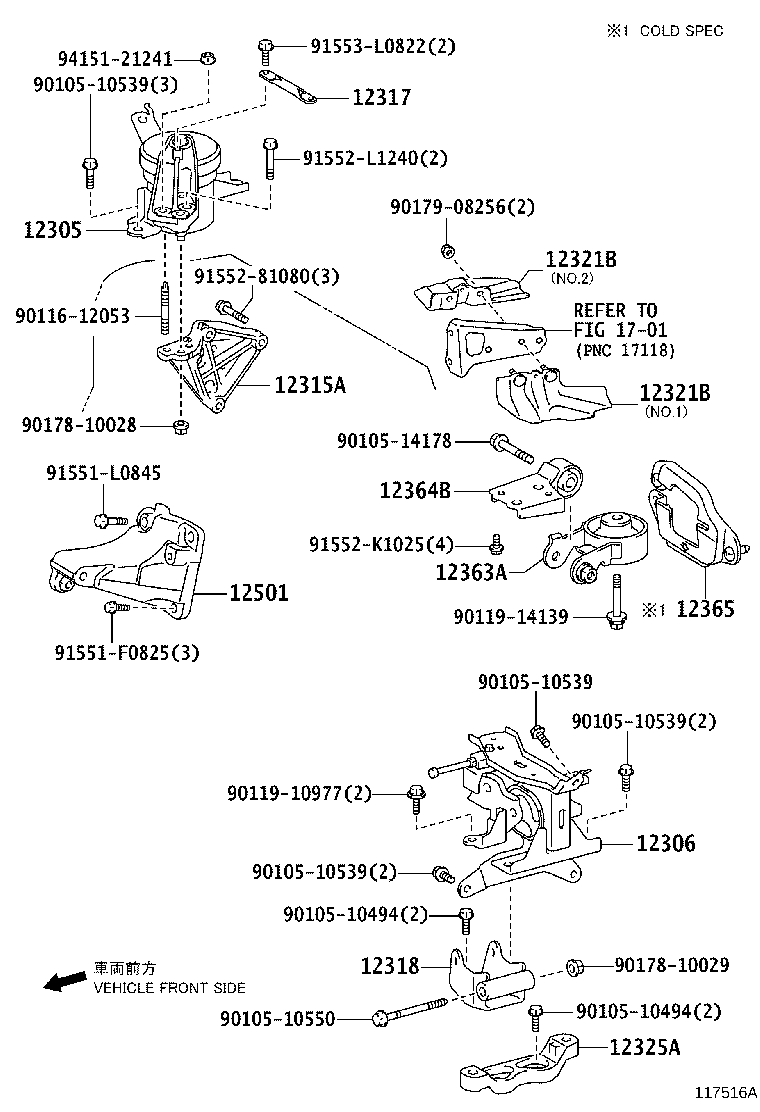

Toyota Corolla axio/fielder ZRE162 MOUNTING

Part #	Description	Period	Qty
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-37270	2ZRFAE..ZRE162	04/2012 - 03/2015	1
12306 - INSULATOR SUB-ASSY, ENGINE MOUNTING, LH
12306-37030	2ZRFAE..ZRE162	04/2012 - 03/2015	1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-37050	2ZRFAE..ZRE162	04/2012 - 03/2015	1
12317 - STAY, ENGINE MOUNTING, RH
12317-37010	2ZRFAE..ZRE162	04/2012 - 03/2015	1
12318 - STAY, ENGINE MOUNTING, LH
12318-37010	2ZRFAE..ZRE162	04/2012 - 03/2015	1
12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT
43409-12060	2ZRFAE..ZRE162 NO.1	04/2012 - 03/2015	1
43498-12051	2ZRFAE..ZRE162 NO.2	04/2012 - 03/2015	1
12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT
43409-12060	2ZRFAE..ZRE162 NO.1	04/2012 - 03/2015	1
43498-12051	2ZRFAE..ZRE162 NO.2	04/2012 - 03/2015	1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-37120	2ZRFAE..ZRE162	04/2012 - 03/2015	1
12363A - ROD, ENGINE MOVING CONTROL
12363-21150	2ZRFAE..ZRE162	04/2012 - 04/2014	1
12363-21151	2ZRFAE..ZRE162	05/2014 - 03/2015	1
12364B - ROD, ENGINE MOVING CONTROL, NO.2
12364-37020	2ZRFAE..ZRE162	04/2012 - 03/2015	1
12365 - COVER, ENGINE MOVING CONTROL ROD
12365-40010	2ZRFAE..ZRE162 寒冷地仕様	04/2012 - 03/2015	1
12501 - BRACKET SUB-ASSY, ALTERNATOR
12501-37010	2ZRFAE..ZRE162	04/2012 - 03/2015	1
Common parts
90105-10494
90105-10539
90105-10550
90105-14178
90116-12053
90119-10977
90119-14139
90178-10028
90178-10029
90179-08256
91551-F0825
91551-L0845
91552-81080
91552-K1025
91552-L1240
91553-L0822
94151-21241
Linked diagrams
1701

ZRE162G-AWXSP (2012)
