ZRE144G-AWXEK (2006)
Toyota Corolla Axio/Fielder

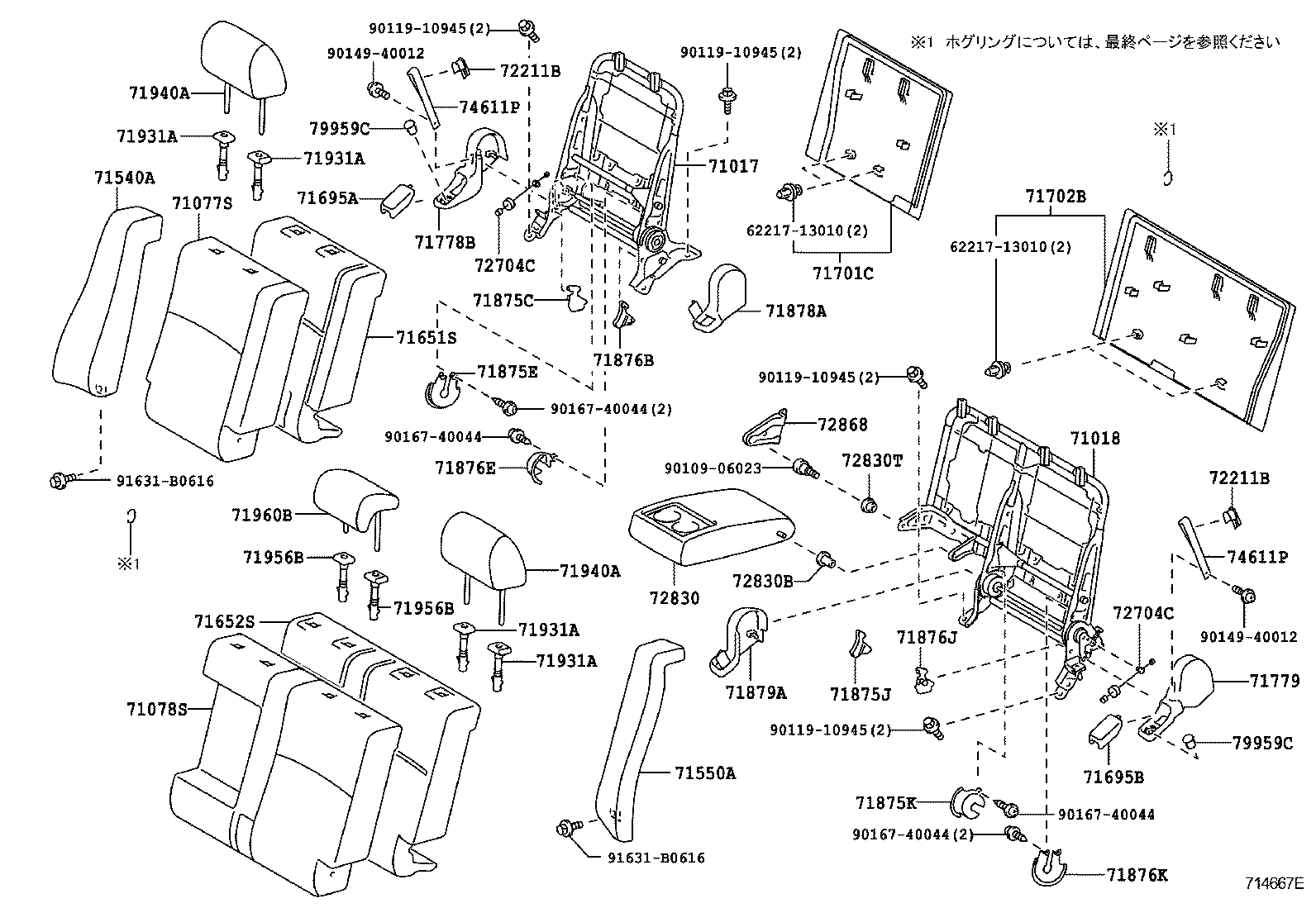

ILLUST NO. 1 OF 2(0609-0810)WG
ｼｰﾄﾊﾞｯｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-13310 |
NZE14#,ZRE14#..WG |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-13130 |
NZE14#,ZRE14#..WG |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-13A60B2 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DARK GRAY,TRIM1# |
1 | ||
| 71077-13A50B2 |
ZRE14#..S DK.GRAY,TRIM1# |
1 | ||
| 71077-13A60B2 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ,DARK GRAY,TRIM1# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-13A50B2 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DARK GRAY,TRIM1# |
1 | ||
| 71078-13A40B2 |
ZRE14#..S DK.GRAY,TRIM1# |
1 | ||
| 71078-13A50B2 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ,DARK GRAY,TRIM1# |
1 | ||
| 71540A - BACK ASSY, REAR SIDE SEAT, RH | ||||
| 71540-13240B2 |
ZRE14#..S DK.GRAY,TRIM1# |
1 | ||
| 71540-13250B2 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DARK GRAY,TRIM1# |
1 | ||
| 71540-13250B2 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ,DARK GRAY,TRIM1# |
1 | ||
| 71540-13240B2 |
ZRE14#..S DK.GRAY,TRIM1# |
1 | ||
| 71540-13250B2 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ,DARK GRAY,TRIM1# |
1 | ||
| 71540-13250B2 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DARK GRAY,TRIM1# |
1 | ||
| 71550A - BACK ASSY, REAR SIDE SEAT, LH | ||||
| 71550-13250B2 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ,DARK GRAY,TRIM1# |
1 | ||
| 71550-13240B2 |
ZRE14#..S DK.GRAY,TRIM1# |
1 | ||
| 71550-13250B2 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DARK GRAY,TRIM1# |
1 | ||
| 71550-13250B2 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DARK GRAY,TRIM1# |
1 | ||
| 71550-13240B2 |
ZRE14#..S DK.GRAY,TRIM1# |
1 | ||
| 71550-13250B2 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ,DARK GRAY,TRIM1# |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-13340 |
NZE14#,ZRE14#..WG |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-13200 |
NZE14#,ZRE14#..WG |
1 | ||
| 71695A - PROTECTOR, REAR SEAT, NO.1 RH | ||||
| 71695-12020B0 |
NZE14#,ZRE14#..WG DK.GRAY,TRIM1# |
1 | ||
| 71695B - PROTECTOR, REAR SEAT, NO.1 LH | ||||
| 71695-12020B0 |
NZE14#,ZRE14#..WG DK.GRAY,TRIM1# |
1 | ||
| 71701C - BOARD SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71701-13010B0 |
ZRE14#..S GRAY,TRIM1# |
1 | ||
| 71702B - BOARD SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71702-13010B0 |
ZRE14#..S GRAY,TRIM1# |
1 | ||
| 71778B - COVER, REAR SEAT SIDE HINGE MALE, RH | ||||
| 71778-13030B0 |
NZE14#,ZRE14#..WG DK.GRAY,TRIM1# |
1 | ||
| 71779 - COVER, REAR SEAT SIDE HINGE MALE, LH | ||||
| 71779-13020B0 |
NZE14#,ZRE14#..WG DK.GRAY,TRIM1# |
1 | ||
| 71875C - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-13050B0 |
NZE14#,ZRE14#..WG DK.GRAY,TRIM1# |
1 | ||
| 71875E - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-28060 |
NZE14#,ZRE14#..WG |
1 | ||
| 71875J - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-13040B0 |
NZE14#,ZRE14#..WG DK.GRAY,TRIM1# |
1 | ||
| 71875K - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-13060 |
NZE14#,ZRE14#..WG |
1 | ||
| 71876B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-13030B0 |
NZE14#,ZRE14#..WG DK.GRAY,TRIM1# |
1 | ||
| 71876E - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-13050 |
NZE14#,ZRE14#..WG |
1 | ||
| 71876J - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-13060B0 |
NZE14#,ZRE14#..WG DK.GRAY,TRIM1# |
1 | ||
| 71876K - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-28060 |
NZE14#,ZRE14#..WG |
1 | ||
| 71878A - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-13010B0 |
NZE14#,ZRE14#..WG DK.GRAY,TRIM1# |
1 | ||
| 71879A - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71879-13010B0 |
NZE14#,ZRE14#..WG DK.GRAY,TRIM1# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-47010B2 |
NZE14#,ZRE14#..WG ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NZE14#,ZRE14#..WG ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-47010B2 |
NZE14#,ZRE14#..WG ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NZE14#,ZRE14#..WG ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-47010B2 |
NZE14#,ZRE14#..WG ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NZE14#,ZRE14#..WG ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-47010B2 |
NZE14#,ZRE14#..WG ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NZE14#,ZRE14#..WG ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-13330B3 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
2 | ||
| 71940-13330B3 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ,DK.GRAY,TRIM1# |
2 | ||
| 71940-13320B1 |
ZRE14#..S DK.GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-13330B3 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
2 | ||
| 71940-13330B3 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ,DK.GRAY,TRIM1# |
2 | ||
| 71940-13320B1 |
ZRE14#..S DK.GRAY,TRIM1# |
2 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-47010B2 |
NZE14#,ZRE14#..WG ﾛｯｸ付,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
NZE14#,ZRE14#..WG ﾛｯｸ無,DK.GRAY,TRIM1# |
1 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-47010B2 |
NZE14#,ZRE14#..WG ﾛｯｸ付,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
NZE14#,ZRE14#..WG ﾛｯｸ無,DK.GRAY,TRIM1# |
1 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-13150B1 |
ZRE14#..S DK.GRAY,TRIM1# |
1 | ||
| 71960-13160B3 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71960-13160B3 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ,DK.GRAY,TRIM1# |
1 | ||
| 72211B - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-13030B0 |
NZE14#,ZRE14#..WG DK.GRAY,TRIM1# |
2 | ||
| 72211B - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-13030B0 |
NZE14#,ZRE14#..WG DK.GRAY,TRIM1# |
2 | ||
| 72704C - CABLE, REAR NO.2 SEAT RECLINING CONTROL | ||||
| 72704-13020 |
NZE14#,ZRE14#..WG |
2 | ||
| 72704C - CABLE, REAR NO.2 SEAT RECLINING CONTROL | ||||
| 72704-13020 |
NZE14#,ZRE14#..WG |
2 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-13060B2 |
ZRE14#..S DK.GRAY,TRIM1# |
1 | ||
| 72830-13070B2 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 72830-13070B2 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ,DK.GRAY,TRIM1# |
1 | ||
| 72830B - BUSH(FOR REAR SEAT CENTER ARMREST) | ||||
| 90386-06011 |
NZE14#..WG;NZE14#,ZRE14#..G,LXL,S |
1 | ||
| 72830T - BUSH (FOR REAR SEAT CENTER ARMREST) | ||||
| 90386-08077 |
NZE14#..WG;NZE14#,ZRE14#..G,LXL,S |
1 | ||
| 72868 - COVER, CENTER ARMREST HINGE, RH | ||||
| 72868-13010B0 |
NZE14#,ZRE14#..WG DK.GRAY,TRIM1# |
1 | ||
| 74611P - PAD, ASSIST GRIP | ||||
| 74611-13020B0 |
NZE14#,ZRE14#..WG DK.GRAY,TRIM1# |
2 | ||
| 74611P - PAD, ASSIST GRIP | ||||
| 74611-13020B0 |
NZE14#,ZRE14#..WG DK.GRAY,TRIM1# |
2 | ||
| 79959C - COVER, REAR SEAT LEG | ||||
| 79959-13010 |
NZE14#,ZRE14#..WG |
2 | ||
| 79959C - COVER, REAR SEAT LEG | ||||
| 79959-13010 |
NZE14#,ZRE14#..WG |
2 | ||
| Common parts | ||||
| 62217-13010 | ||||
| 90109-06023 | ||||
| 90119-10945 | ||||
| 90149-40012 | ||||
| 90167-40044 | ||||
| 91631-B0616 | ||||
ILLUST NO. 2 OF 2(0609- )WG
ｼｰﾄｸｯｼｮﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015A - FRAME SUB-ASSY, REAR SEAT CUSHION, RH | ||||
| 71015-1F020 |
NZE14#,ZRE14#..WG |
1 | ||
| 71016A - FRAME SUB-ASSY, REAR SEAT CUSHION, LH | ||||
| 71016-13090 |
NZE14#,ZRE14#..WG |
1 | ||
| 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) | ||||
| 71075-13A70B2 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DARK GRAY,TRIM1# |
1 | ||
| 71075-13A70B2 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ,DARK GRAY,TRIM1# |
1 | ||
| 71075-13A50B2 |
ZRE14#..S DK.GRAY,TRIM1# |
1 | ||
| 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71076-13740B2 |
ZRE14#..S DK.GRAY,TRIM1# |
1 | ||
| 71076-13760B2 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DARK GRAY,TRIM1# |
1 | ||
| 71076-13760B2 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ,DARK GRAY,TRIM1# |
1 | ||
| 71499C - DAMPER, REAR SEAT CUSHION SPRING | ||||
| 71499-13090 |
NZE14#,ZRE14#..WG |
2 | ||
| 71499C - DAMPER, REAR SEAT CUSHION SPRING | ||||
| 71499-13090 |
NZE14#,ZRE14#..WG |
2 | ||
| 71611A - PAD, REAR SEAT CUSHION, RH | ||||
| 71611-13330 |
NZE14#,ZRE14#..WG |
1 | ||
| 71612A - PAD, REAR SEAT CUSHION, LH | ||||
| 71612-13190 |
NZE14#,ZRE14#..WG |
1 | ||
| 71691B - COVER, REAR SEAT LOCK, OUTER RH | ||||
| 71691-13030B0 |
NZE14#,ZRE14#..WG DK.GRAY,TRIM1# |
1 | ||
| 71691C - COVER, REAR SEAT LOCK, INNER RH | ||||
| 71691-13040B0 |
NZE14#,ZRE14#..WG DK.GRAY,TRIM1# |
1 | ||
| 71691D - COVER, REAR SEAT CUSHION HINGE, UPPER RH | ||||
| 71691-13050B0 |
NZE14#,ZRE14#..WG DK.GRAY,TRIM1# |
1 | ||
| 71692B - COVER, REAR SEAT LOCK, OUTER LH | ||||
| 71692-13020B0 |
NZE14#,ZRE14#..WG DK.GRAY,TRIM1# |
1 | ||
| 71692C - COVER, REAR SEAT LOCK, INNER LH | ||||
| 71692-13030B0 |
NZE14#,ZRE14#..WG DK.GRAY,TRIM1# |
1 | ||
| 71692D - COVER, REAR SEAT CUSHION HINGE, UPPER LH | ||||
| 71691-13060B0 |
NZE14#,ZRE14#..WG DK.GRAY,TRIM1# |
1 | ||
| 71692E - COVER, REAR SEAT CUSHION HINGE, NO.2 | ||||
| 71692-13050B0 |
NZE14#,ZRE14#..WG DK.GRAY,TRIM1#,右側 |
1 | ||
| 71692-13060B0 |
NZE14#,ZRE14#..WG DK.GRAY,TRIM1#,左側 |
1 | ||
| 71692E - COVER, REAR SEAT CUSHION HINGE, NO.2 | ||||
| 71692-13050B0 |
NZE14#,ZRE14#..WG DK.GRAY,TRIM1#,右側 |
1 | ||
| 71692-13060B0 |
NZE14#,ZRE14#..WG DK.GRAY,TRIM1#,左側 |
1 | ||
| 71693 - COVER, REAR SEAT CUSHION HINGE, LOWER RH | ||||
| 71693-13050B0 |
NZE14#,ZRE14#..WG DK.GRAY,TRIM1# |
2 | ||
| 71693 - COVER, REAR SEAT CUSHION HINGE, LOWER RH | ||||
| 71693-13050B0 |
NZE14#,ZRE14#..WG DK.GRAY,TRIM1# |
2 | ||
| 71693D - COVER, REAR SEAT CUSHION HINGE, INNER RH | ||||
| 71691-13070B0 |
NZE14#,ZRE14#..WG DK.GRAY,TRIM1# |
1 | ||
| 71694E - COVER, REAR SEAT CUSHION HINGE, INNER LH | ||||
| 71692-13040B0 |
NZE14#,ZRE14#..WG DK.GRAY,TRIM1# |
1 | ||
| 71695C - PROTECTOR, REAR SEAT, NO.1 | ||||
| 71695-13030B0 |
NZE14#,ZRE14#..WG DK.GRAY,TRIM1# |
2 | ||
| 71695C - PROTECTOR, REAR SEAT, NO.1 | ||||
| 71695-13030B0 |
NZE14#,ZRE14#..WG DK.GRAY,TRIM1# |
2 | ||
| 72125G - COVER, SEAT TRACK LOCK PLATE, NO.1 | ||||
| 72125-13090B0 |
NZE14#,ZRE14#..WG DK.GRAY,TRIM1# |
1 | ||
| 72125H - COVER, SEAT TRACK LOCK PLATE, NO.2 | ||||
| 72125-13080B0 |
NZE14#,ZRE14#..WG DK.GRAY,TRIM1#,左側 |
1 | ||
| 72125-13070B0 |
NZE14#,ZRE14#..WG DK.GRAY,TRIM1#,右側 |
1 | ||
| 72125H - COVER, SEAT TRACK LOCK PLATE, NO.2 | ||||
| 72125-13080B0 |
NZE14#,ZRE14#..WG DK.GRAY,TRIM1#,左側 |
1 | ||
| 72125-13070B0 |
NZE14#,ZRE14#..WG DK.GRAY,TRIM1#,右側 |
1 | ||
| 72125J - COVER, SEAT TRACK LOCK PLATE, NO.3 | ||||
| 72125-13060B0 |
NZE14#,ZRE14#..WG DK.GRAY,TRIM1# |
1 | ||
| 72670B - LOCK ASSY, REAR SEAT CUSHION, RH | ||||
| 72670-13030 |
NZE14#,ZRE14#..WG |
1 | ||
| 72670-13031 |
NZE14#,ZRE14#..WG |
1 | ||
| 72680B - LOCK ASSY, REAR SEAT CUSHION, LH | ||||
| 72680-13030 |
NZE14#,ZRE14#..WG |
1 | ||
| 72680-13031 |
NZE14#,ZRE14#..WG |
1 | ||
| 72704A - CABLE, REAR SEAT RECLINING CONTROL | ||||
| 72704-13040 |
NZE14#,ZRE14#..WG |
2 | ||
| 72704A - CABLE, REAR SEAT RECLINING CONTROL | ||||
| 72704-13040 |
NZE14#,ZRE14#..WG |
2 | ||
| 72927 - COVER, REAR SEAT CUSHION UNDER, RH | ||||
| 72927-13080B0 |
NZE14#,ZRE14#..WG DK.GRAY,TRIM1# |
1 | ||
| 72928 - COVER, REAR SEAT CUSHION UNDER, LH | ||||
| 72928-13070B0 |
NZE14#,ZRE14#..WG DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 72702-13030 | ||||
| 72702-68040 | ||||
| 90119-10945 | ||||
| 90167-40044 | ||||
| 90178-08012 | ||||
| 93568-55012 | ||||
(0609- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
