ZRE144-AEXGP (2010)

Toyota Corolla Axio/Fielder

Production May 2010 - Apr 2012
Engine 2ZRFAE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1005- )2ZRFAE

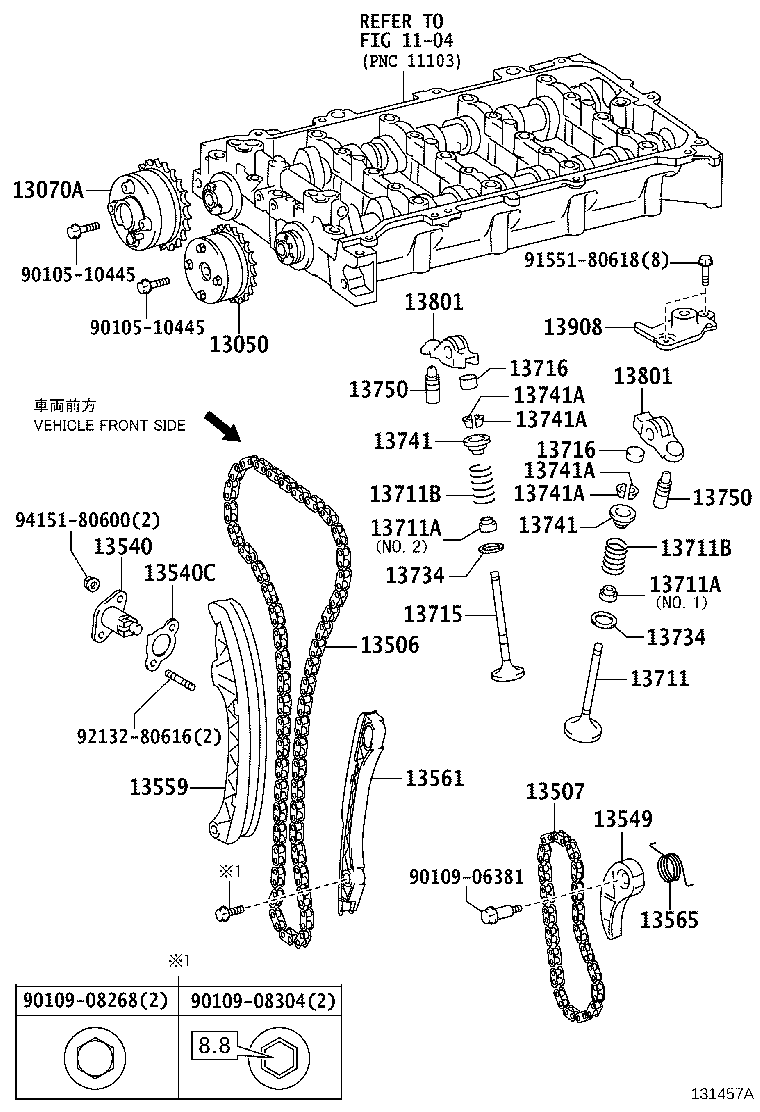

Click highlighted areas on diagram

diagram 1104 13050 13070A 13506 13507 13540 13540C 13549 13559 13561 13565 13711 13711A 13711A 13711B 13711B 13715 13716 13716 13734 13734 13741 13741 13741A 13741A 13741A 13741A 13750 13750 13801 13801 13908 9010510445 9010510445 9010906381 9010908268 9010908304 9155180618 9213280616 9415180600
Part # Description Qty Price
13506 - CHAIN SUB-ASSY
13506-37040

2ZRFAE..ZRE14#

 1
13506-37050

2ZRFAE..ZRE14#

 1
13561 - DAMPER, CHAIN VIBRATION, NO.1
13561-37010

2ZRFAE..ZRE14#

 1
13711B - SPRING, COMPRESSION(FOR INNER)
90501-31027

2ZRFAE..ZRE14#

 16
13711B - SPRING, COMPRESSION(FOR INNER)
90501-31027

2ZRFAE..ZRE14#

 16
13908 - DAMPER SUB-ASSY, VALVE ROCKER ARM LOST MOTION
13908-37012

2ZRFAE..ZRE14#

 4
Common parts
90105-10445
90109-06381
90109-08268
90109-08304
91551-80618
92132-80616
94151-80600
Linked diagrams
1104
