ZRE144-AEXGK (2008)

Toyota Corolla Axio/Fielder

Production Oct 2008 - May 2010
Engine 2ZRFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0810- )SED

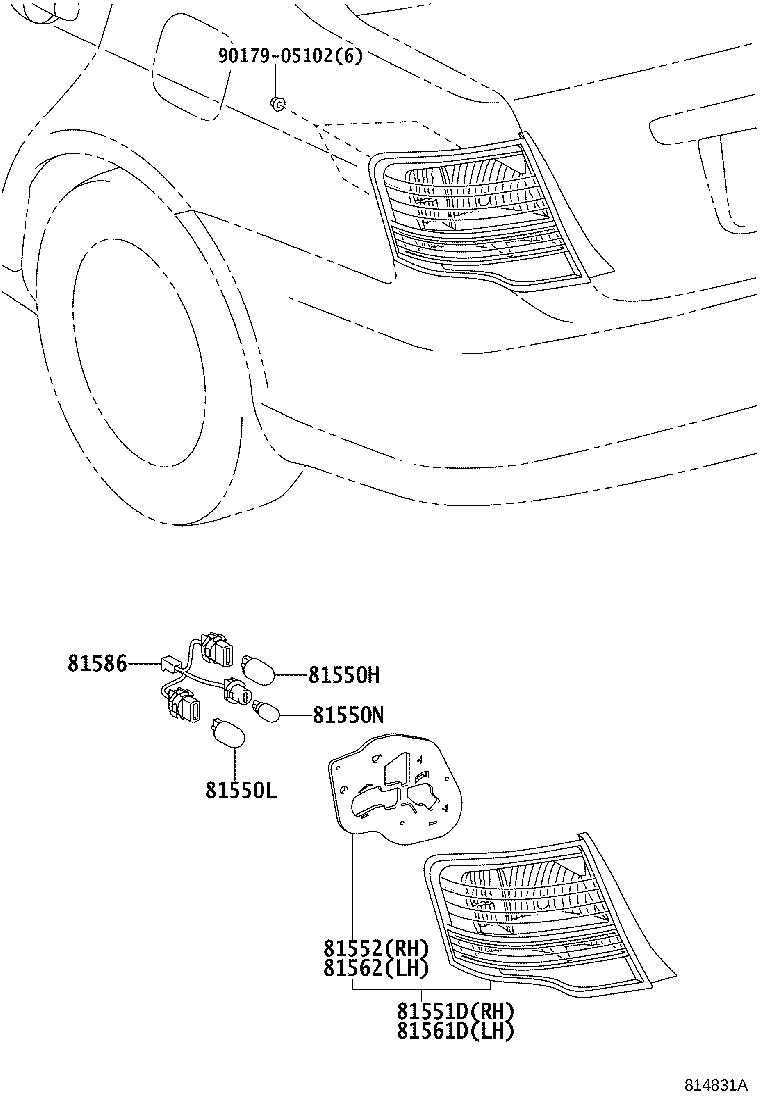

Click highlighted areas on diagram

diagram 81550H 81550L 81550N 81551D 81552 81561D 81562 81586 9017905102
Part # Description Qty Price
81550H - BULB, TAIL & STOP LAMP
90981-13044

NZE14#,ZRE14#

 2
90981-13044

NZE14#,ZRE14#..SED

 2
81550L - BULB, REAR TURN SIGNAL LAMP
90981-15021

NZE14#,ZRE14#

 2
90981-13043

NZE14#,ZRE14#..SED

 2
81550N - BULB, BACK UP LAMP
90981-11059

NZE14#,ZRE14#

 2
90981-11059

NZE14#,ZRE14#

 2
81551D - LENS & BODY, REAR COMBINATION LAMP, RH
81551-12A20

NZE14#,ZRE14#..SED

 1
81551-12B40

NZE14#,ZRE14#..SED

 1
81552 - GASKET, REAR COMBINATION LAMP LENS, RH
81552-12A20

NZE14#,ZRE14#..SED

 1
81552-12B40

NZE14#,ZRE14#..SED

 1
81561D - LENS & BODY, REAR COMBINATION LAMP, LH
81561-12B40

NZE14#,ZRE14#..SED

 1
81561-12A20

NZE14#,ZRE14#..SED

 1
81562 - GASKET, REAR COMBINATION LAMP LENS, LH
81552-12B40

NZE14#,ZRE14#..SED

 1
81552-12A20

NZE14#,ZRE14#..SED

 1
81586 - CORD, REAR LAMP
81555-12A20

NZE14#,ZRE14#..SED

 2
81555-12B40

NZE14#,ZRE14#..SED

 2
Common parts
90179-05102
